OIL TANK / AIR BOX ASSEMBLY Storm 0950782, Storm SKS 0950582, Euro Storm E (4929012901C007)

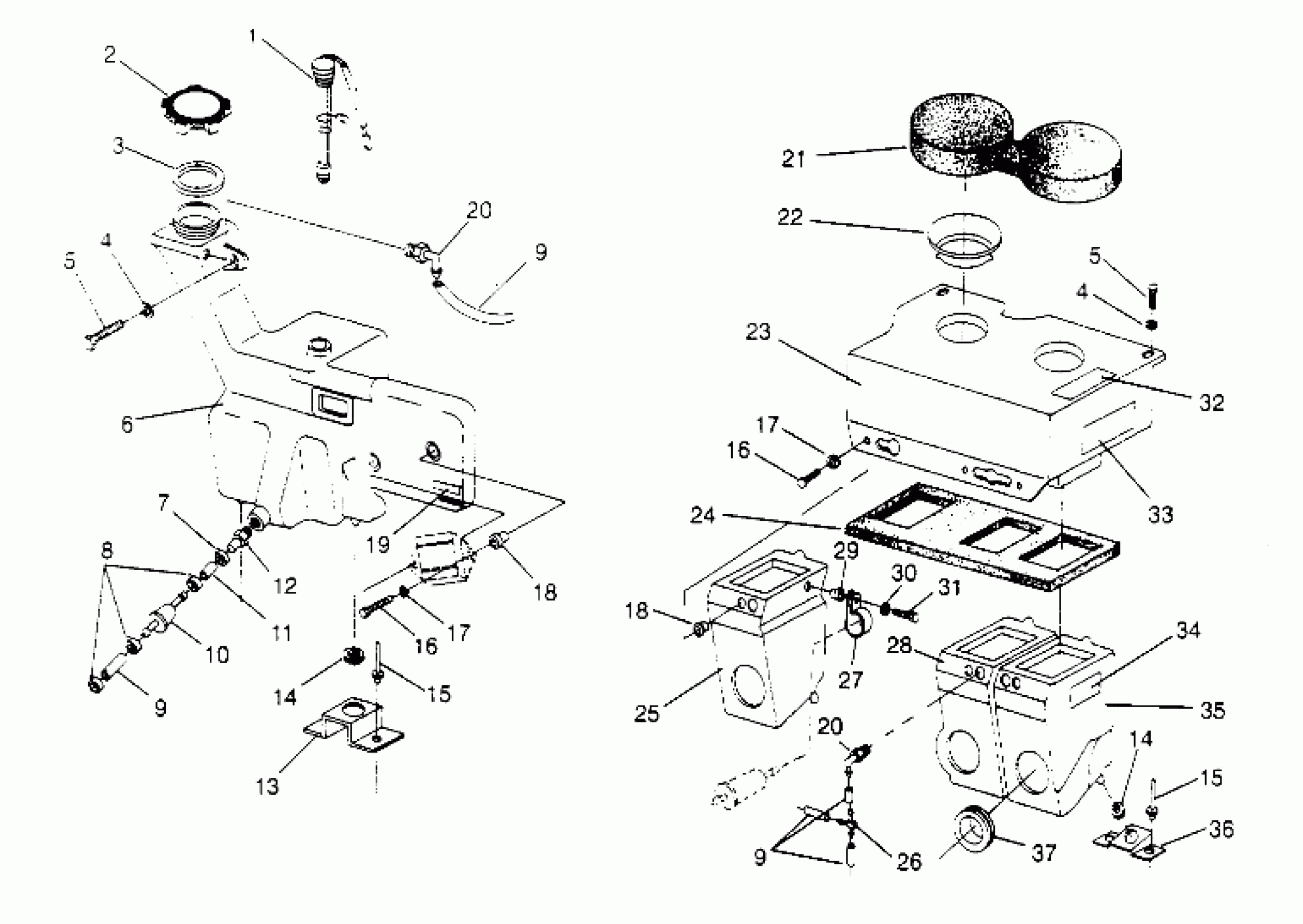

Polaris STORM - 0950782 OIL TANK / AIR BOX ASSEMBLY Storm 0950782, Storm SKS 0950582, Euro Storm E (4929012901C007) Diagram
#
1
SENSOR,OIL LEVEL
4110134
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
WASHER,WROUGHT(10)
7558302
$1.59
4
WASHER,WROUGHT(10)
7558302
$1.59
5
BOLT(10)
7512276
$4.79
5
BOLT(10)
7512276
$4.79
6
TANK,OIL,W/SEND.UNIT HOLE Substituted by 5432268
5431687
Unavailable
7
HOSE CLAMP, RED (Red)
7080003
$1.49
8
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
9
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
9
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
9
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
10
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
11
LINE,OIL,FORMED
5410902
Unavailable
12
FITTING,3/8 OUTLET
7052110
Unavailable
13
BRKT,OIL TANK
5240330
Unavailable
14
GROMMET RUBBER
5410021
Unavailable
14
GROMMET RUBBER
5410021
Unavailable
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
16
SCREW(10)
7512279
$1.49
16
SCREW(10)
7512279
$1.49
17
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
17
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
NUT-WELL(10)
7541923
$5.59
18
NUT-WELL(10)
7541923
$5.59
19
DECAL,LOW OIL LEVEL
7074664
Unavailable
20
FITTING,90 DEG,1/8,(10)
7052095
$4.79
20
FITTING,90 DEG,1/8,(10)
7052095
$4.79
21
INTAKE ASM,FOAM,W/MESH Substituted by 1253178
1253131
Unavailable
22
INLET,PLENUM
5410834
Unavailable
23
PLENUM,AIR BOX
5431922
Unavailable
24
SEAL,PLENUM
5810946
Unavailable
25
BOX,AIR,MAG.
5431919
Unavailable
26
FITTING, TEE,(10)
7052048
$3.99
27
CLAMP,CABLE,(10)
7080535
$1.59
28
BOX,AIR,CTR.
5431920
$28.76
29
NUT-WELL(10)
7541918
Unavailable
30
WASHER, LOCK(10)
7571603
Unavailable
31
SCREW(10)
7511954
$1.19
32
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
33
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
34
DECAL, GREASING [No Longer Available]
7073426
$7.27
35
BOX,AIR,PTO.
5431921
Unavailable
36
BRKT,AIR BOX
5240354
Unavailable
37
Boot
5410271
Unavailable
