HOOD ASSEMBLY Storm 0950782, Storm SKS 0950582, Euro Storm E950782, Euro S (4929012901A012)

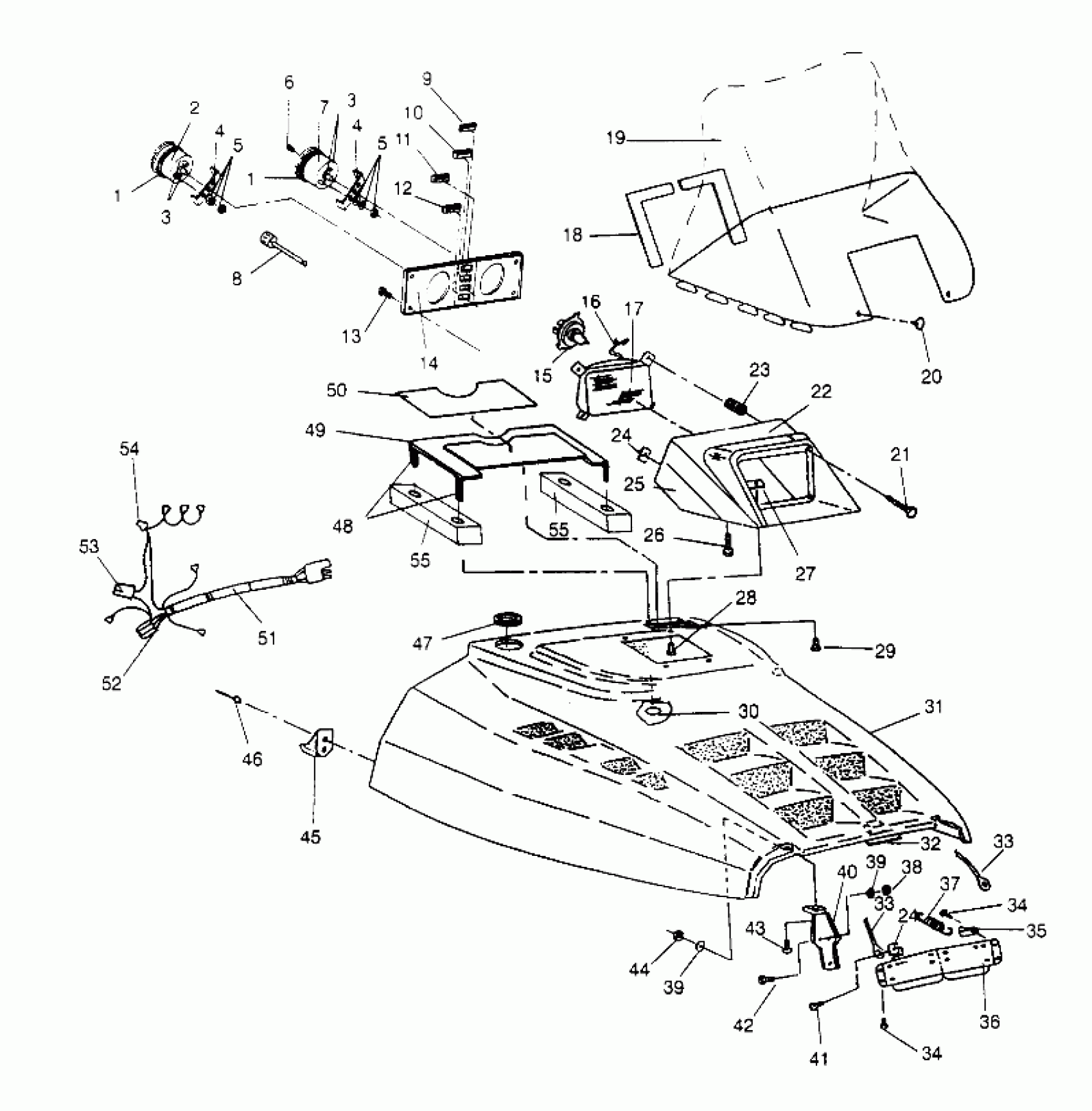

Polaris STORM - 0950782 HOOD ASSEMBLY Storm 0950782, Storm SKS 0950582, Euro Storm E950782, Euro S (4929012901A012) Diagram
#
1
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
1
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
2
TACH,3P,BACKLIT (Incl. 4, 5)
3280192
Unavailable
3
BULB TAILLIGHT(10)
4030015
$4.03
3
BULB TAILLIGHT(10)
4030015
$4.03
4
BRKT,SPEEDO/TACH
3280153
Unavailable
4
BRKT,SPEEDO/TACH
3280153
Unavailable
5
WASHER,FLAT,(10)
3280157
$2.39
5
Nut
3280158
Unavailable
5
WASHER,SPLIT LOCK
3280156
$1.49
5
WASHER,FLAT,(10)
3280157
$2.39
5
Nut
3280158
Unavailable
5
WASHER,SPLIT LOCK
3280156
$1.49
6
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
7
SPEEDO ASM,120MPH.BACKLIT (Incl. 4, 5)
3280188
Unavailable
8
CABLE,SPEEDO,W/FOIL
3280143
Unavailable
8
TAPE, FOIL (Not Shown)
5810840
Unavailable
9
INDICATOR'TEMP'WARN.
4040011
$32.37
10
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
11
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
12
INDICATOR,'ACC'WARN.
4040014
Unavailable
13
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
14
BEZEL, INST.
5430924
Unavailable
15
BULB,QUARTZ.H/L,INDY
2870448
$24.99
16
RETAINER,H/L BULB
4032063
Unavailable
17
H/L ASM,HALOGEN
4032083
Unavailable
18
PAD,W/S,LH,BLACK
5810437
Unavailable
18
PAD,W/S,RH,BLACK
5810438
$1.67
19
WINDSHIELD,SMOKE,STD(LIQ) (EURO)
5431144
$134.99
19
WINDSHIELD,LOW,BLK. (Storm)
5431447
Unavailable
20
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
21
SCREW, ADJ.(10)
4032003
Unavailable
22
HSG,INST,TOP,BLK
5430923-070
Unavailable
23
SPRING-ADJ
4032002
Unavailable
24
NUT, SPEED(10)
7670056
Unavailable
24
NUT, SPEED(10)
7670056
Unavailable
25
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
26
SCREW(10)
7512009
Unavailable
27
NUT, SPEED(10)
7670057
$1.49
28
SCREW, SEMS(10)
7512283
$3.99
29
SCREW(10)
7511877
Unavailable
30
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
31
HOOD,STORM,'94 Substituted by 2631599-177 (Incl. Foam & Foil)
2631599
Unavailable
32
SHIELD,HEAT,CTR.HD,BLK.
5240352-029
Unavailable
33
CABLE,HD.RETAINER
7080360
$24.27
33
CABLE,HD.RETAINER
7080360
$24.27
34
SCREW(10) (Storm)
7511861
Unavailable
34
SCREW(10) (SKS)
7511861
Unavailable
34
SCREW(10) (Storm)
7511861
Unavailable
34
SCREW(10) (SKS)
7511861
Unavailable
35
CLAMP, RETAINER(10)
7080372
$3.99
36
PLATE,RE-INF.,(HD.)
5222105
$49.51
37
SPRING,HOOD CABLE
7041202
Unavailable
38
NUT-LOCK(10)
7542122
$1.49
39
WASHER,WROUGHT(10)
7558302
$1.59
39
WASHER,WROUGHT(10)
7558302
$1.59
40
HINGE ASM,HD,BLK
2635005-067
$16.67
41
SCREW(10)
7511989
Unavailable
42
BOLT(10)
7512193
$2.39
43
BOLT-CARRIAGE(10)
7512263
$3.99
44
NUT, LOCK(10)
7542103
$5.59
45
CUP, HOOD LATCH,(10)
5430733
$4.84
46
RIVET(50)
7621334
$1.49
47
SHIELD,INLET,RUBBER
5410835
Unavailable
48
STAND-OFF,EXTENSION
5431685
Unavailable
49
PANEL ASM,INTAKE,MET.BLK. Substituted by 2620095-177 (Incl. 50)
2620078-177
Unavailable
50
DECAL,DASH WARNING Substituted by 7075457 (Park Brake)
7074883
Unavailable
51
HARNESS,HEADLIGHT
2460382
Unavailable
52
HOUSING
4020052
Unavailable
53
Housing
4020115
$1.59
54
HOUSING
4020114
Unavailable
55
SEAL,INTAKE
5811056
Unavailable
55
SEAL,INTAKE
5811056
Unavailable
