FRONT SUSPENSION and SKI Storm 0950782, Storm SKS 0950582, Euro Storm E950 (4929012901B003)

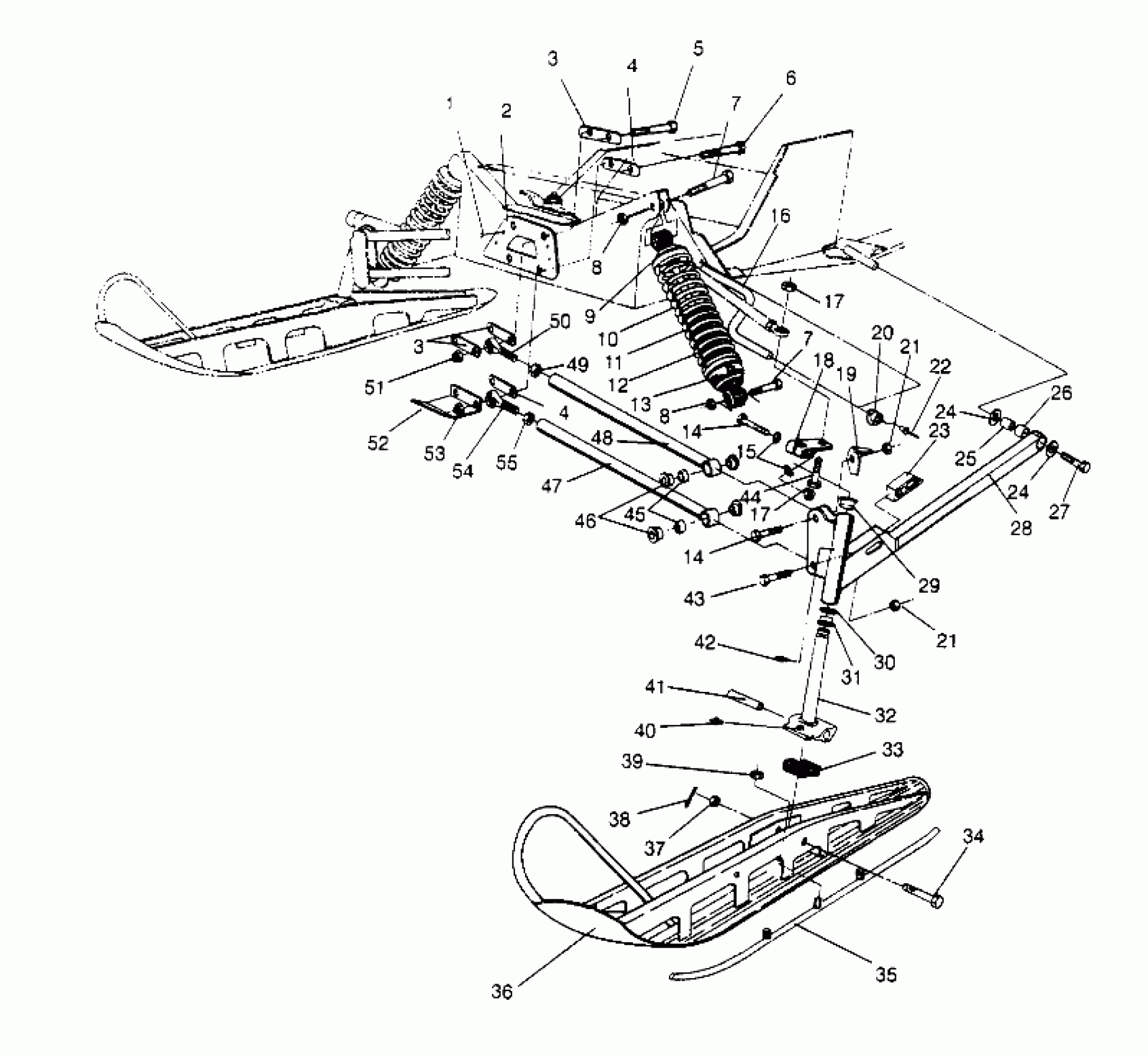

Polaris STORM - 0950782 FRONT SUSPENSION and SKI Storm 0950782, Storm SKS 0950582, Euro Storm E950 (4929012901B003) Diagram
#
1
RIVET-3/16-.090-.290
7661637
$1.49
2
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
3
STRAP,SPACER TOP
5211344
$7.27
3
STRAP,SPACER TOP
5211344
$7.27
4
STRAP,SPACER BOTTOM
5211345
$12.99
4
STRAP,SPACER BOTTOM
5211345
$12.99
5
BOLT(10)
7512551
Unavailable
6
BOLT(10)
7512656
$6.23
7
BOLT(10) Substituted by 7515415
7515515
Unavailable
7
BOLT(10) Substituted by 7515415
7515515
Unavailable
8
NUT, NYLOC(10)
7542453
Unavailable
8
NUT, NYLOC(10)
7542453
Unavailable
9
RETAINER-TOP
5220225
$10.39
10
SPRING,IFS,CHROME Substituted by 7041287-067
7041287-156
Unavailable
11
SLEEVE,SPRING PROTECTOR
5431032
$31.99
12
CAM,ADJUSTING SPRING
5630334
$32.37
13
SHOCK,GAS/CAM,IFS,ADJ. (SKS)
7041393
Unavailable
13
SHOCK,GAS,CAM/IFS,ADJ. (Storm)
7041390
$89.59
14
BOLT(10) Substituted by 7517583
7515491
Unavailable
14
BOLT(10) Substituted by 7517583
7515491
Unavailable
15
WASHER(10) Substituted by 7555832
7555851
Unavailable
16
BAR,SWAY,BLACK (SKS)
5224237-067
Unavailable
16
BAR, SWAY, (BLK.) (Storm)
5224240-067
$49.21
17
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
17
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
18
ARM,STEERING,BLK. Substituted by 1012423-067
5222873-067
Unavailable
19
STOP,STRG,RH,BLK.
5222875-067
Unavailable
19
STOP,STRG,LH,BLK.
5222874-067
Unavailable
20
BUSHING-SWAYBAR (SKS)
5410383
Unavailable
20
BUSHING,SWAYBAR (Storm)
5410386
Unavailable
21
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
21
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
22
RIVET,(50)
7621477
$1.19
23
SLIDE-SWAYBAR (SKS)
5410384
Unavailable
23
SLIDE,(FR.SUSP.) (Storm)
5410385
Unavailable
24
WASHER(10)
7555721
$1.49
24
WASHER(10)
7555721
$1.49
25
TUBE,TRAILING ARM
5010187
Unavailable
26
PIVOT-TRAILING ARM
5410382
Unavailable
27
BOLT(10)
7512557
$7.60
28
ARM,TRAIL,LH.
1822187
Unavailable
28
ARM,TRAIL,RH.
1822188
Unavailable
29
BUSHING-FLANGE
3573909
$2.39
30
WASHER SPECIAL(10)
7556509
$1.59
31
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
32
SPINDLE, BLK.
6230073-067
Unavailable
33
STOP, RUBBER
5521276
Unavailable
34
BOLT(10)
7515462
$8.79
35
SKAG,PR.,CARBIDE (Pair)
2870693
$69.99
36
SKI WELD, BLK
1820332-067
Unavailable
37
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
38
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
39
NUT-5/16-18 NYLOK-Y
7542324
$1.49
40
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
41
BUSHING,PIVOT,(10)
5010158
$19.99
42
ZERK,FITTING,THREADED(10)
7080433
$1.49
43
BOLT(10) Substituted by 7515540
7515492
$4.62
44
BOLT Substituted by 7512404
7515490
Unavailable
45
BUSHING-RADIUS ROD,(10)
5010127
$7.99
46
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
47
ROD,RAD.LOW. (SKS)
1822123-067
Unavailable
47
ROD,RAD.LOW.(STORM) (Storm)
1822102-067
Unavailable
48
ROD,RAD.UP. (SKS)
1822121-067
Unavailable
48
ROD,RAD.UPPER(STORM) (Storm)
1822099-067
$40.32
49
NUT JAM(10)
7542520
$2.39
50
ROD END, RH Substituted by 7061010
7060155
Unavailable
51
NUT, LOCK,(10)
7542503
$10.39
52
BRACE, PAN
5223997-067
Unavailable
53
NUT FLEX,(10)
7542703
Unavailable
54
ROD END,RH Substituted by 7061011
7060156
Unavailable
55
NUT-JAM(10)
7542711
$2.39
