DRIVE TRAIN ASSEMBLY Storm 0950782, Storm SKS 0950582, Euro Storm E950782, (4929012901C003)

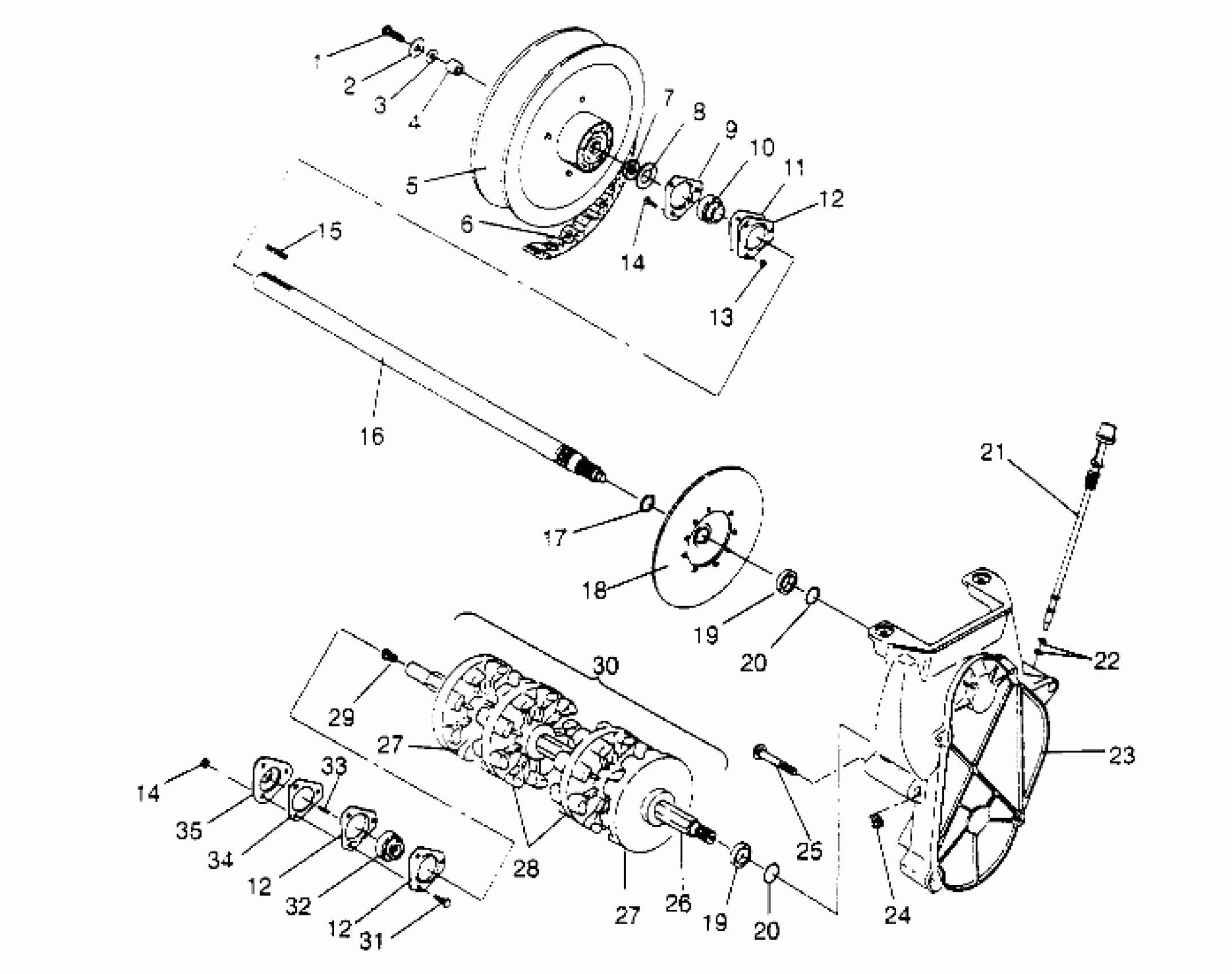

Polaris STORM - 0950782 DRIVE TRAIN ASSEMBLY Storm 0950782, Storm SKS 0950582, Euro Storm E950782, (4929012901C003) Diagram
#
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER
5020291
Unavailable
5
Asm., Driven Clutch (See Pg.C2, Ref 1)
-------
Unavailable
6
BELT, DRIVE,(5) Substituted by 3211065
3211057
$114.99
7
BUSHING(10)
7555864
$2.39
8
WASHER SPECIAL(10)
7556509
Unavailable
9
FLANGETTE,W/GREASE HOLE
5222752
$7.43
10
BEARING,1'',SHAFT
3514520
$72.22
11
GASKET,JACKSHAFT,BLK.
5811095
$2.41
12
FLANGETTE
5222751
$16.44
12
FLANGETTE
5222751
$16.44
12
FLANGETTE
5222751
$16.44
13
BOLT(10) Substituted by 7512377
7512394
Unavailable
14
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
NUT-5/16-18 NYLOK-Y
7542324
$1.49
15
KEY(10)
7721116
$12.94
16
JACKSHAFT ASM,(800) (Incl. 17)
1332162-093
Unavailable
17
RING, RETAINING(10)
7710422
$3.99
18
DISC ASM, BRAKE
1910086
Unavailable
19
SLEEVE, SEAL
5020588
$23.99
19
SLEEVE, SEAL
5020588
$23.99
20
O RING,(10)
5410613
$1.99
20
O RING,(10)
5410613
$1.99
21
DIPSTICK Substituted by 1332143
5431419
Unavailable
22
O-RING
5410675
$1.60
23
Chaincase, Top Mount Brake (See Pg. A21, Ref. 23)
-------
Unavailable
24
NUT(10)
7542423
$3.99
25
BOLT(10)
7515428
$4.79
26
DRIVE SHAFT Substituted by 6230083
6230067
Unavailable
27
SPROCKET, HALF,9T (1 Side)
5430993
Unavailable
27
SPROCKET, 8T (PT) (1 Side)
5431836
$11.29
27
SPROCKET, HALF,9T (1 Side)
5430993
Unavailable
27
SPROCKET, 8T (PT) (1 Side)
5431836
$11.29
28
SPROCKET, 9T
5430571
Unavailable
28
SPROCKET,8T (PT)
5431770
Unavailable
29
BUSHING METAL SPEEDO
3280019
$11.99
30
DRIVESHAFT ASM. Substituted by 1590245 (Incl. 26-29)
1590229
Unavailable
30
DRIVESHAFT ASM,8T (Incl. 26-29) (PT)
1590240
Unavailable
31
BOLT(10)
7512331
$3.99
32
BEARING
3514517
Unavailable
33
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
34
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
35
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
35
ADAPTER,DRIVE,W/ZERK (PT)
3280197
$93.08
