CYLINDER and MANIFOLD ASSEMBLY Storm 0950782, Storm SKS 0950582, Euro Stor (4929012901C009)

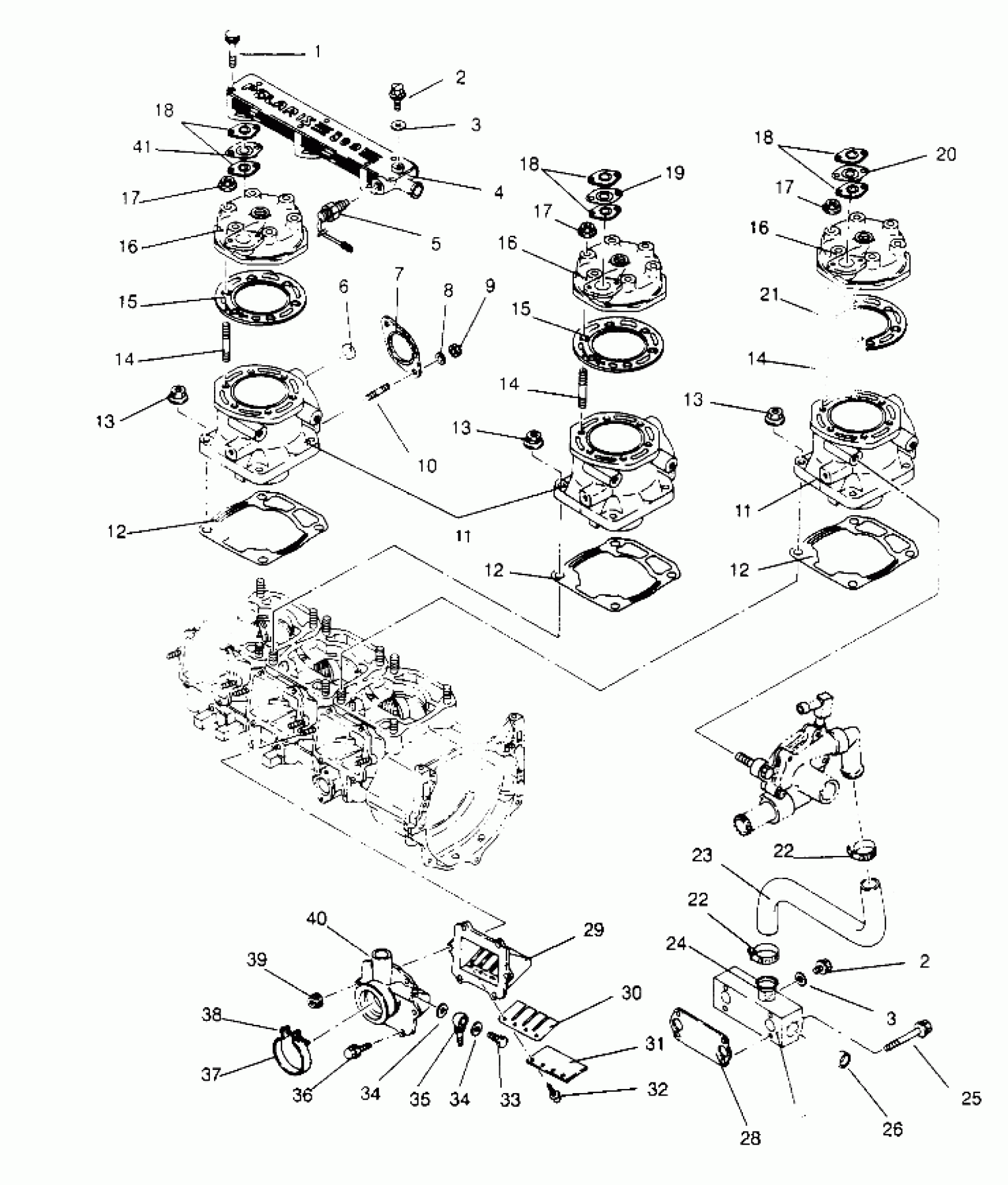

Polaris STORM - 0950782 CYLINDER and MANIFOLD ASSEMBLY Storm 0950782, Storm SKS 0950582, Euro Stor (4929012901C009) Diagram
#
1
BOLT&WASHER
3083729
$3.49
2
PLUG, AIR VENT Substituted by 7517266
3083350
Unavailable
2
PLUG, AIR VENT Substituted by 7517266
3083350
Unavailable
3
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
3
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
4
OUTLET,WATER MANIFOLD
3085066
$149.99
5
SWITCH,THERMO. (93
3084651
Unavailable
6
PLUG
3084428
$3.51
7
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
8
WASHER LOCK ,(10)
3080530
$3.19
9
NUT(10)
3080285
Unavailable
10
STUD (10)
3080016
$5.75
11
CYLINDER (Incl. 6, 10, 14)
3085064
$539.99
11
CYLINDER (Incl. 6, 10, 14)
3085064
$539.99
12
GASKET, CYLINDER
3084525
Unavailable
12
GASKET, CYLINDER
3084525
Unavailable
12
GASKET, CYLINDER
3084525
Unavailable
13
NUT-FLANGE(10)
3082911
$1.99
13
NUT-FLANGE(10)
3082911
$1.99
13
NUT-FLANGE(10)
3082911
$1.99
14
STUD
3084645
$6.63
14
STUD
3084645
$6.63
14
STUD
3084645
$6.63
15
GASKET 1,HEAD
3084648
$23.99
15
GASKET 1,HEAD
3084648
$23.99
16
HEAD,CYLINDER Substituted by 3084647
3085065
Unavailable
16
HEAD,CYLINDER Substituted by 3084647
3085065
Unavailable
16
HEAD,CYLINDER Substituted by 3084647
3085065
Unavailable
17
NUT-FLANGE(10)
3082910
$2.39
17
NUT-FLANGE(10)
3082910
$2.39
17
NUT-FLANGE(10)
3082910
$2.39
18
GASKET,(O.W.M.) (O.W.M.)
3084688
Unavailable
18
GASKET,(O.W.M.) (O.W.M.)
3084688
Unavailable
18
GASKET,(O.W.M.) (O.W.M.)
3084688
Unavailable
19
PLATE 2,(O.W.M.) (Incl. 18)
3084654
Unavailable
20
PLATE 1,(O.W.M.) (Incl. 18)
3084653
Unavailable
21
GASKET 2,HEAD
3084649
$39.19
22
CLAMP, HOSE
3083394
Unavailable
22
CLAMP, HOSE
3083394
Unavailable
23
HOSE, MAIN
3084665
Unavailable
24
PIPE 3,WATER
3084530
Unavailable
25
BOLT(10)
3082030
$3.97
26
PLUG,CYL.HEAD
3084529
Unavailable
28
GASKET,WATER MANI.INLET
3084531
$0.75
29
VALVE ASM,REED (Incl. 30-32)
3084536
$95.19
30
VALVE, REED
3084563
$19.83
31
Stopper
3084564
$19.03
32
SCREW, REED
3084565
$3.29
33
BOLT-BANJO
3083137
Unavailable
34
WASHER(10) Substituted by 7555998
3083138
Unavailable
34
WASHER(10) Substituted by 7555998
3083138
Unavailable
35
VALVE, CHECK
3083894
Unavailable
36
Bolt, Flange
3084126
Unavailable
37
BAND ASM. (Incl. 38)
3083166
$19.84
38
SCREW,(10)
3081497
$2.39
39
NUT, FLANGE(10)
3083856
$2.39
40
ADAPTER, COMPL.
3084652
Unavailable
41
PLATE 3,(O.W.M.) (Incl. 18)
3084655
Unavailable
