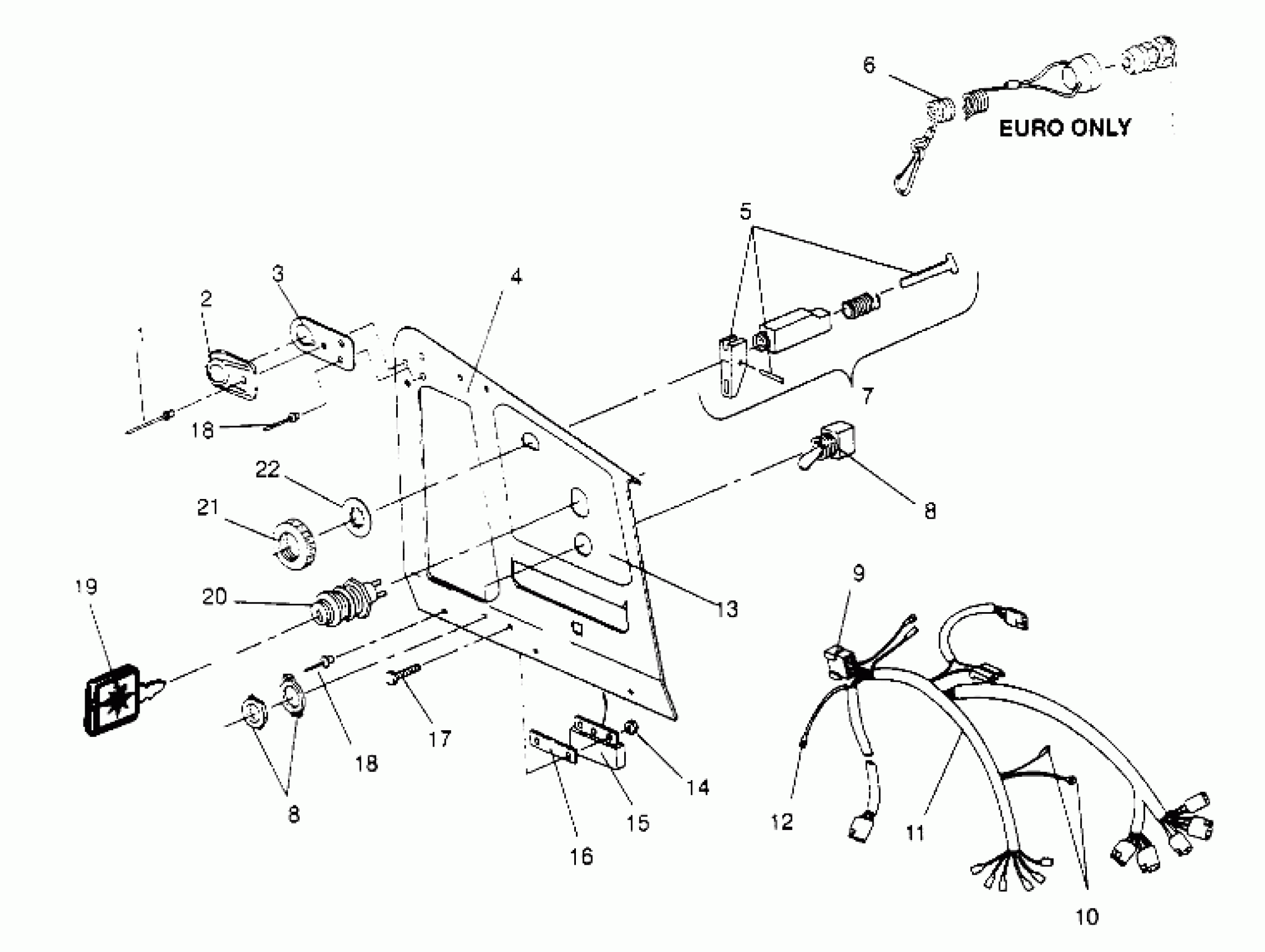

Polaris STORM - 0950782 CONSOLE Storm 0950782, Storm SKS 0950582, Euro Storm E950782, Euro Storm S (4929012901C004) Diagram

RIVET,(50)

7621477

$1.19

GUIDE, RECOIL

5431385

$10.51

BRKT,ROPE GUIDE,BLK.

5222682-067

Unavailable

CONSOLE

5222756-067

Unavailable

CONSOLE,BLK,(SCAND) (Euro SKS)

5222758-067

$53.59

KIT-CHOKE CONTROL

2200188

$24.27

SWITCH,TETHER Substituted by 2870668 (Euro Only)

4110156

$84.99

CABLE, CHOKE

7080283

$109.99

SW,HEATER,HI-LOW

4110077

Unavailable

SW,HEATER,HI-LOW

4110077

Unavailable

Housing w/Receptacle

4020057

$3.51

Housing

4020153

$1.49

HARNESS, MAIN WIRE

2460372

Unavailable

HARNESS,MAIN WIRE (Euro)

2460446

$133.99

HOUSING

4020133

Unavailable

DECAL, CONSOLE [No Longer Available]

7073075

Unavailable

NUT(10)

7541925

$1.49

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

SPACER,REGULATOR

5211573

Unavailable

BOLT(10)

7512031

$2.23

RIVET,INTERLOCK,B(50)

7661638

$1.49

RIVET,INTERLOCK,B(50)

7661638

$1.49

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote)

5410611

Unavailable

KIT,IGN. SWITCH (Incl. 19)

2200357

Unavailable

Nut

7080229

$19.99

WASHER-LOCK(10) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code

7571610

$3.99
