CARBURETOR ASSEMBLY Storm 0950782, Storm SKS 0950582, Euro Storm E950782, (4929012901C014)

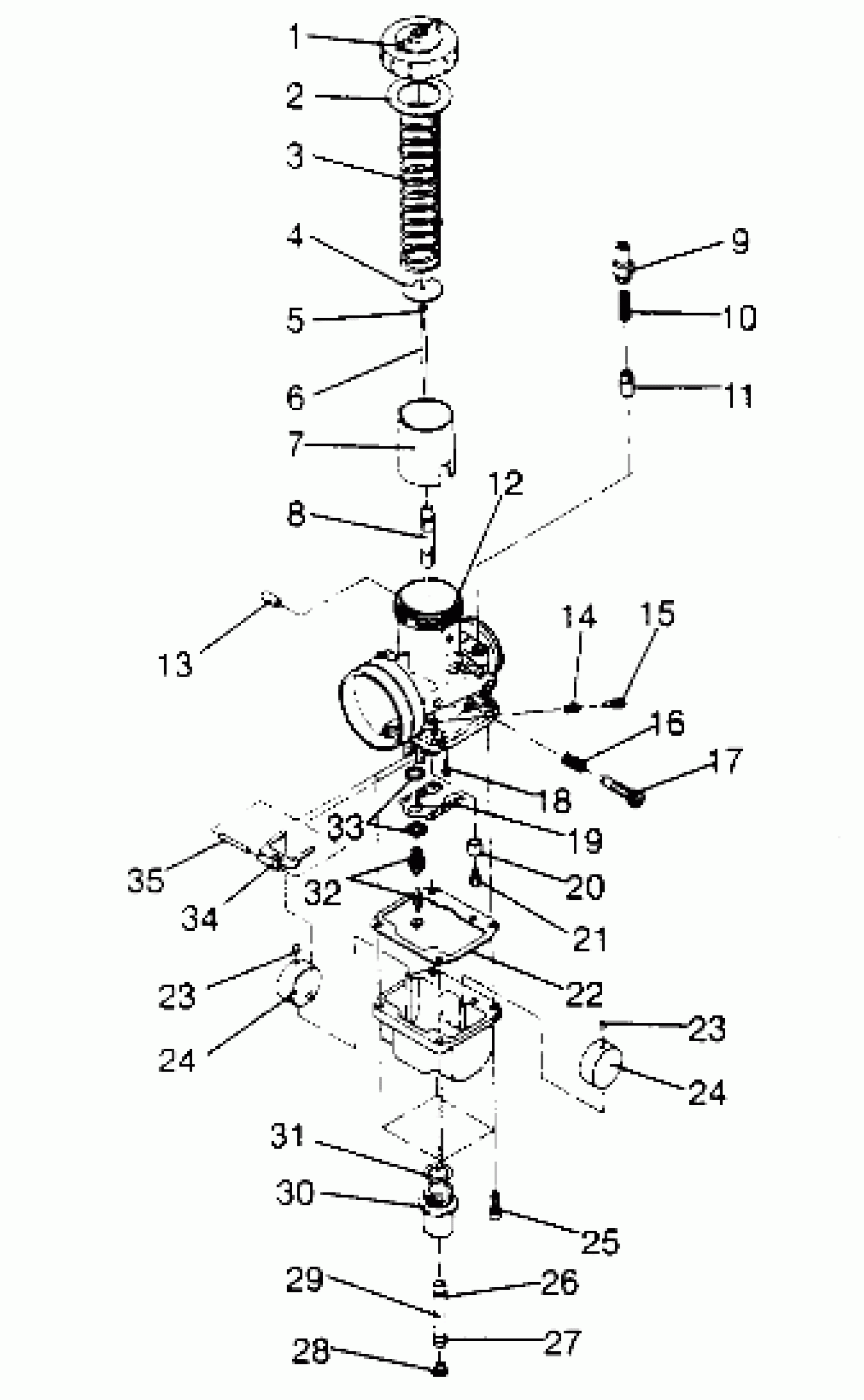

Polaris STORM - 0950782 CARBURETOR ASSEMBLY Storm 0950782, Storm SKS 0950582, Euro Storm E950782, (4929012901C014) Diagram
#
1
TOP (Incl. 2)
3130061
Unavailable
2
GASKET
-------
Unavailable
3
SPRING,THROTTLE
3130444
Unavailable
4
PLATE, THROTTLE
3130054
$6.46
5
E RING(10) Substituted by 3130508
3130003
Unavailable
6
JET NEEDLE(J8-6CGY03) (6CGY3-3)
3130484
Unavailable
7
VALVE,THROTTLE,(3.0) (3.0)
3130352
Unavailable
8
JET,NEEDLE,(Q-0) (Q-O) 247
3130414
Unavailable
9
HOLDER,GUIDE
3130199
$28.32
10
SPRING,PLUNGER
3130006
$8.89
11
PLUNGER ASM, STARTER
3130328
$32.37
12
CARBURETOR ASM #1 (Incl. 1-25, 30-35)
3130597
$243.59
12
CARBURETOR ASM #2 (Incl. 1-25, 30-35)
3130600
$298.99
12
CARBURETOR ASM #3 (Incl. 1-25, 30-35)
3130601
$243.59
13
CAP
3130479
$14.56
14
SPRING,AIR ADJUST
3130012
$8.89
15
SCREW,AIR
3130011
$19.99
16
SPRING,THROTTLE ADJ.
3130010
$8.89
17
SCREW,THROTTLE STOP
3130009
$19.99
18
JET,PILOT,#45(10) (#45)
3130068
$8.89
19
PLATE
3130243
Unavailable
20
RING,CARB
3130232
Unavailable
21
JET,MAIN,#410(10) (#410) (1)
3130599
$7.27
21
JET,MAIN,HX.HD#380(10) (#380) (2)
3130140
$7.27
21
MAIN JET-H.H.#370(10) (#370) (3)
3130290
Unavailable
22
GASKET,FLOAT CHAMBER
3130236
$12.13
23
CAP,(10)
3130237
$4.03
23
CAP,(10)
3130237
$4.03
24
FLOAT ASM
3130021
$40.46
24
FLOAT ASM
3130021
$40.46
25
SCREW
3130056
$3.19
26
CLAMP,SPRING,(10)
7080534
$1.59
27
CLAMP,HOSE(10)
7080544
Unavailable
28
PLUG,TRAP
5431893
$12.94
29
DESC NOT_AVAILABLE
8450045-600
Unavailable
30
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
31
O RING
3130239
Unavailable
32
NEEDLE VALVE ASM. (1.5)
3130598
Unavailable
33
WASHER(10)
3130047
$4.84
34
ARM,FLOAT
3130048
Unavailable
35
PIN, FLOAT Note: All qty's. are per Carb.
3130361
$8.89
