TUNNEL ASSEMBLY Storm 0940782 and Storm SKS 0940582 (4925032503001A)

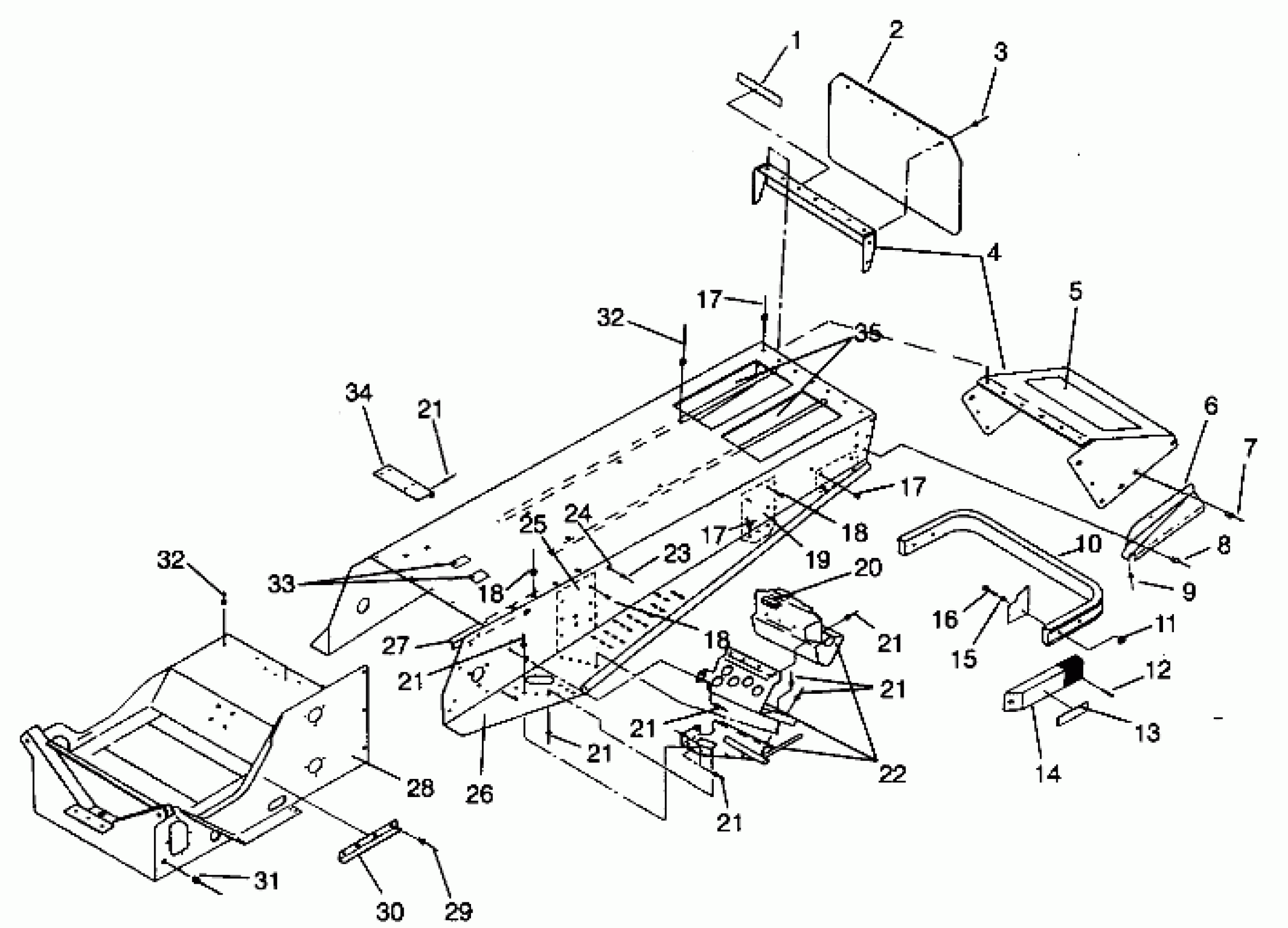

Polaris STORM - 0940782 TUNNEL ASSEMBLY Storm 0940782 and Storm SKS 0940582 (4925032503001A) Diagram
#
1
DECAL,TRACK/SEAT(CPSC) (Silver)
7074255
Unavailable
2
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
3
POP RIVET(50)
7621418
$1.49
4
PANEL,TUNNEL-BACK,BLK. (Storm)
5240599-067
Unavailable
4
CLOSE-OFF ASM,REAR,BLK. Substituted by 1012232-067 (SKS)
1011694-067
Unavailable
5
DECAL,CLOSE-OFF(STORM SKS) [No Longer Available] (SKS)
7074104
Unavailable
6
SKIRT,LH,SNOW,BLK. (SKS Only)
5431627-070
$26.98
6
SKIRT,RH,SNOW,BLK. (SKS Only)
5431645-070
$31.35
7
RIVET(50) (SKS Only)
7621472
$1.49
8
RIVET,3/16X.402(50) (SKS Only)
7621432
$1.49
9
DESC NOT_AVAILABLE
7661336
Unavailable
10
BUMPER,REAR,BLK. (Storm)
5224334-067
Unavailable
10
BUMPER,R.SKS EFI (SKS)
5224349-067
Unavailable
11
NUT-LOCK(10)
7542122
$1.49
12
SCREW(10)
7511863
$1.99
13
REFLECTOR RED
2670070
$9.91
14
CAP, BUMPER, BLK.
5430930-070
Unavailable
15
WASHER(10)
7558301
$1.49
16
BOLT(10)
7512240
$3.99
17
RIVET ,(50)
7661829
Unavailable
17
RIVET ,(50)
7661829
Unavailable
17
RIVET ,(50)
7661829
Unavailable
18
RIVET,(50)
7661825
$1.49
18
RIVET,(50)
7661825
$1.49
18
RIVET,(50)
7661825
$1.49
19
BRKT,RH.REAR SUSP. (SKS)
1011906-067
Unavailable
19
BRKT,LH.REAR SUSP (SKS)
1011905-067
Unavailable
19
BRKT,RH,R.SUSP. (Storm)
1011858-067
Unavailable
19
BRKT,LH,R.SUSP (Storm)
1011857-067
Unavailable
20
EXTRUSION,CLUTCHGUARD
5521238
$6.46
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
22
FOOTREST ASM, LH
1011861
Unavailable
22
FOOTREST ASM,RH,BLK.
1011892
Unavailable
23
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
24
SNAP-MALE(10)
7080227
Unavailable
25
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
26
TUNNEL,BLK,STORM (Storm) (Incl. 4, 19, 25, 27)
1012039
$366.65
26
TUNNEL,BLK,SKS (SKS) (Incl. 4, 19, 25, 27)
1011994
$366.65
27
BRACE,TUNNEL REINF. Substituted by 5240242
5240265
Unavailable
28
BULKHEAD
1011996-067
Unavailable
29
RIVET(50)
7621452
$1.49
30
GUARD,ADAPTER GUIDE
5222857
$12.94
31
PLUG, HOLE(10)
7080512
$2.63
32
RIVET-3/16-.090-.290
7661637
$1.49
32
RIVET-3/16-.090-.290
7661637
$1.49
33
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
34
BRKT, TOOL BOX
5220973
Unavailable
35
STRIP-WEAR
5510130
Unavailable
