SUSPENSION ASSEMBLY Storm 0942770 and Storm SKS 0942570 (4925032503019A)

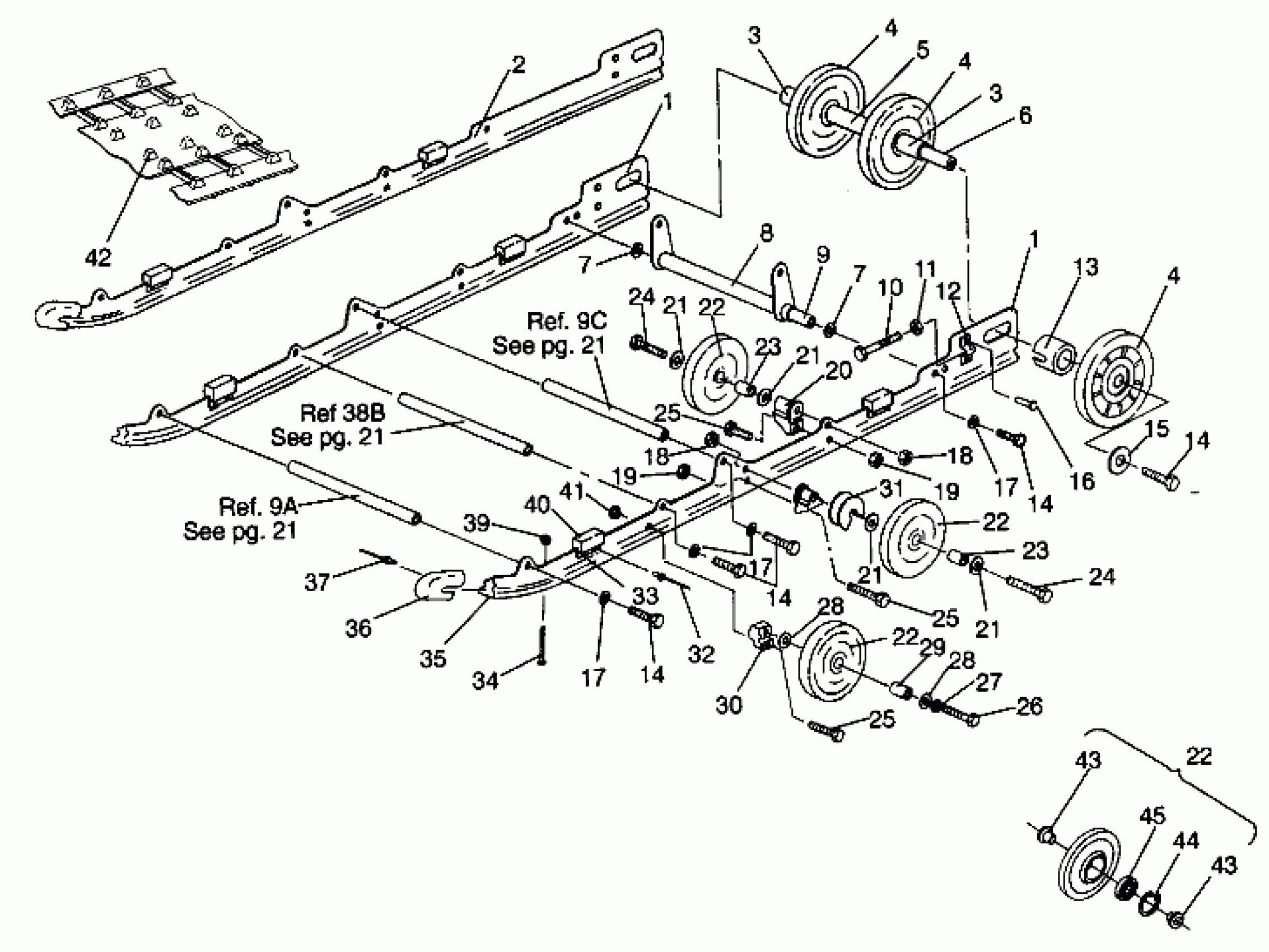

Polaris STORM - 0940782 SUSPENSION ASSEMBLY Storm 0942770 and Storm SKS 0942570 (4925032503019A) Diagram
#
1
RAIL ASM, RH. (Incl.12,33,36,40) (Storm)
1540796
$263.99
1
RAIL ASM, LH. (Incl.12,33,36,40) (Storm)
1540795
Unavailable
1
RAIL ASM, RH. (Incl.12,33,36,40) (Storm)
1540796
$263.99
1
RAIL ASM, LH. (Incl.12,33,36,40) (Storm)
1540795
Unavailable
2
RAIL ASM,LH,(SKS,XC-100) (Incl.12,33,36,40) (SKS)
1540802
Unavailable
2
RAIL ASM,RH,(SKS,XC-100) (Incl.12,33,36,40) (SKS)
1540803
$319.99
3
SPACER INNER IDLER
5010169
Unavailable
3
SPACER INNER IDLER
5010169
Unavailable
4
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
5
SPACER CTR IDLER
5010168
Unavailable
6
SHAFT,IDLER
5020722
Unavailable
7
MACHINERY BUSHING(10)
7556301
$3.19
7
MACHINERY BUSHING(10)
7556301
$3.19
8
ARM, REAR PIVOT
1540677-067
Unavailable
9
SHAFT,PIVOT ARM
5020723
$29.99
10
BOLT, ADJUSTER(10)
7515455
$29.99
11
NUT(10)
7542440
Unavailable
12
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
13
SPACER-IDLER-OUTER
5332641
Unavailable
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
15
WASHER(10) Substituted by 7556130
7571629
Unavailable
16
RIVET,(50)
7621501
$2.39
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
18
NUT, NYLOCK(10)
7542525
$4.79
18
NUT, NYLOCK(10)
7542525
$4.79
19
NUT-LOCK(10)
7542439
$1.49
19
NUT-LOCK(10)
7542439
$1.49
20
SPACER
5630399
$11.99
21
WASHER, FLAT(10)
7555852
$2.39
21
WASHER, FLAT(10)
7555852
$2.39
21
WASHER, FLAT(10)
7555852
$2.39
21
WASHER, FLAT(10)
7555852
$2.39
22
WHEEL, IDLER (Incl. 43-45)
1543018
$56.65
22
WHEEL, IDLER (Incl. 43-45)
1543018
$56.65
22
WHEEL, IDLER (Incl. 43-45)
1543018
$56.65
22
WHEEL, IDLER (Incl. 43-45)
1543018
$56.65
23
SPACER, WHEEL
5333116
$7.99
23
SPACER, WHEEL
5333116
$7.99
24
BOLT(10)
7512538
$6.39
24
BOLT(10)
7512538
$6.39
25
BOLT(10)
7512404
$3.99
25
BOLT(10)
7512404
$3.99
25
BOLT(10)
7512404
$3.99
26
BOLT(10)
7512659
$7.99
27
LOCK WASHER(10)
7553201
$3.99
28
WASHER(10)
7555804
$3.99
28
WASHER(10)
7555804
$3.99
29
SPACER
5332786
$7.99
30
BRACKET,BOGIE WHEEL
5130570
$48.56
31
ROLLER, SPRING
5431366
$10.51
32
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
33
REINF., BUMPER
5222629
$13.75
34
SCREW(10)
7512227
$3.19
35
SLIDER,WIDE,BLK.(2)
5521275
Unavailable
36
COVER-RAIL TIP
5430627
$32.37
37
RIVET(50)
7621435
$1.49
39
NUT-LOCK(10)
7542122
$1.49
40
BUMPER, RAIL
5810554
$7.27
41
NUT LOCK(10)
7542403
$3.99
42
TRACK,(STORM SKS) (SKS)
5410744
Unavailable
42
TRACK,121",DEEP PROFILE (Storm)
5410805
Unavailable
43
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
43
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
44
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
45
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
