STEERING ASSEMBLY Storm 0940782 and Storm SKS 0940582 (4925032503014A)

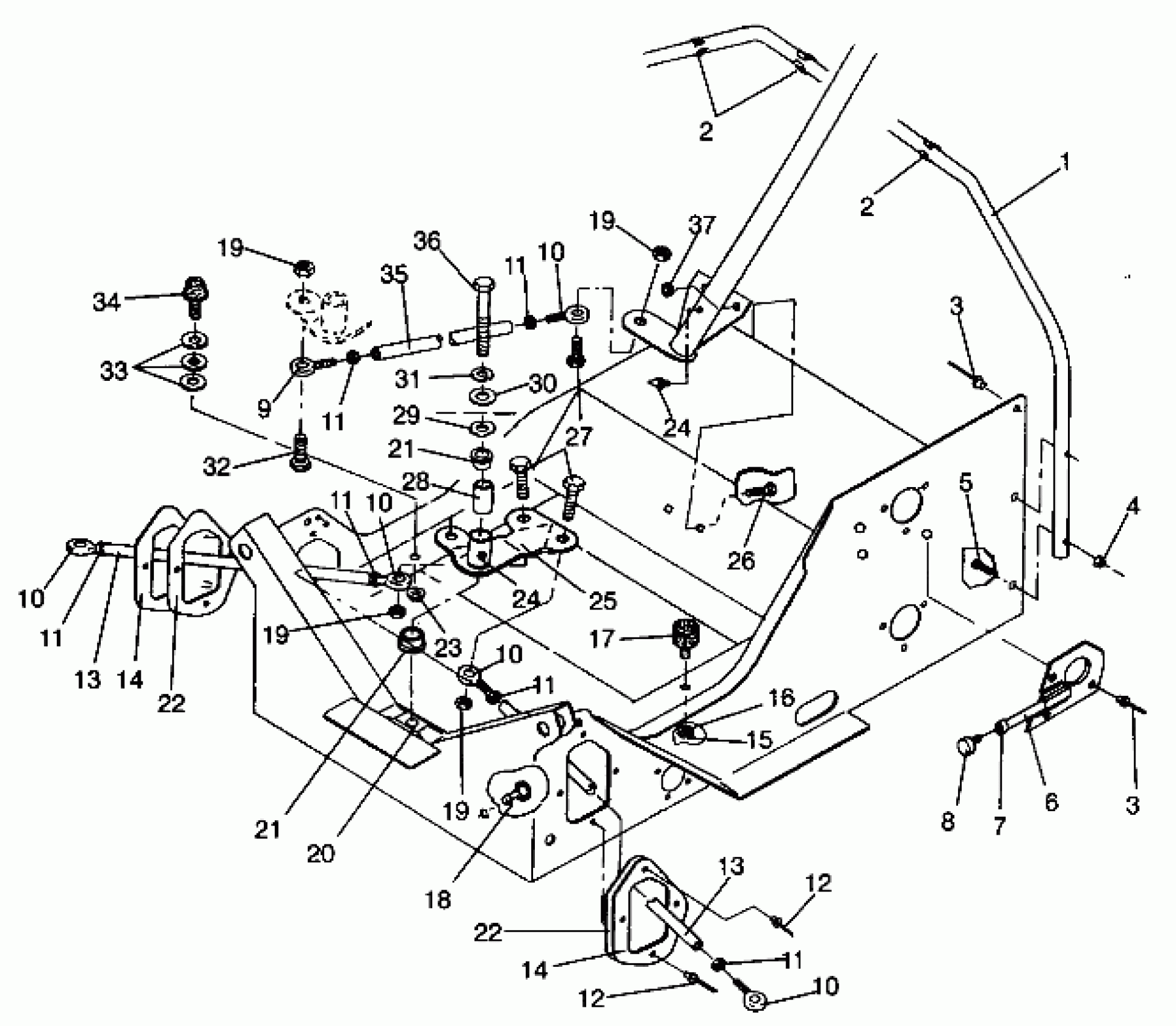

Polaris STORM - 0940782 STEERING ASSEMBLY Storm 0940782 and Storm SKS 0940582 (4925032503014A) Diagram
#
1
DESC NOT_AVAILABLE
1011998
Unavailable
2
CLIP(10)
7080278
$2.63
2
CLIP(10)
7080278
$2.63
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
4
NUT-LOCK(10)
7542122
$1.49
5
BOLT-CARRIAGE(10)
7512275
$3.99
6
LIMITER,TORQUE,PTO
1011997-067
Unavailable
7
NUT, JAM(10)
7542432
$3.99
8
STOP,RUBBER,TORQUE
3110037
Unavailable
9
ROD END,LH Substituted by 7060164
7060124
$48.56
10
ROD END, LH Substituted by 7060166
7060151
$48.56
10
ROD END, RH Substituted by 7060167
7060152
$48.56
10
ROD END, LH Substituted by 7060166
7060151
$48.56
10
ROD END, RH Substituted by 7060167
7060152
$48.56
10
ROD END, LH Substituted by 7060166
7060151
$48.56
10
ROD END, RH Substituted by 7060167
7060152
$48.56
10
ROD END, LH Substituted by 7060166
7060151
$48.56
10
ROD END, RH Substituted by 7060167
7060152
$48.56
10
ROD END, LH Substituted by 7060166
7060151
$48.56
10
ROD END, RH Substituted by 7060167
7060152
$48.56
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
12
POP RIVET(50)
7621303
Unavailable
12
POP RIVET(50)
7621303
Unavailable
13
ROD,TIE,BLACK (SKS)
5332713-067
Unavailable
13
TIEROD (Storm)
5020636-067
Unavailable
13
ROD,TIE,BLACK (SKS)
5332713-067
Unavailable
13
TIEROD (Storm)
5020636-067
Unavailable
14
PLATE,RH,BOOT SEAL
5210904
Unavailable
14
PLATE,RH,BOOT SEAL
5210904
Unavailable
15
NUT(10)
7546803
Unavailable
16
LOCK WASHER(10)
7552901
$1.49
17
DAMPENER,RUBBER ENG.8M
3110035
Unavailable
18
CLIP, PLASTIC(10)
4020139
$4.79
19
NUT LOCK(10)
7542403
$3.99
19
NUT LOCK(10)
7542403
$3.99
19
NUT LOCK(10)
7542403
$3.99
19
NUT LOCK(10)
7542403
$3.99
20
BLOCK, CTR.STRG.
5130889
$139.68
21
BUSHING
3563907
$3.99
21
BUSHING
3563907
$3.99
22
BOOT-TIE ROD
5410328
Unavailable
22
BOOT-TIE ROD
5410328
Unavailable
23
NUT(10)
7542323
$1.99
24
FITTING-LUBRICATION 1/4-28
7080424
$4.79
24
FITTING-LUBRICATION 1/4-28
7080424
$4.79
25
STEERING WELD,CTR.
1822106-067
$131.99
26
BOLT(10) Substituted by 7512377
7512394
Unavailable
27
BOLT(10) Substituted by 7515492
7512410
Unavailable
28
BUSHING, SPACER
5010282
$8.73
29
WASHER,WAVE(10)
7555735
$3.99
30
WASHER(10)
7555721
$1.49
31
LOCK WASHER(10)
7553201
$3.99
32
BOLT(10)
7512404
$3.99
33
WASHER(10)
7555716
$1.59
34
DAMPENER,RUBBER ENG.5/16
3110036
Unavailable
35
ROD, DRAG, LINK
5333144
Unavailable
36
BOLT(10)
7512679
Unavailable
37
NUT-5/16-18 NYLOK-Y
7542324
$1.49
