SEAT and GAS TANK ASSEMBLY Storm 0940782 and Storm SKS 0940582 (4925032503002A)

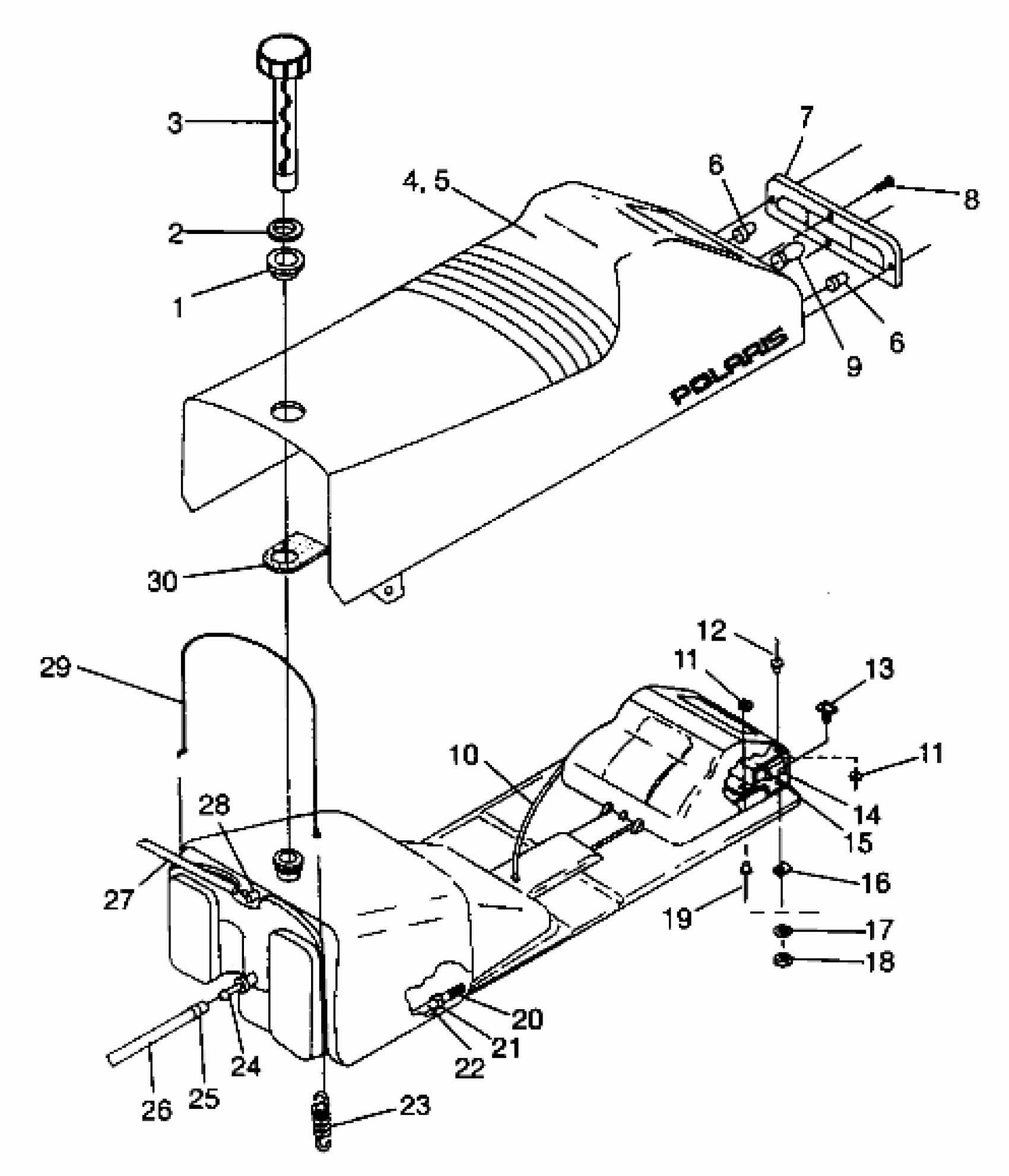

Polaris STORM - 0940782 SEAT and GAS TANK ASSEMBLY Storm 0940782 and Storm SKS 0940582 (4925032503002A) Diagram
#
Description
Price
1
GROMMET,FUELTANK
5410842
Unavailable
2
GASKET, GAS CAP
5810513
$8.89
3
CAP,FUEL W/GAUGE Substituted by 2511248
2511227
$44.51
4
SEAT,(STORM,94) (Incl. 6-10, 13, 14, 20-22, 24, 28, 29) (Storm)
2681691
Unavailable
4
SEAT ASM,(STORM'94) (Incl. 6-10, 13, 14, 20-22, 24, 28, 29) (SKS)
2681693
Unavailable
5
COVER,SEAT(94 STORM) (Storm)
2681692
Unavailable
5
COVER,SEAT(94 STORM SKS) (SKS)
2681694
Unavailable
6
BULB,TAILLIGHT(10)
4030024
$4.84
6
BULB,TAILLIGHT(10)
4030024
$4.84
7
LENS,TAILLIGHT
5430423
Unavailable
8
SCREW(10)
7511840
Unavailable
9
Bulb, Brakelight
4030045
Unavailable
10
HARNESS,TAILLIGHT
2460398
Unavailable
11
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
11
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
12
RIVET, BLIND(50)
7621467
$1.49
13
MOUNT, REAR SEAT
1011855
Unavailable
14
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
15
COVER,T/L PROTECTOR
5431436
$21.43
16
SPEED NUT(10)
7670021
$6.99
17
WASHER(10)
7558301
$1.49
18
NUT-LOCK(10)
7542122
$1.49
19
RIVET(50)
7621460
$1.49
20
FUELPICKUP,W/STRAINER
7052037
$12.94
21
RING, COMPRESSION(10)
7080402
$1.60
22
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
23
SPRING-EXHAUST(10)
7042029
$4.84
24
FITTING - OUTLET(10)
7052023
$24.99
25
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
26
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
27
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
28
FITTING,(10)
7052077
$6.39
29
CABLE,TANK RETENTION
7080473
Unavailable
30
FOAM, FILLER
5810201
Unavailable
