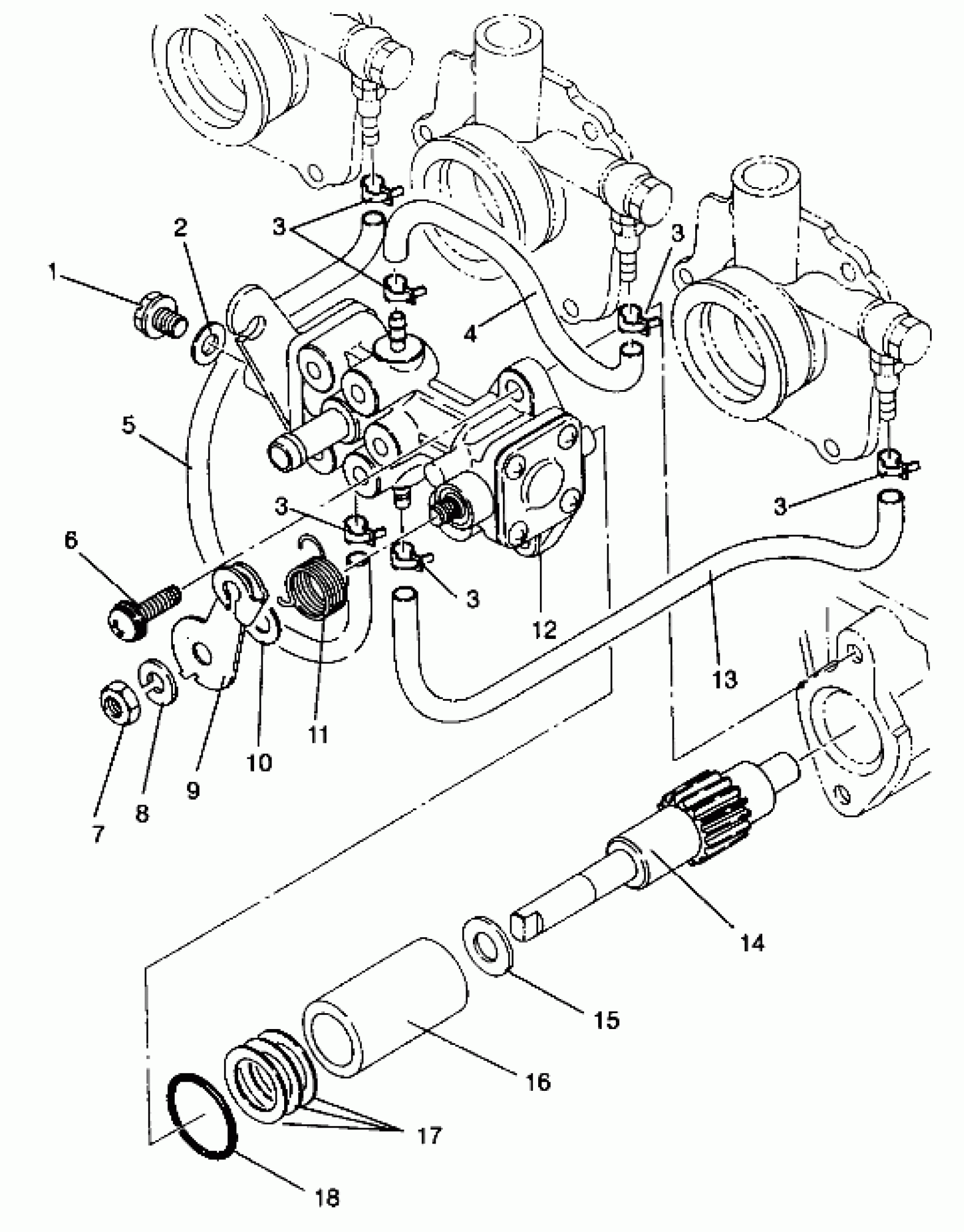

Polaris STORM - 0940782 OIL PUMP ASSEMBLY Storm 0940782 and Storm SKS 0940582 (4925032503036A) Diagram

#

Description
Price

1

SCREW-AIR VENT

3083125

Unavailable

2

PACKING(10)

3083126

$4.03

3

CLAMP-HOSE,(10)

3083141

$1.49

3

CLAMP-HOSE,(10)

3083141

$1.49

3

CLAMP-HOSE,(10)

3083141

$1.49

3

CLAMP-HOSE,(10)

3083141

$1.49

3

CLAMP-HOSE,(10)

3083141

$1.49

4

PIPE#3,VINYL(L=315) Substituted by 3085591

3083488

Unavailable

5

PIPE 1,VINYL

3084467

$28.32

6

SCREW&WASHER,(10)

3083783

$2.39

7

NUT(10)

3083120

$3.19

8

WASHER-SPRING(10)

3083121

$299.99

9

Lever, Control

-------

Unavailable

10

COLLAR, CAMSHAFT(10)

3083445

$2.39

11

SPRING-RETURN

3083123

Unavailable

12

PUMP, OIL (Incl.1,2,7-11,18)

3084668

Unavailable

13

PIPE 2, VINYL

3084559

Unavailable

14

GEAR, SMALL

3084558

Unavailable

15

SPACER

3083130

$1.59

16

BUSHING(OIL PUMP)

3083353

$31.99

17

SPACER #3

3083673

Unavailable

17

SPACER #2

3083672

Unavailable

17

SPACER #1

3083671

Unavailable

18

O RING

3083127

Unavailable
