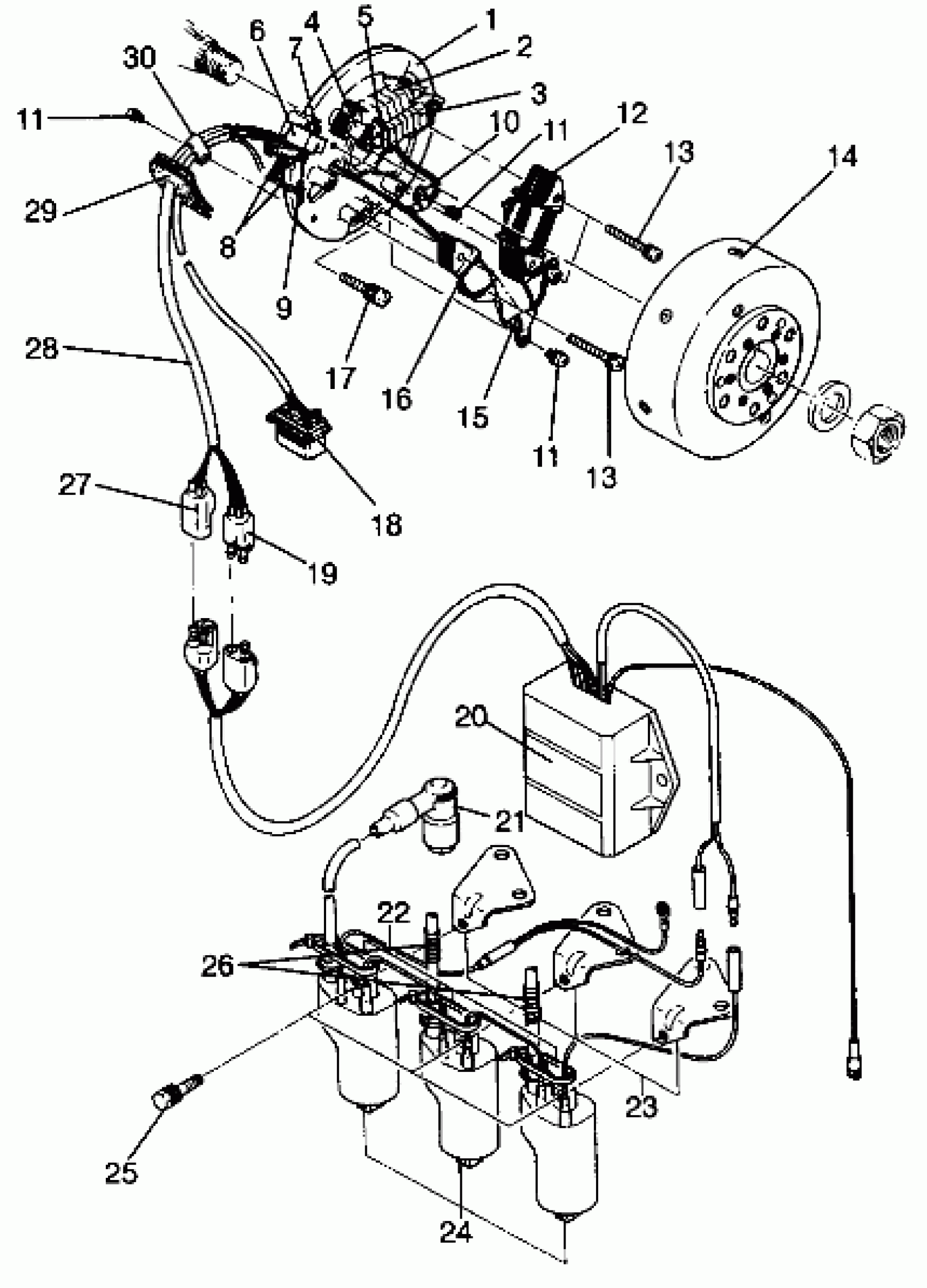

Polaris STORM - 0940782 MAGNETO ASSEMBLY Storm 0940782 and Storm SKS 0940582 (4925032503037A) Diagram

#

Description
Price

1

PLATE Substituted by 3084567

3084568

Unavailable

1

PLATE ASM. (Incl. 1-13, 15, 16, 18, 19, 27, 29, 30)

3084567

$327.79

2

COIL, EXCITING

3084091

Unavailable

3

COIL, PULSATING

3084092

Unavailable

4

COLLAR

3082961

Unavailable

5

SCREW-WASHER ASM(10)

3082962

Unavailable

6

COIL, PULSER

3084569

Unavailable

7

Band

3084099

Unavailable

8

BAND

3084097

Unavailable

9

SCREW & WASHER ASM.

3084096

Unavailable

10

CLAMP

3081259

Unavailable

11

SCREW&WASHER,(10)

3081260

$3.19

11

SCREW&WASHER,(10)

3081260

$3.19

11

SCREW&WASHER,(10)

3081260

$3.19

12

COIL.LAMP,'A'

3084233

$61.90

12

COIL, LAMP (Incl. 12,16)

3084232

Unavailable

13

SCREW & WASHER

3081588

Unavailable

13

SCREW & WASHER

3081588

Unavailable

14

FLYWHEEL

3084667

$404.99

15

CLAMP

3084098

Unavailable

16

COIL,LAMP,'B'

3084234

Unavailable

17

BOLT&WASHER ASM.

3083866

Unavailable

18

COUPLER,MALE

3081513

$19.99

19

COUPLER

3083909

$23.99

20

CDI SYSTEM Substituted by 3085070

3084662

Unavailable

21

CAP SPARK PLUG,(10)

4020129

$9.70

22

Band, Wire

3083447

Unavailable

23

BRKT,IGN.COIL

3084664

Unavailable

24

COIL, IGNITION

3084663

$269.99

25

SCREW & WASHER ASM.

3083867

Unavailable

26

TUBING,CONVOLUTED

5521147

Unavailable

27

COUPLER-3P

3083150

$10.63

28

HARNESS, WIRE (Incl. 18,19,27,30)

3084571

$123.99

29

Grommet

3082969

Unavailable

30

Clamp

3081146

$1.49
