ENGINE MOUNTING Storm 0940782 and Storm SKS 0940582 (4925032503025A)

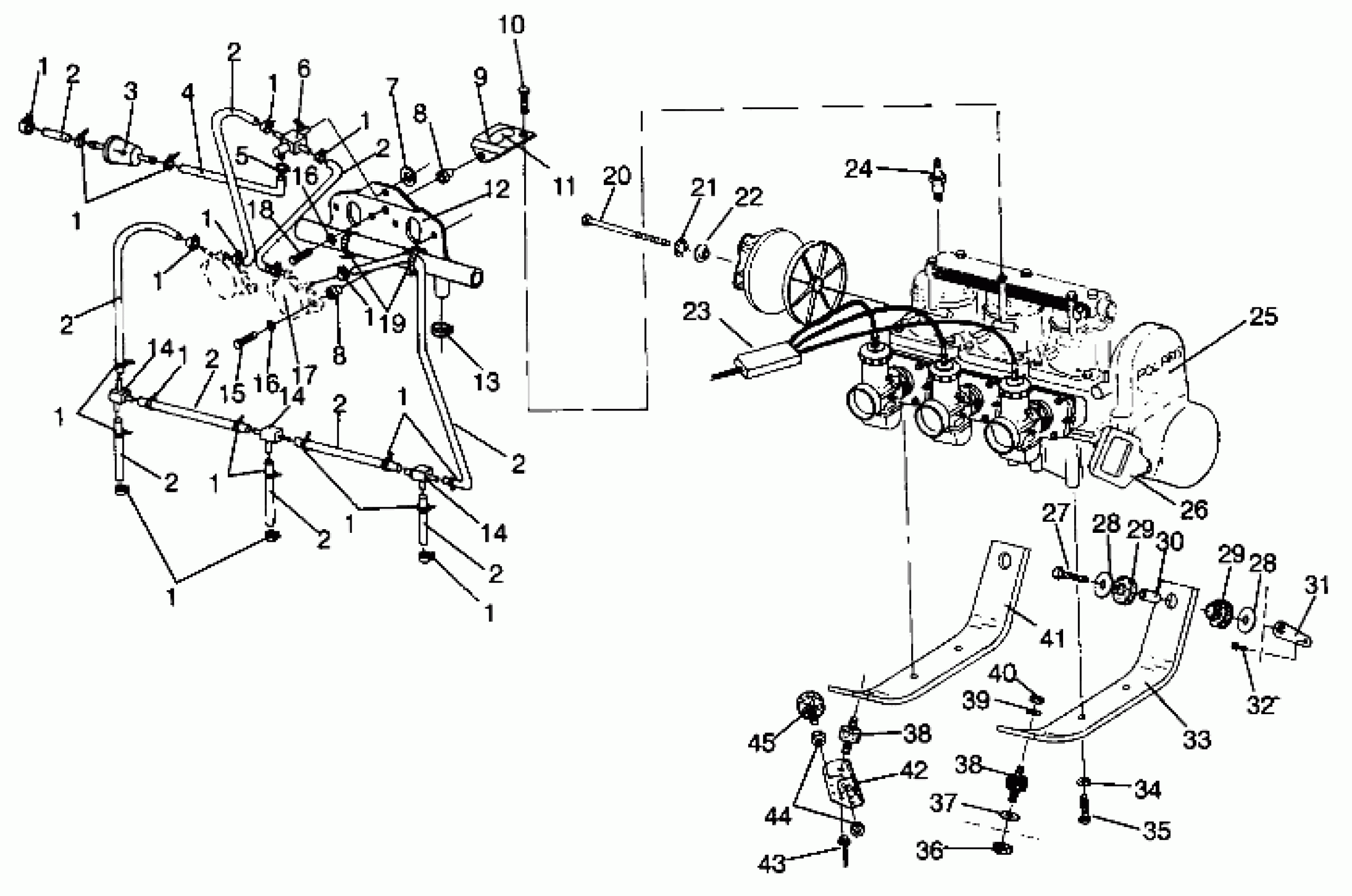

Polaris STORM - 0940782 ENGINE MOUNTING Storm 0940782 and Storm SKS 0940582 (4925032503025A) Diagram
#
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
1
HOSE CLAMP, RED
7080003
$1.49
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
2
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
3
FILTER FUEL,(10)
2530008
$4.84
4
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
5
CLAMP,SPRING,(10)
7080534
$1.59
6
VALVE,FUEL SHUT-OFF
7051010
Unavailable
7
WASHER(10)
7555892
Unavailable
8
NUT-WELL(10)
7541923
$5.59
8
NUT-WELL(10)
7541923
$5.59
9
BRKT,BOOST-TUBE,BLK.
5240343-067
Unavailable
10
BOLT&WASHER
3083729
$3.49
11
DECAL,FUEL SHUT-OFF
7073869
Unavailable
12
TUBE,BOOST
5431678
$57.99
13
CLAMP(10)
7080533
$3.99
14
FITTING, TEE ,(10)
7052089
$1.49
14
FITTING, TEE ,(10)
7052089
$1.49
14
FITTING, TEE ,(10)
7052089
$1.49
15
SCREW(10)
7512222
$2.39
16
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
16
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
17
Fuel Pump (See Pg. A37, Ref. 1)
-------
Unavailable
18
SCREW(10)
7512279
$1.49
19
STRAP, BLK
7080272
Unavailable
20
BOLT(10)
7512565
$19.99
21
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
22
WASHER,CLUTCH RETAINER
5010278
Unavailable
23
CABLE,THROTTLE/OIL,STORM
7080462
Unavailable
24
SPARKPLUG, RN3C(8)
3070166
$3.99
25
ENG.EC50PL-08 [No Longer Available]
1211538
Unavailable
25
ENG.(S.B.)EC80PL [No Longer Available]
3084628
Unavailable
26
HANDLE-RECOIL
5430520
Unavailable
27
SCREW(10)
7512530
$5.59
28
WASHER(10)
7555740
$1.59
28
WASHER(10)
7555740
$1.59
29
MOUNT, ENGINE
5410390
Unavailable
29
MOUNT, ENGINE
5410390
Unavailable
30
TUBE, SPACER
5333258
$2.63
31
RETAINER, NUT
1011907
$9.59
32
SCREW(10)
7512057
$2.38
33
PLATE,RH ENGINE
5222777
Unavailable
34
WASHER LOCK(10)
7553101
$3.99
35
BOLT(10)
7512575
Unavailable
36
NUT LOCK(10)
7542411
$3.19
37
WASHER(10)
7555721
$1.49
38
MOUNT
3110022
Unavailable
38
MOUNT
3110022
Unavailable
39
WASHER(10) Substituted by 7555806
7555720
$0.79
40
NUT-LOCK(10)
7542439
$1.49
41
PLATE,LH ENGINE Substituted by 5240816
5222776
Unavailable
42
LIMITER, TORQUE
1011879-067
$9.91
43
RIVET-3/16-.090-.290
7661637
$1.49
44
NUT, JAM(10)
7542432
$3.99
45
MOUNT,TORQUESTOP,RUBBER
3110034
Unavailable
