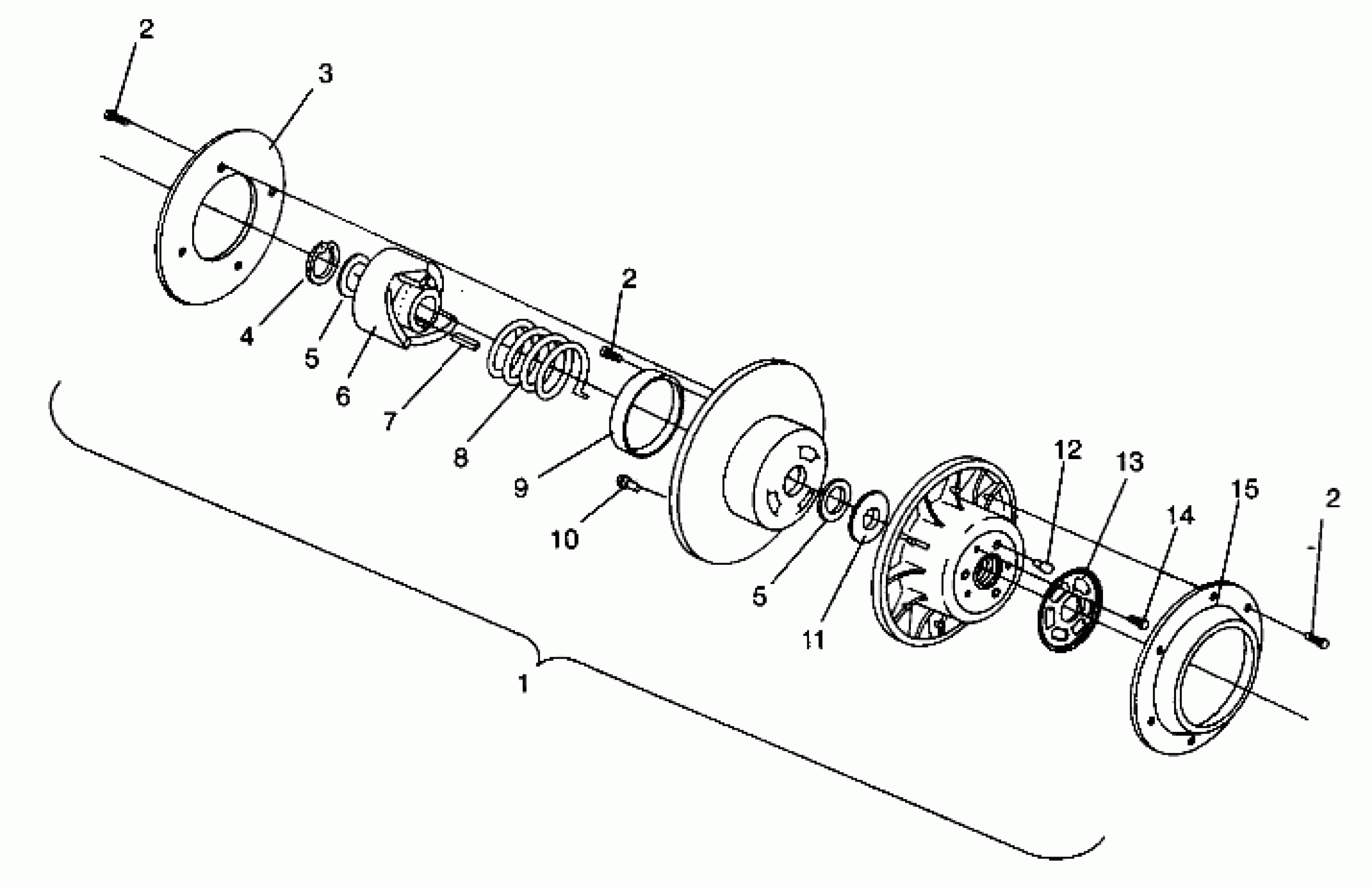

Polaris STORM - 0940782 DRIVEN CLUTCH ASSEMBLY Storm 0940782 and Storm SKS 0940582 (4925032503024A) Diagram

#

Description
Price

1

CLUTCH,34DEG.ADJ,DRIVEN Substituted by 1321925 (Incl. 2-15)

1322159

Unavailable

2

SCREW(10)

7512048

Unavailable

2

SCREW(10)

7512048

Unavailable

2

SCREW(10)

7512048

Unavailable

3

PLATE

5210749

$30.99

4

RING,RETAINING(10)

7714804

$9.59

5

WASHER(10)

7556804

$1.49

5

WASHER(10)

7556804

$1.49

6

HELIX,42/36/34DEG.(94STORM)

5131013

Unavailable

7

KEY SQUARE(10)

7721103

$5.65

8

SPRING,BLUE,DRIVEN CLUTCH (Blue)

7041296

Unavailable

9

BUSHING,D.U.

3569803

Unavailable

10

BUTTON-RAMP,(10)

5430466

$6.46

11

WASHER,DRIVE CLUTCH(10)

7555865

$6.39

12

PIN, CLUTCH

5020653

$34.99

13

CAM,DRIVEN,ADJUSTABLE

5222878

$29.03

14

SCREW(10)

7515133

$3.99

15

CAP DRIVEN

5230101

Unavailable
