DRIVE TRAIN ASSEMBLY Storm 0940782 and Storm SKS 0940582 (4925032503017A)

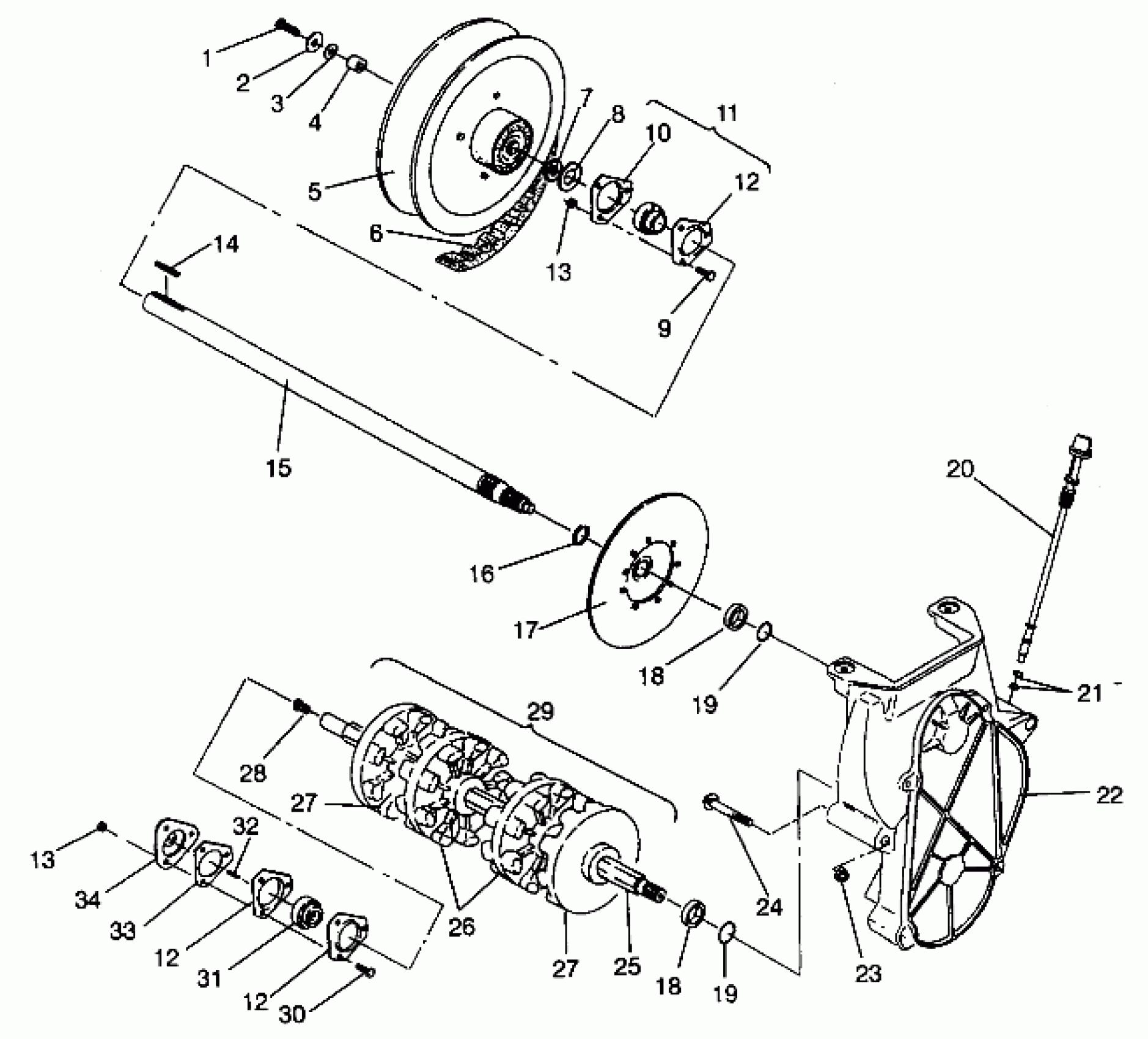

Polaris STORM - 0940782 DRIVE TRAIN ASSEMBLY Storm 0940782 and Storm SKS 0940582 (4925032503017A) Diagram
#
Description
Price
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER
5020291
Unavailable
5
Asm., Driven Clutch (See Pg. A27, Ref. 1)
-------
Unavailable
6
BELT, DRIVE,(5) Substituted by 3211065
3211057
$114.99
7
BUSHING(10)
7555864
$2.39
8
WASHER SPECIAL(10)
7556509
Unavailable
9
BOLT(10) Substituted by 7512377
7512394
Unavailable
10
FLANGETTE,W/GREASE HOLE
5222752
$7.43
11
KIT,HI-PERF,BEARING (Incl. 10,12 & Bearing)
2200422
Unavailable
12
FLANGETTE
5222751
$16.44
12
FLANGETTE
5222751
$16.44
12
FLANGETTE
5222751
$16.44
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
KEY(10)
7721116
$12.94
15
JACKSHAFT ASM,(800) (Incl. 16)
1332162-093
Unavailable
16
RING, RETAINING(10)
7710422
$3.99
17
DISC ASM, BRAKE
1910086
Unavailable
18
SLEEVE, SEAL
5020588
$23.99
18
SLEEVE, SEAL
5020588
$23.99
19
O RING,(10)
5410613
$1.99
19
O RING,(10)
5410613
$1.99
20
DIPSTICK Substituted by 1332143
5431419
Unavailable
21
O-RING
5410675
$1.60
22
Chaincase, Top Mount Brake (See Pg. A19, Ref. 22)
-------
Unavailable
23
NUT(10)
7542423
$3.99
24
BOLT(10)
7515428
$4.79
25
DRIVE SHAFT Substituted by 6230083
6230067
Unavailable
26
SPROCKET, HALF,9T
5430993
Unavailable
27
SPROCKET, 9T
5430571
Unavailable
27
SPROCKET, 9T
5430571
Unavailable
28
BUSHING METAL SPEEDO
3280019
$11.99
29
DRIVESHAFT ASM. Substituted by 1590245 (Incl. 25-28)
1590229
Unavailable
30
BOLT(10)
7512331
$3.99
31
BEARING
3514517
Unavailable
32
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
33
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
34
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
