CYLINDER and MANIFOLD ASSEMBLY Storm 0940782 and Storm SKS 0940582 (4925032503029A)

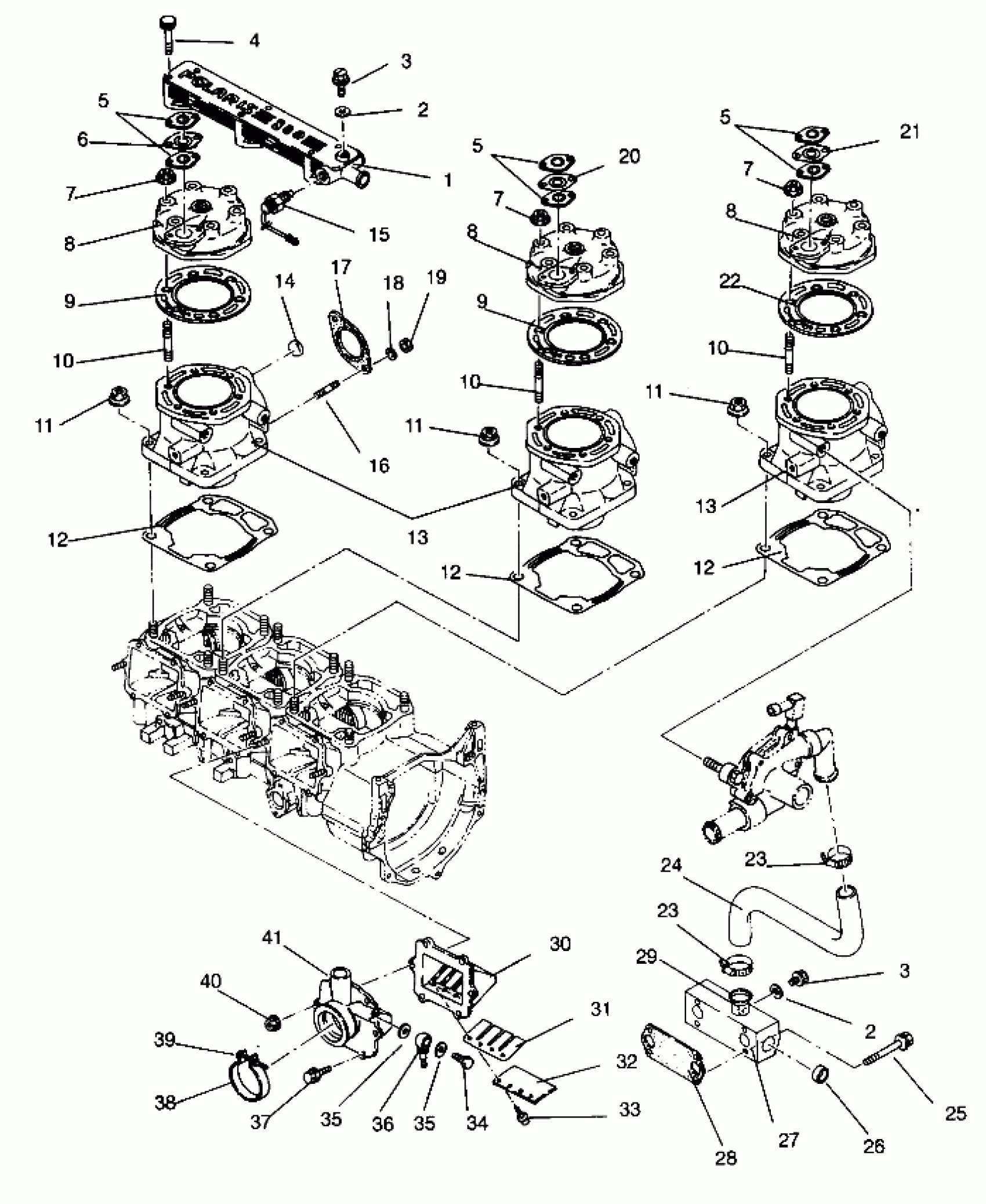

Polaris STORM - 0940782 CYLINDER and MANIFOLD ASSEMBLY Storm 0940782 and Storm SKS 0940582 (4925032503029A) Diagram
#
1
MANIFOLD,WATER OUTLET
3084650
$142.09
2
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
2
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
3
PLUG, AIR VENT Substituted by 7517266
3083350
Unavailable
3
PLUG, AIR VENT Substituted by 7517266
3083350
Unavailable
4
BOLT&WASHER
3083729
$3.49
5
GASKET,(O.W.M.) (O.W.M.)
3084688
Unavailable
5
GASKET,(O.W.M.) (O.W.M.)
3084688
Unavailable
5
GASKET,(O.W.M.) (O.W.M.)
3084688
Unavailable
6
PLATE 3,(O.W.M.) (Incl. 5)
3084655
Unavailable
7
NUT-FLANGE(10)
3082910
$2.39
7
NUT-FLANGE(10)
3082910
$2.39
7
NUT-FLANGE(10)
3082910
$2.39
8
HEAD,CYLINDER
3084647
Unavailable
8
HEAD,CYLINDER
3084647
Unavailable
8
HEAD,CYLINDER
3084647
Unavailable
9
GASKET 1,HEAD
3084648
$23.99
9
GASKET 1,HEAD
3084648
$23.99
10
STUD
3084645
$6.63
10
STUD
3084645
$6.63
10
STUD
3084645
$6.63
11
NUT-FLANGE(10)
3082911
$1.99
11
NUT-FLANGE(10)
3082911
$1.99
11
NUT-FLANGE(10)
3082911
$1.99
12
GASKET, CYLINDER
3084525
Unavailable
12
GASKET, CYLINDER
3084525
Unavailable
12
GASKET, CYLINDER
3084525
Unavailable
13
CYLINDER, COMPL. (Incl. 10,14,16)
3084644
$511.55
13
CYLINDER, COMPL. (Incl. 10,14,16)
3084644
$511.55
14
PLUG
3084428
$3.51
15
SWITCH,THERMO. (93
3084651
Unavailable
16
STUD (10)
3080016
$5.75
17
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
18
WASHER LOCK ,(10)
3080530
$3.19
19
NUT(10)
3080285
Unavailable
20
PLATE 2,(O.W.M.) (Incl. 5)
3084654
Unavailable
21
PLATE 1,(O.W.M.) (Incl. 5)
3084653
Unavailable
22
GASKET 2,HEAD
3084649
$39.19
23
CLAMP, HOSE
3083394
Unavailable
23
CLAMP, HOSE
3083394
Unavailable
24
HOSE, MAIN
3084665
Unavailable
25
BOLT(10)
3082030
$3.97
26
PLUG,CYL.HEAD
3084529
Unavailable
27
MANI.,INLET WATER (Incl. 26,29)
3084528
Unavailable
28
GASKET,WATER MANI.INLET
3084531
$0.75
29
PIPE 3,WATER
3084530
Unavailable
30
VALVE ASM,REED (Incl. 31-33)
3084536
$95.19
31
VALVE, REED
3084563
$19.83
32
Stopper
3084564
$19.03
33
SCREW, REED
3084565
$3.29
34
BOLT-BANJO
3083137
Unavailable
35
WASHER(10) Substituted by 7555998
3083138
Unavailable
35
WASHER(10) Substituted by 7555998
3083138
Unavailable
36
VALVE, CHECK
3083894
Unavailable
37
Bolt, Flange
3084126
Unavailable
38
BAND ASM. (Incl. 39)
3083166
$19.84
39
SCREW Substituted by 3081497
3083086
Unavailable
40
NUT, FLANGE(10)
3083856
$2.39
41
ADAPTER, COMPL.
3084652
Unavailable
