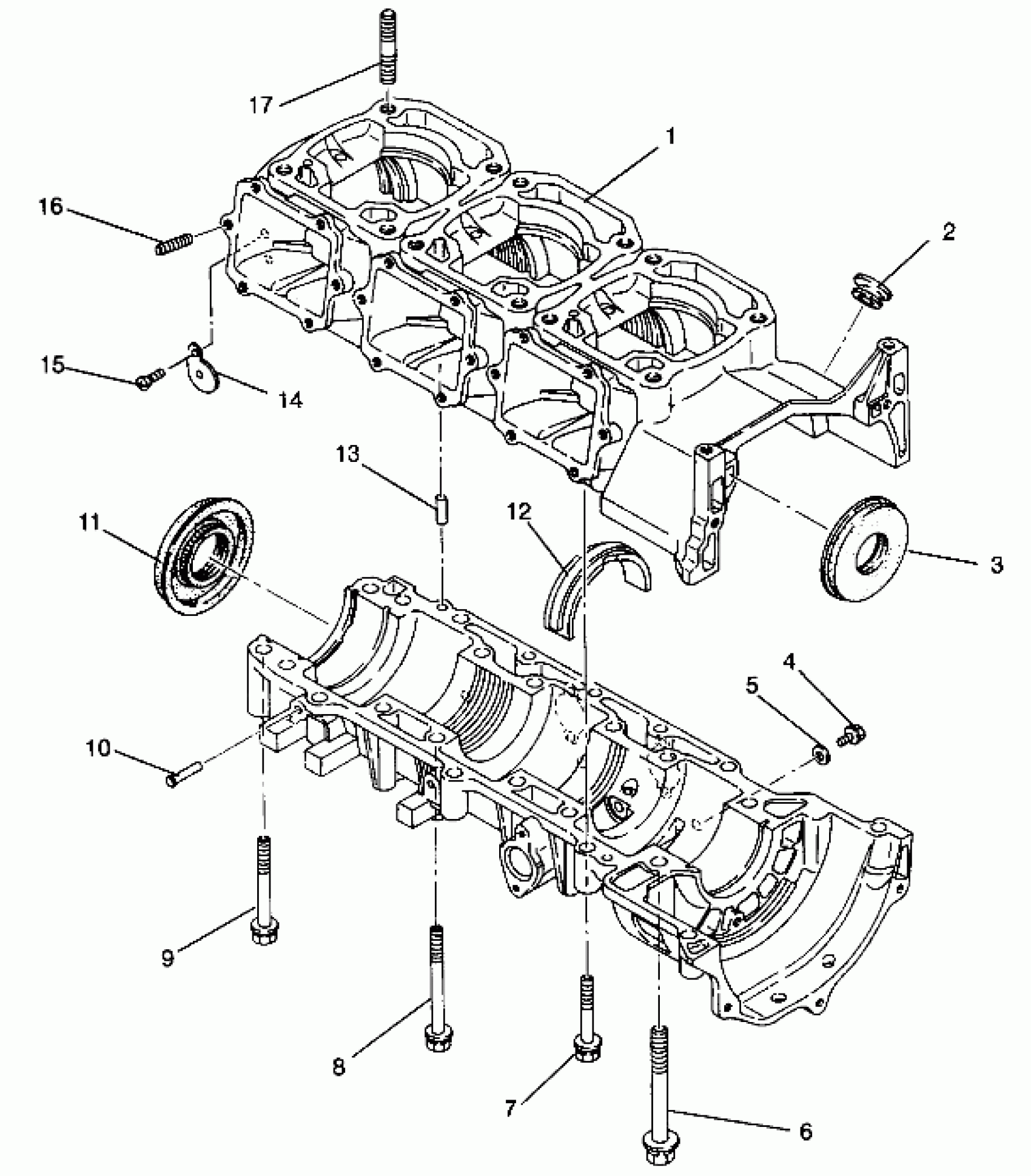

Polaris STORM - 0940782 CRANKCASE ASSEMBLY Storm 0940782 and Storm SKS 0940582 (4925032503031A) Diagram

#

Description
Price

1

CRANKCASE ASM. (Incl. 610,13,16,17)

3084641

$619.99

2

GROMMET

3082875

$7.99

3

SEAL, OIL

3240041

Unavailable

4

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

5

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

6

BOLT&WASHER ASM.

3084521

Unavailable

7

BOLT AND WASHER ASSY.

3082097

Unavailable

8

BOLT-WASHER

3082923

$6.19

9

BOLT W/WASHER

3080739

$6.39

10

PIPE, PULSE

3083798

$9.52

11

SEAL, OIL

3084522

$32.15

12

SPACER, CASE

3084642

Unavailable

13

PIN, DOWEL Substituted by 3086838

3080103

$7.14

14

PLATE,(CASE 1)

3084643

Unavailable

15

SCREW,COUNTERSUNK

3081180

Unavailable

16

STUD Substituted by 3086772

3084520

$3.81

17

Stud

3084519

$12.39
