COOLING SYSTEM Storm 0940782 and Storm SKS 0940582 (4925032503018A)

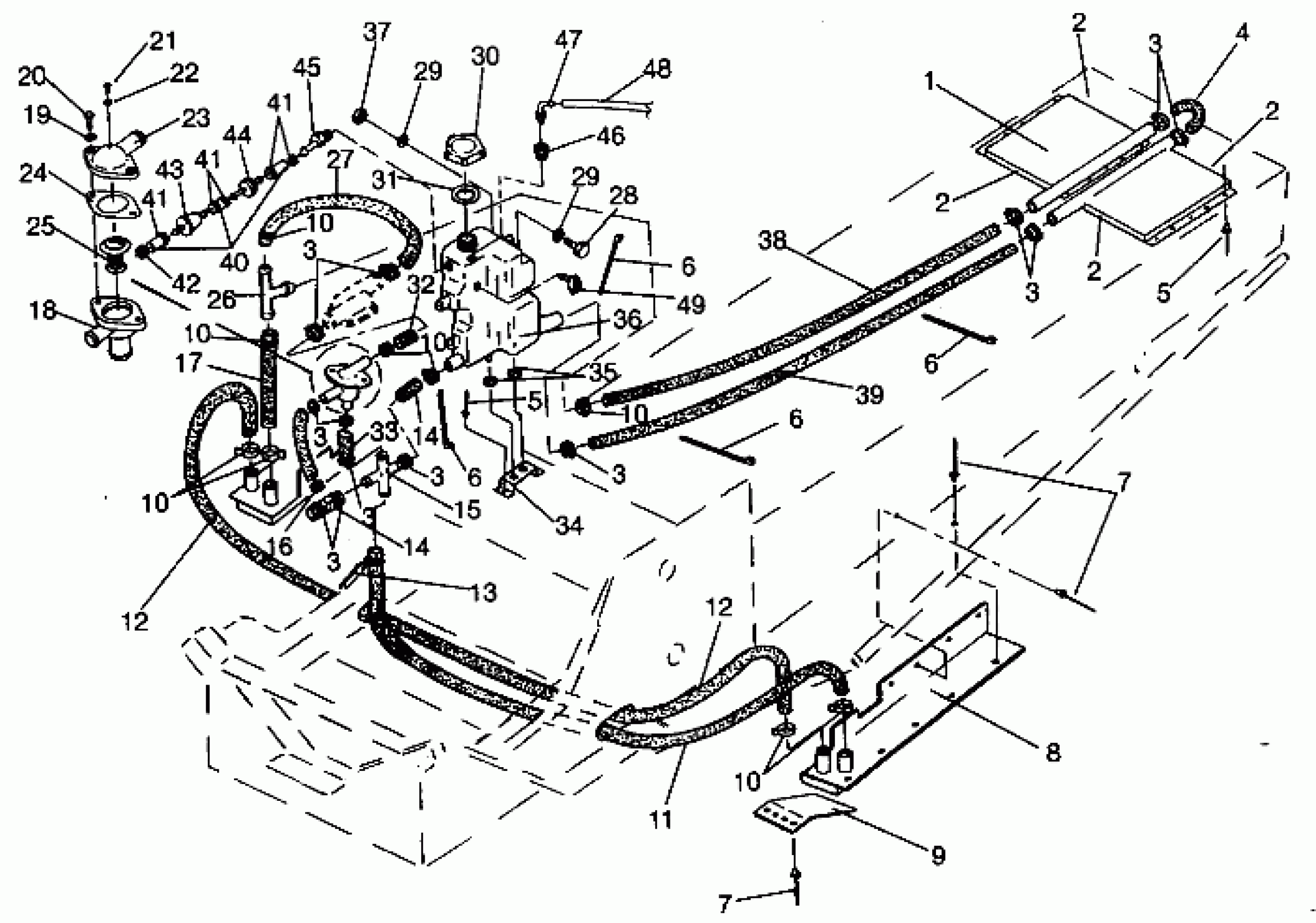

Polaris STORM - 0940782 COOLING SYSTEM Storm 0940782 and Storm SKS 0940582 (4925032503018A) Diagram
#
1
COOL.EXCHANGER,REAR
2511234
Unavailable
2
FOAM-SEAL,REAR COOLER
5810947
$4.03
2
FOAM-SEAL,REAR COOLER
5810947
$4.03
2
FOAM-SEAL,REAR COOLER
5810947
$4.03
2
FOAM-SEAL,REAR COOLER
5810947
$4.03
3
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
3
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
3
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
3
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
3
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
3
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
3
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
3
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
4
HOSE,COOLING
5410758
Unavailable
5
RIVET-3/16-.090-.290
7661637
$1.49
5
RIVET-3/16-.090-.290
7661637
$1.49
6
STRAP, BLK
7080272
Unavailable
6
STRAP, BLK
7080272
Unavailable
6
STRAP, BLK
7080272
Unavailable
6
STRAP, BLK
7080272
Unavailable
7
RIVET,INTERLOCK,B(50)
7661638
$1.49
7
RIVET,INTERLOCK,B(50)
7661638
$1.49
8
COOLING WELD,RH
2511224
Unavailable
8
COOLING WELD,LH
2511223
$113.32
9
GUARD, COOL.EXT.
5222863
$32.99
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
11
HOSE,SIDE,COOLER/4-WAY,1''FLARE
5410864
Unavailable
12
HOSE-CROSSOVER
5410324
Unavailable
12
HOSE-CROSSOVER
5410324
Unavailable
13
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
14
HOSE
5521291
$2.63
14
HOSE
5521291
$2.63
15
MANIFOLD,4-WAY CAST
5630490
$14.87
16
HOSE,ENG/AUTOSTAT
5410764
Unavailable
17
DESC NOT_AVAILABLE
8450050-26
Unavailable
18
HOUSING, THERMOSTAT
5130943
Unavailable
19
LOCK WASHER(10)
7552901
$1.49
20
BOLT(10)
7512383
$1.99
21
PLUG, AIR VENT Substituted by 7517266
3083350
Unavailable
22
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
23
CAP,THERMOSTAT HSG,MACH.
5130942
$40.79
24
Gasket, Thermostat
5830020
Unavailable
25
AUTOSTAT
7051007
Unavailable
26
CONNECTOR,TEE,3/4"
7052093
$8.79
27
HOSE,R.COOLER,3-WAY
5410845
$13.19
28
BOLT(10)
7512240
$3.99
29
WASHER,WROUGHT(10)
7558302
$1.59
29
WASHER,WROUGHT(10)
7558302
$1.59
30
CAP, SURGETANK
5431433
Unavailable
31
GASKET-OIL CAP
5810141
$2.39
32
HOSE, 9CM. Substituted by 8450048-87
8450048-9
Unavailable
33
HOSE, 5.5CM. Substituted by 8450048-87
8450048-5.5
Unavailable
34
BRKT, SURGE TANK Substituted by 5240630
5222775
Unavailable
35
GROMMET RUBBER
5410021
Unavailable
36
TANK,SURGE,COOLANT
5431684
Unavailable
37
NUT-LOCK(10)
7542122
$1.49
38
HOSE,R.COOLER,3-WAY
5410844
$29.75
39
HOSE,87CM.(COOLANT) Substituted by 8450048-305
8450048-87
Unavailable
40
DESC NOT_AVAILABLE
8450003-153
Unavailable
41
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
41
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
41
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
42
CLAMP-HOSE(10)
7080134
Unavailable
43
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
44
VALVE, CHECK
7052038
$10.51
45
FITTING,SURGE TANK,(10)
7052099
$4.79
46
FITTING,VENT
5431692
Unavailable
47
FITTING,90 DEG,10/32
7052098
Unavailable
48
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
49
CLIP, PLASTIC(10)
4020139
$4.79
