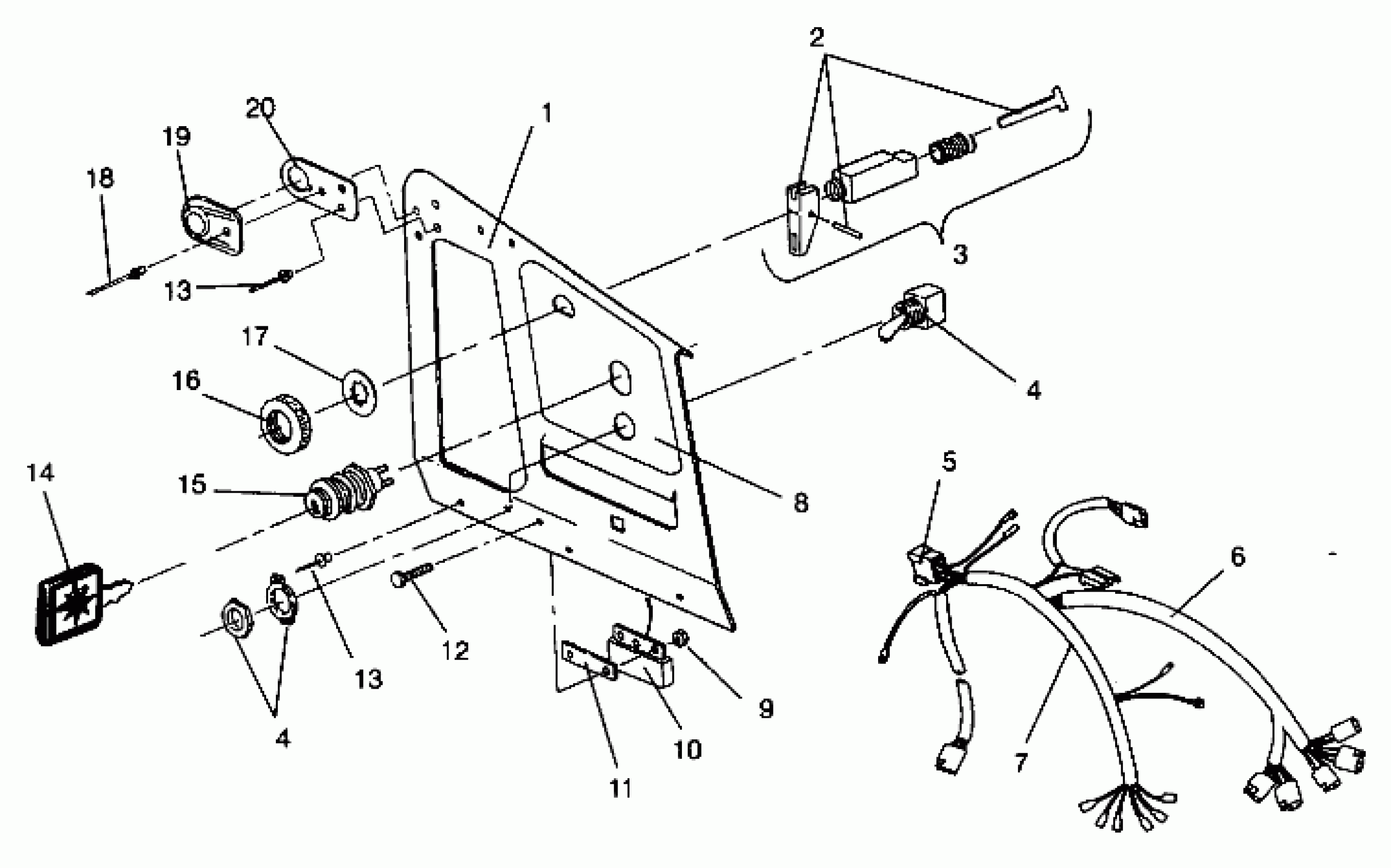

Polaris STORM - 0940782 CONSOLE Storm 0940782 and Storm SKS 0940582 (4925032503009A) Diagram

CONSOLE

5222756-067

Unavailable

KIT-CHOKE CONTROL

2200188

$24.27

CABLE, CHOKE

7080283

$109.99

SW,HEATER,HI-LOW

4110077

Unavailable

SW,HEATER,HI-LOW

4110077

Unavailable

Housing w/Receptacle

4020057

$3.51

HOUSING,1 CKT.RECEPTACLE

4020060

Unavailable

HARNESS, MAIN WIRE

2460372

Unavailable

DECAL, CONSOLE [No Longer Available]

7073075

Unavailable

NUT(10)

7541925

$1.49

REGULATOR, VOLTAGE

4060092

Unavailable

HEAT SINK

5210650

Unavailable

BOLT(10)

7512031

$2.23

RIVET,INTERLOCK,B(50)

7661638

$1.49

RIVET,INTERLOCK,B(50)

7661638

$1.49

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]

5410611

Unavailable

KIT,IGN. SWITCH (Incl.14)

2200357

Unavailable

Nut

7080229

$19.99

WASHER-LOCK(10)

7571610

$3.99

RIVET,(50)

7621477

$1.19

GUIDE, RECOIL

5431385

$10.51

BRKT,ROPE GUIDE,BLK. NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D or E switch. Letter code will be labeled on underside of switch body behind console. Key dot

5222682-067

Unavailable
