CARBURETOR ASSEMBLY Storm 0940782 and Storm SKS 0940582 (4925032503034A)

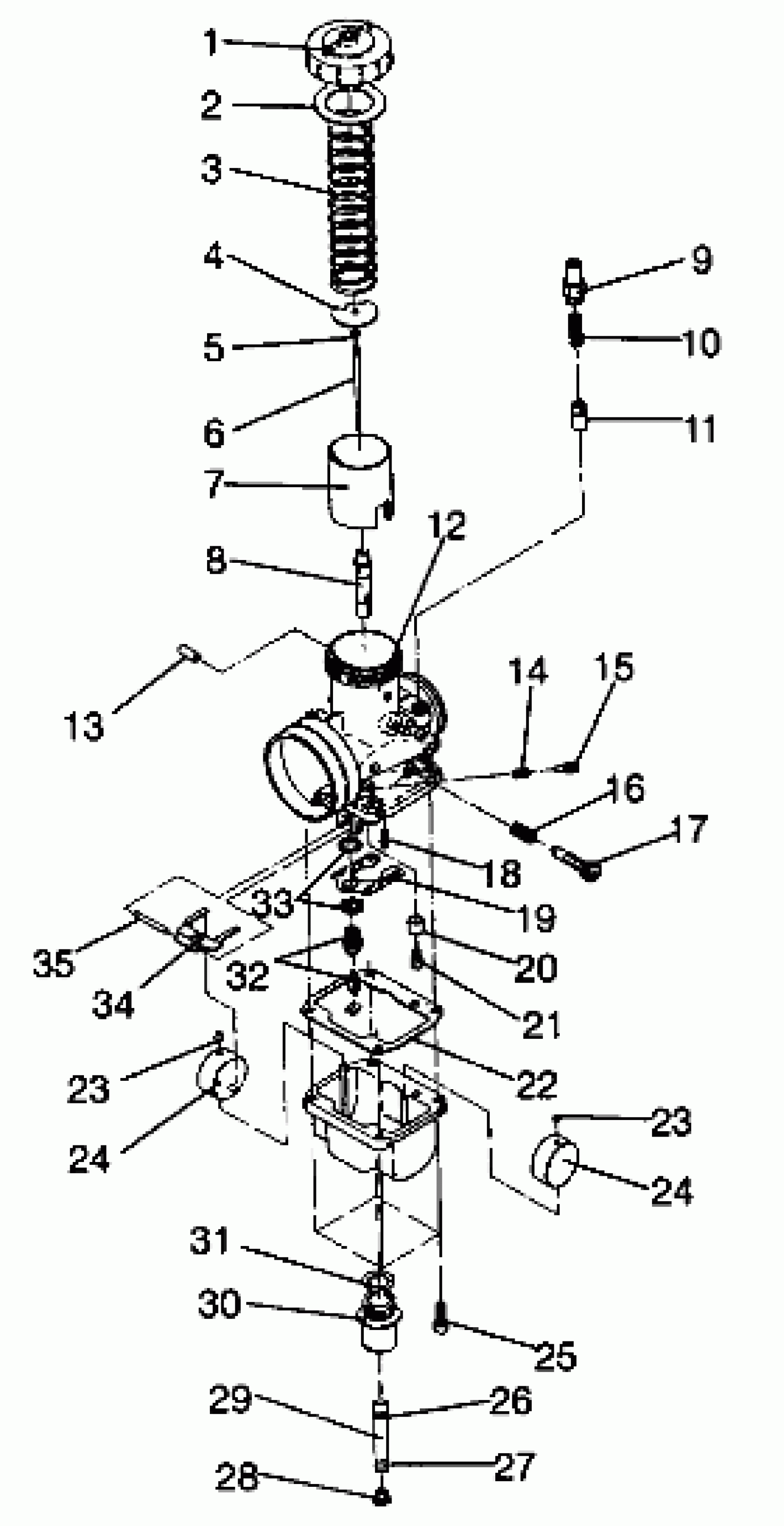

Polaris STORM - 0940782 CARBURETOR ASSEMBLY Storm 0940782 and Storm SKS 0940582 (4925032503034A) Diagram
#
Description
Price
1
TOP (Incl. 2)
3130061
Unavailable
2
GASKET
-------
Unavailable
3
SPRING,THROTTLE
3130444
Unavailable
4
PLATE, THROTTLE
3130054
$6.46
5
E RING(10) Substituted by 3130508
3130003
Unavailable
6
JET NEEDLE(J8-6CGY03) (6CGY3-2)
3130484
Unavailable
7
VALVE, THROTTLE,2.5 (2.5)
3130454
Unavailable
8
JET,NEEDLE(Q-8) (Q-8) 247
3130485
$18.73
9
HOLDER,GUIDE
3130199
$28.32
10
SPRING,PLUNGER
3130006
$8.89
11
PLUNGER ASM, STARTER
3130328
$32.37
12
CARB.#1 ASM. (Incl. 1-25,30-35)
3130483
$292.99
12
CARB.#2 ASM (Incl. 1-25,30-35)
3130488
$243.59
12
CARB.#3 ASM. (Incl. 1-25,30-35)
3130490
$298.99
13
CAP
3130479
$14.56
14
SPRING,AIR ADJUST
3130012
$8.89
15
SCREW,AIR
3130011
$19.99
16
SPRING,THROTTLE ADJ.
3130010
$8.89
17
SCREW,THROTTLE STOP
3130009
$19.99
18
JET,PILOT,#30(10) (#30)
3130065
$8.89
19
PLATE
3130243
Unavailable
20
RING,CARB
3130232
Unavailable
21
JET,MAIN,HX.HD#350(10) (#350) (3)
3130138
$7.27
21
JET,MAIN,#390 Substituted by 3130480 (#390) (1)
3130487
Unavailable
21
JET,MAIN,#360 Substituted by 3130139 (#360) (2)
3130489
Unavailable
22
GASKET,FLOAT CHAMBER
3130236
$12.13
23
CAP,(10)
3130237
$4.03
23
CAP,(10)
3130237
$4.03
24
FLOAT ASM
3130021
$40.46
24
FLOAT ASM
3130021
$40.46
25
SCREW
3130056
$3.19
26
CLAMP-HOSE,(10) (Yellow)
7080236
$1.59
27
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
28
PLUG, TRAP Substituted by 5431893
5431001
Unavailable
29
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
30
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
31
O RING
3130239
Unavailable
32
NEEDLEVALVE ASM. (1.8)
3130486
Unavailable
33
WASHER(10)
3130047
$4.84
34
ARM,FLOAT
3130048
Unavailable
35
PIN, FLOAT Substituted by 3130361
3130235
$8.89
