STEERING ASSEMBLY Storm/0932770 and Storm SKS/0932570 (4923032303015A)

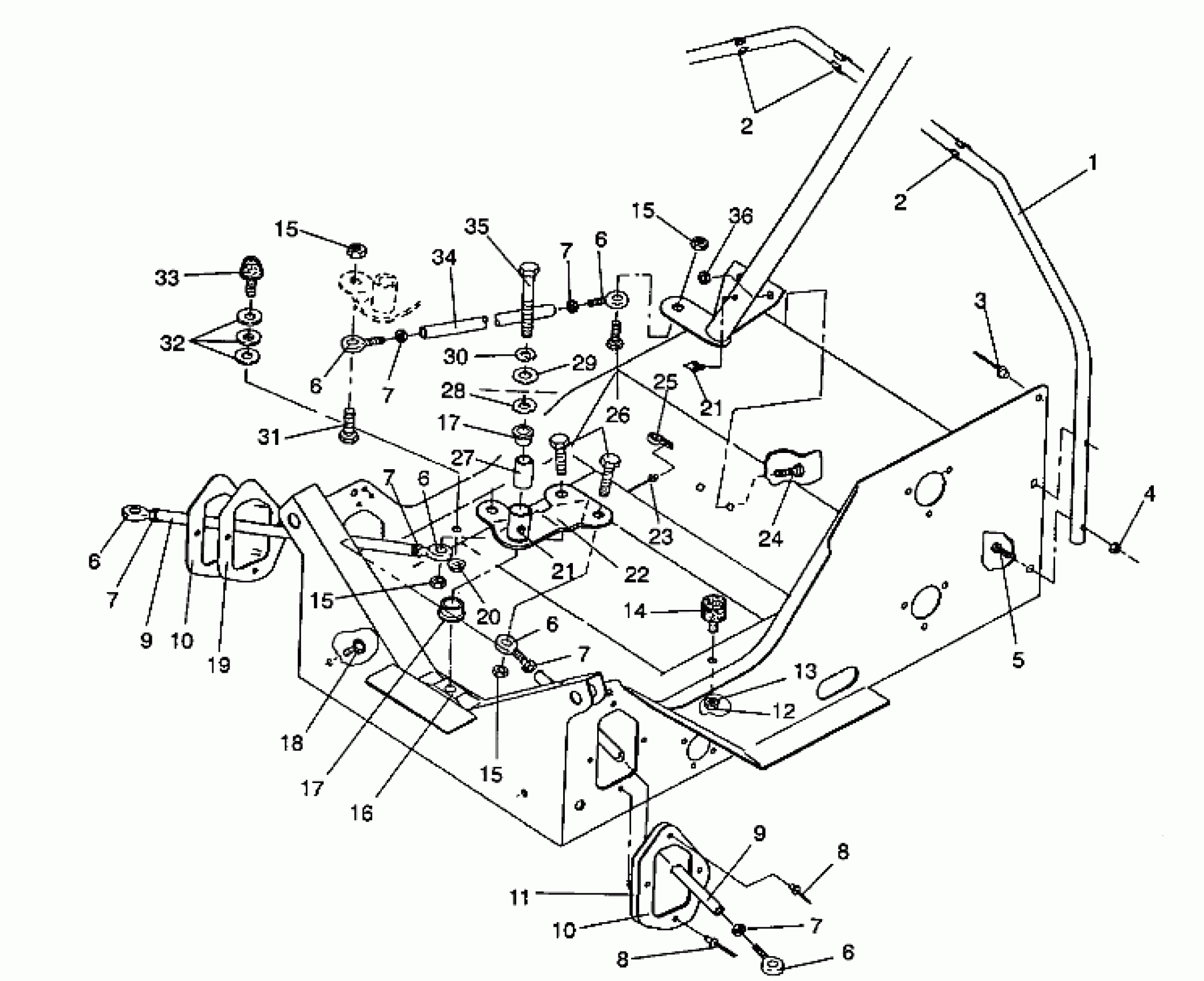

Polaris STORM - 0932770 STEERING ASSEMBLY Storm/0932770 and Storm SKS/0932570 (4923032303015A) Diagram
#
1
HOOP,STRG,BLK.(STORM)
1011853-067
Unavailable
2
CLIP(10)
7080278
$2.63
2
CLIP(10)
7080278
$2.63
3
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
4
NUT-LOCK(10)
7542122
$1.49
5
BOLT-CARRIAGE(10)
7512275
$3.99
6
ROD END,LH Substituted by 7060164
7060124
$48.56
6
ROD END, RH Substituted by 7060167
7060152
$48.56
6
ROD END,LH Substituted by 7060164
7060124
$48.56
6
ROD END, RH Substituted by 7060167
7060152
$48.56
6
ROD END,LH Substituted by 7060164
7060124
$48.56
6
ROD END, RH Substituted by 7060167
7060152
$48.56
6
ROD END,LH Substituted by 7060164
7060124
$48.56
6
ROD END, RH Substituted by 7060167
7060152
$48.56
6
ROD END,LH Substituted by 7060164
7060124
$48.56
6
ROD END, RH Substituted by 7060167
7060152
$48.56
6
ROD END,LH Substituted by 7060164
7060124
$48.56
6
ROD END, RH Substituted by 7060167
7060152
$48.56
7
NUT HEX(10)
7542401
$2.39
7
NUT
7542424
$1.49
7
NUT HEX(10)
7542401
$2.39
7
NUT
7542424
$1.49
7
NUT HEX(10)
7542401
$2.39
7
NUT
7542424
$1.49
7
NUT HEX(10)
7542401
$2.39
7
NUT
7542424
$1.49
7
NUT HEX(10)
7542401
$2.39
7
NUT
7542424
$1.49
7
NUT HEX(10)
7542401
$2.39
7
NUT
7542424
$1.49
8
POP RIVET(50)
7621303
Unavailable
8
POP RIVET(50)
7621303
Unavailable
9
ROD,TIE,BLACK (SKS)
5332713-067
Unavailable
9
TIEROD (Storm)
5020636-067
Unavailable
9
ROD,TIE,BLACK (SKS)
5332713-067
Unavailable
9
TIEROD (Storm)
5020636-067
Unavailable
10
PLATE,RH,BOOT SEAL
5210904
Unavailable
10
PLATE,RH,BOOT SEAL
5210904
Unavailable
11
BOOT , LH
5410388
Unavailable
12
NUT(10)
7546803
Unavailable
13
LOCK WASHER(10)
7552901
$1.49
14
DAMPENER,RUBBER ENG.8M
3110035
Unavailable
15
NUT LOCK(10)
7542403
$3.99
15
NUT LOCK(10)
7542403
$3.99
15
NUT LOCK(10)
7542403
$3.99
15
NUT LOCK(10)
7542403
$3.99
16
BLOCK, CTR.STRG.
5130889
$139.68
17
BUSHING
3563907
$3.99
17
BUSHING
3563907
$3.99
18
CLIP, PLASTIC(10)
4020139
$4.79
19
BOOT-TIE ROD
5410328
Unavailable
20
NUT(10)
7542323
$1.99
21
FITTING-LUBRICATION 1/4-28
7080424
$4.79
21
FITTING-LUBRICATION 1/4-28
7080424
$4.79
22
STEERING WELD,CTR.
1822106-067
$131.99
23
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
24
BOLT(10) Substituted by 7512377
7512394
Unavailable
25
CLAMP, CABLE(10)
7080499
$5.59
26
BOLT(10) Substituted by 7515492
7512410
Unavailable
27
BUSHING, SPACER
5010282
$8.73
28
WASHER,WAVE(10)
7555735
$3.99
29
WASHER(10)
7555721
$1.49
30
LOCK WASHER(10)
7553201
$3.99
31
BOLT(10)
7515524
Unavailable
32
WASHER(10)
7555716
$1.59
33
DAMPENER,RUBBER ENG.5/16
3110036
Unavailable
34
ROD, DRAG, LINK
5333144
Unavailable
35
BOLT(10)
7512679
Unavailable
36
NUT-5/16-18 NYLOK-Y
7542324
$1.49
