SEAT and GAS TANK ASSEMBLY Storm/0932770 and Storm SKS/0932570 (4923032303002A)

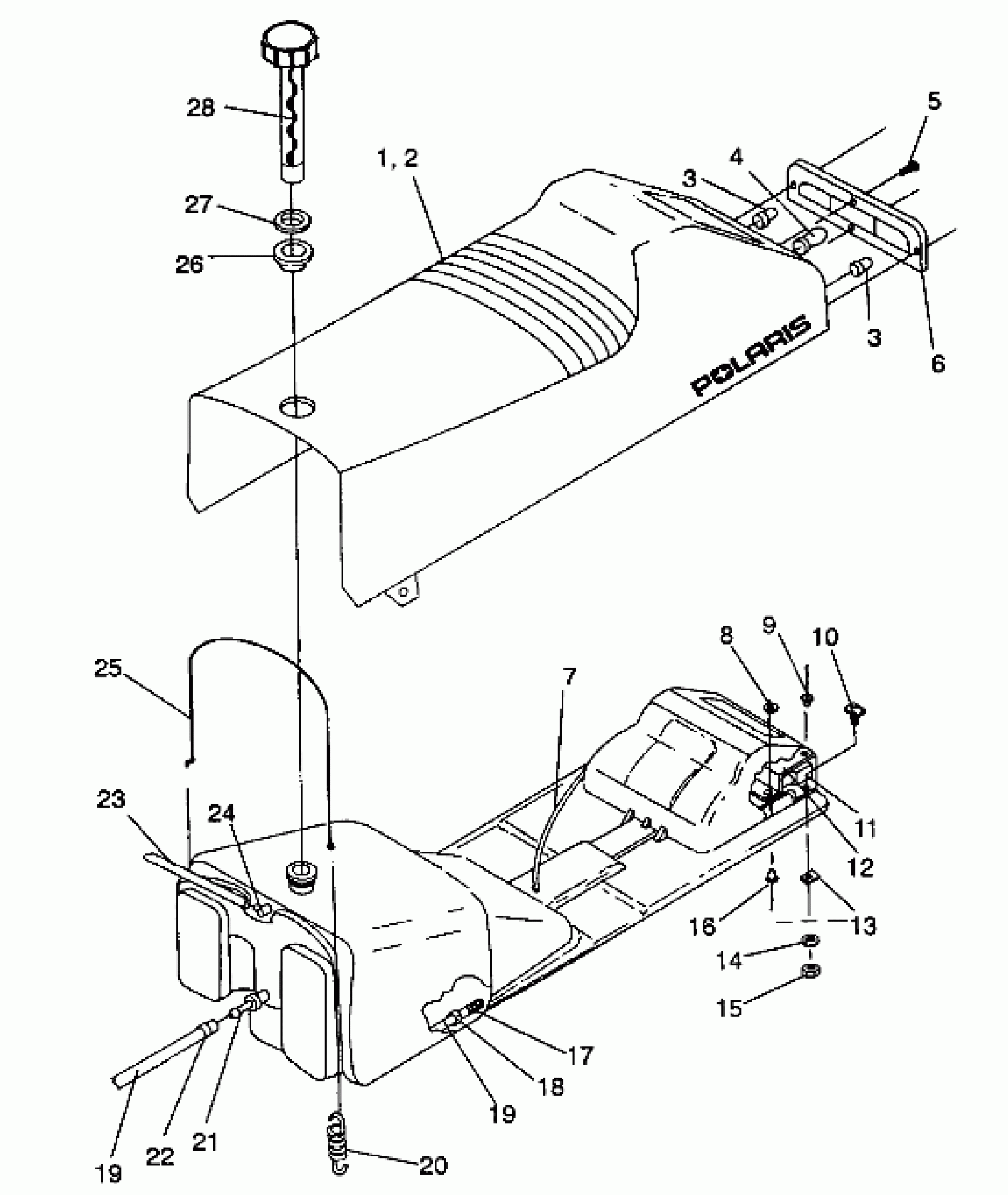

Polaris STORM - 0932770 SEAT and GAS TANK ASSEMBLY Storm/0932770 and Storm SKS/0932570 (4923032303002A) Diagram
#
Description
Price
1
SEAT/TANK ASM,(STORM SKS) (SKS) (Incl. 4, 5, 7-13, 16)
2681586
Unavailable
1
SEAT/TANK ASM,(STORM) (Storm) (Incl. 4, 5, 7-13, 16)
2681583
Unavailable
2
COVER, SEAT,(STORM) (Storm)
2681584
Unavailable
2
COVER, SEAT(STORM SKS) (SKS)
2681598
Unavailable
3
BULB,TAILLIGHT(10)
4030024
$4.84
3
BULB,TAILLIGHT(10)
4030024
$4.84
4
Bulb, Brakelight
4030045
Unavailable
5
SCREW(10)
7511840
Unavailable
6
LENS,TAILLIGHT
5430423
Unavailable
7
HARNESS,TAILLIGHT
2460398
Unavailable
8
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
9
RIVET, BLIND(50)
7621467
$1.49
10
MOUNT, REAR SEAT
1011855
Unavailable
11
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
12
COVER,T/L PROTECTOR
5431436
$21.43
13
SPEED NUT(10)
7670021
$6.99
14
WASHER(10)
7558301
$1.49
15
NUT-LOCK(10)
7542122
$1.49
16
RIVET, BLIND(50)
7621467
$1.49
17
FUELPICKUP,W/STRAINER
7052037
$12.94
18
RING, COMPRESSION(10)
7080402
$1.60
19
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
19
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
20
SPRING-EXHAUST(10)
7042029
$4.84
21
FITTING - OUTLET(10)
7052023
$24.99
22
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
23
VENT LINE,1/8,BULK Substituted by 8360009-600
8360009
Unavailable
24
FITTING,(10)
7052077
$6.39
25
CABLE,TANK RETENTION
7080473
Unavailable
26
GROMMET,GAS TANK
5410745
Unavailable
27
GASKET, GAS CAP
5810513
$8.89
28
CAP,FUEL W/GAUGE Substituted by 2511248
2511227
$44.51
