PISTON and CRANKSHAFT Storm/0932770 and Storm SKS/0932570 (4923032303031A)

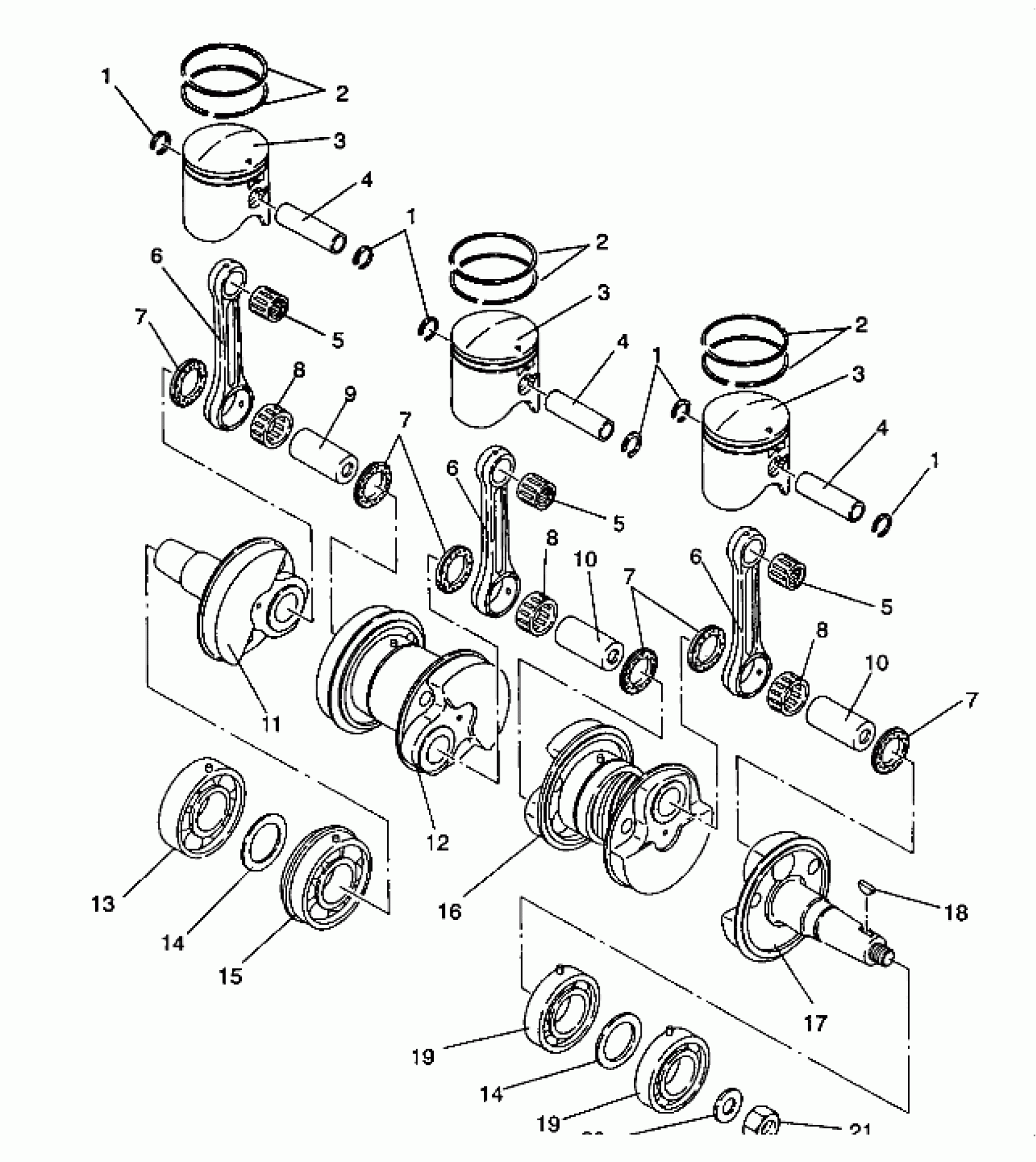

Polaris STORM - 0932770 PISTON and CRANKSHAFT Storm/0932770 and Storm SKS/0932570 (4923032303031A) Diagram
#
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
2
RING,PISTON(.010 O/S) (0.25mm/.010" O/S)
3084548
Unavailable
2
RING,PISTON(.020 O/S) (0.50mm/.020" O/S)
3084549
Unavailable
2
RING,PISTON,(STD) (Standard)
3084547
Unavailable
2
RING,PISTON(.010 O/S) (0.25mm/.010" O/S)
3084548
Unavailable
2
RING,PISTON(.020 O/S) (0.50mm/.020" O/S)
3084549
Unavailable
2
RING,PISTON,(STD) (Standard)
3084547
Unavailable
2
RING,PISTON(.010 O/S) (0.25mm/.010" O/S)
3084548
Unavailable
2
RING,PISTON(.020 O/S) (0.50mm/.020" O/S)
3084549
Unavailable
2
RING,PISTON,(STD) (Standard)
3084547
Unavailable
3
PISTON, (STD.) (Standard)
3084575
$138.08
3
PISTON, (.010 O/S) (0.25mm/.010" O/S)
3084576
Unavailable
3
PISTON, (.020 O/S) (0.50mm/.020" O/S)
3084577
Unavailable
3
PISTON, (STD.) (Standard)
3084575
$138.08
3
PISTON, (.010 O/S) (0.25mm/.010" O/S)
3084576
Unavailable
3
PISTON, (.020 O/S) (0.50mm/.020" O/S)
3084577
Unavailable
3
PISTON, (STD.) (Standard)
3084575
$138.08
3
PISTON, (.010 O/S) (0.25mm/.010" O/S)
3084576
Unavailable
3
PISTON, (.020 O/S) (0.50mm/.020" O/S)
3084577
Unavailable
4
PIN, PISTON
3083858
$23.99
4
PIN, PISTON
3083858
$23.99
4
PIN, PISTON
3083858
$23.99
5
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
5
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
5
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
6
ROD,CONNECTING
3084543
Unavailable
6
ROD,CONNECTING
3084543
Unavailable
6
ROD,CONNECTING
3084543
Unavailable
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
8
BEARING,LGE.END Substituted by 3083255
3240084
Unavailable
8
BEARING,LGE.END Substituted by 3083255
3240084
Unavailable
8
BEARING,LGE.END Substituted by 3083255
3240084
Unavailable
9
PIN, CRANK
3240085
Unavailable
10
PIN-CRANK 2
3083254
Unavailable
10
PIN-CRANK 2
3083254
Unavailable
11
CRANKSHAFT 3
3084542
Unavailable
12
CRANKSHAFT,PTO SIDE (PTO) (Incl. 9)
3084541
Unavailable
13
BEARING, BALL
3084546
Unavailable
14
SPACER
3240088
$10.39
14
SPACER
3240088
$10.39
15
BEARING, BALL
3084545
Unavailable
16
CRANKSHAFT,CTR. (Center) (Incl. 3, 6-10)
3084539
$639.44
16
CRANKSHAFT,MAG.SIDE (Mag) (Incl. 10)
3084540
$354.99
17
CRANKSHAFT CPL. (Incl.6-17, 19)
3084537
$1,524.99
17
CRANKSHAFT 1
3084538
Unavailable
18
KEY WOODRUFF
3081543
$12.94
19
BEARING, BALL
3084544
Unavailable
19
BEARING, BALL
3084544
Unavailable
20
Washer
3084457
Unavailable
21
NUT
3083093
$19.99
