OIL TANK/AIR BOX ASSEMBLY Storm/0932770 and Storm SKS/0932570 (4923032303027A)

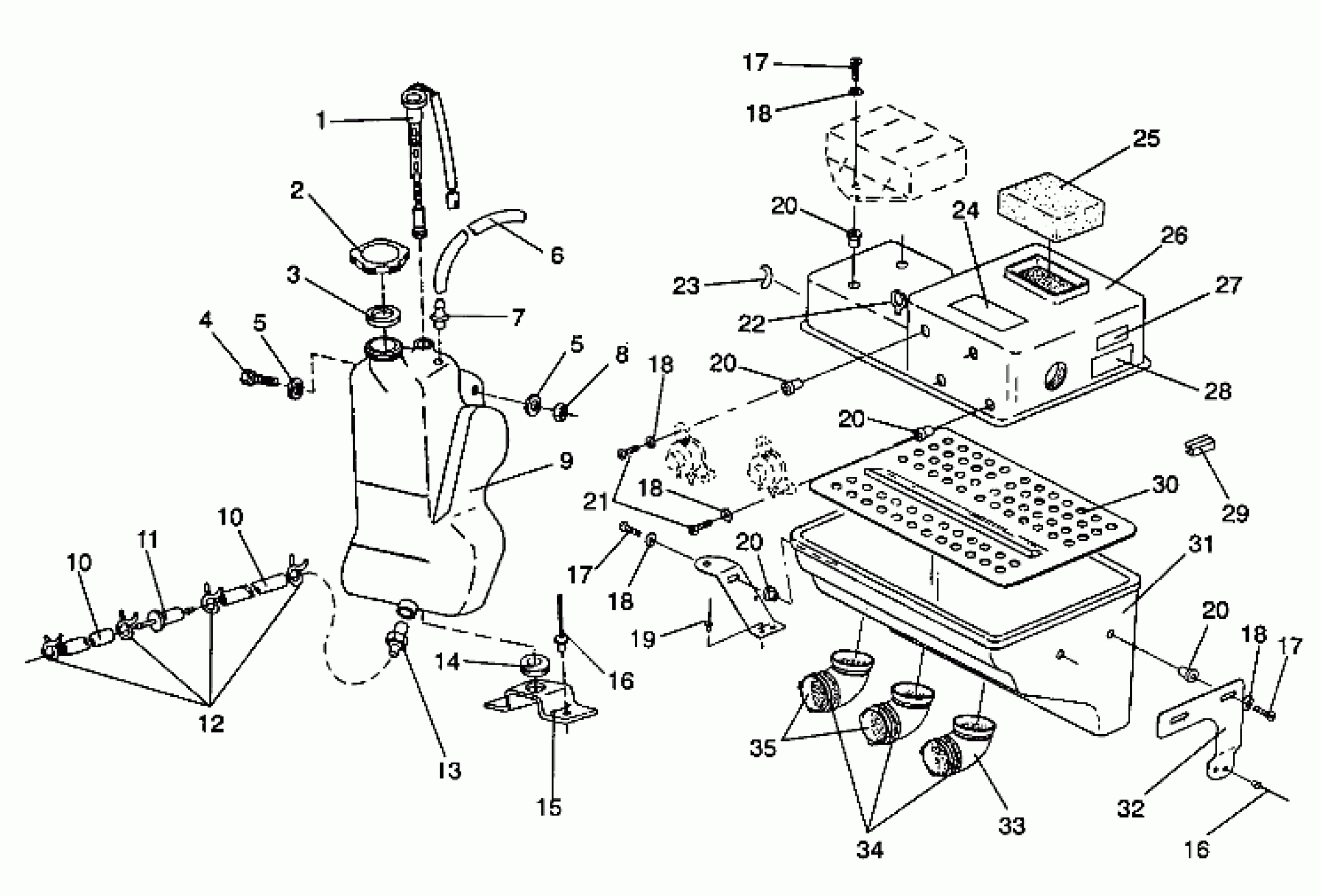

Polaris STORM - 0932770 OIL TANK/AIR BOX ASSEMBLY Storm/0932770 and Storm SKS/0932570 (4923032303027A) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN. Substituted by 4040040
4040016
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512103
$3.19
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
KIT-TANK VENT
2200190
Unavailable
7
FITTING,(10)
7052077
$6.39
8
NUT-LOCK(10)
7542122
$1.49
9
Tank, Oil
5431437
Unavailable
10
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
10
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
11
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
12
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
13
FITTING, OUTLET
7052042
$8.99
14
GROMMET RUBBER
5410021
Unavailable
15
BRACKET
5223985
Unavailable
16
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
16
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
17
SCREW(10)
7512279
$1.49
17
SCREW(10)
7512279
$1.49
17
SCREW(10)
7512279
$1.49
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
BRKT,AIR SILENCER,BLK.
5223973-067
Unavailable
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
21
SCREW(10)
7512222
$2.39
22
CLAMP,WIRE ROUTING(10)
7080409
$2.39
23
DECAL,FUEL SHUT-OFF
7073869
Unavailable
24
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
25
INTAKE FOAM ASM
1253115
Unavailable
26
INTAKE ASM, FOAM (Incl. Foam & Cover)
1253112
Unavailable
27
DECAL, GREASING [No Longer Available]
7073426
$7.27
28
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
29
CLIP, AIR BOX,(10)
7670055
$7.99
30
PLATE,SILENCER,AIR
5710039
$37.91
31
SILENCER, INTAKE
5431440
Unavailable
32
BRKT,INTAKE SIL.,BLK.
5222856-067
$9.11
33
BOOT,38MM,CTR.
5410699
Unavailable
34
CLAMP
7080494
Unavailable
35
BOOT,38MM,PTO.
5410713
$10.39
