HOOD ASSEMBLY Storm/0932770 and Storm SKS/0932570 (4923032303005A)

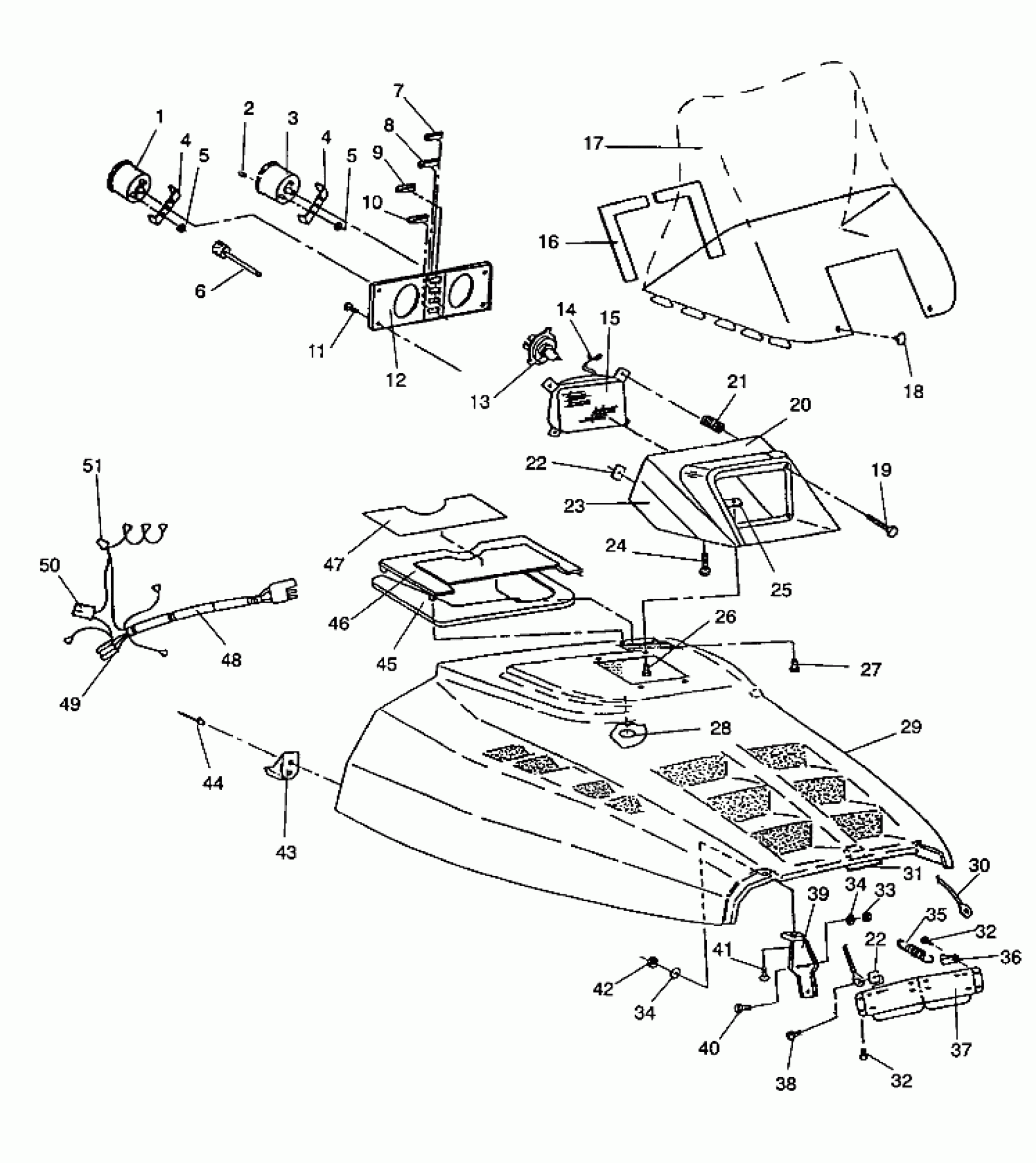

Polaris STORM - 0932770 HOOD ASSEMBLY Storm/0932770 and Storm SKS/0932570 (4923032303005A) Diagram
#
1
TACHOMETER, 6 PULSE (Incl. 4 & 5)
3280127
Unavailable
2
KNOB,TRIP ODOMETER
3280103
$3.83
3
SPEEDO,(120 MPH.) Substituted by 3280188 (Incl. 4 & 5)
3280138
Unavailable
4
BRACKET
3280098
Unavailable
4
BRACKET
3280098
Unavailable
5
NUT
3280063
Unavailable
5
NUT
3280063
Unavailable
6
CABLE,SPEEDO,W/FOIL
3280143
Unavailable
6
TAPE, FOIL (Not Shown)
5810840
Unavailable
7
INDICATOR'TEMP'WARN.
4040011
$32.37
8
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
9
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
10
INDICATOR,'ACC'WARN.
4040014
Unavailable
11
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
12
BEZEL, INST.
5430924
Unavailable
13
BULB,QUARTZ.H/L,INDY
2870448
$24.99
14
RETAINER,H/L BULB
4032063
Unavailable
15
HEADLIGHT ASM.
4032040
Unavailable
16
PAD,W/S,LH,BLACK
5810437
Unavailable
16
PAD,W/S,RH,BLACK
5810438
$1.67
17
WINDSHIELD,SMOKE,STD(LIQ) (SKS)
5431144
$134.99
17
WINDSHIELD,LOW,BLK. (Storm)
5431447
Unavailable
18
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
19
SCREW, ADJ.(10)
4032003
Unavailable
20
HSG,INST,TOP,BLK
5430923-070
Unavailable
21
SPRING-ADJ
4032002
Unavailable
22
NUT, SPEED(10)
7670056
Unavailable
22
NUT, SPEED(10)
7670056
Unavailable
23
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
24
SCREW(10)
7512009
Unavailable
25
NUT, SPEED(10)
7670057
$1.49
26
SCREW, SEMS(10)
7512283
$3.99
27
SCREW(10)
7511840
Unavailable
28
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
29
HOOD,LIQ.BLK.METALLIC Substituted by 2631574-177 (Incl. Foam & Foil)
5431194-177
Unavailable
30
CABLE, HOOD RETAINER Substituted by 7080360
7080495
$24.27
31
SHIELD,HEAT,CTR.HD. Substituted by 5240352-029
5222985-029
Unavailable
32
SCREW(10) (SKS)
7511861
Unavailable
32
SCREW(10) (Storm)
7511861
Unavailable
32
SCREW(10) (SKS)
7511861
Unavailable
32
SCREW(10) (Storm)
7511861
Unavailable
33
NUT-LOCK(10)
7542122
$1.49
34
WASHER,WROUGHT(10)
7558302
$1.59
34
WASHER,WROUGHT(10)
7558302
$1.59
35
SPRING,HOOD CABLE
7041202
Unavailable
36
CLAMP, RETAINER(10)
7080372
$3.99
37
PLATE,RE-INF.,(HD.)
5222105
$49.51
38
SCREW(10)
7511989
Unavailable
39
HINGE ASM,HD,BLK
2635005-067
$16.67
40
BOLT(10)
7512193
$2.39
41
BOLT-CARRIAGE(10)
7512263
$3.99
42
NUT, LOCK(10)
7542103
$5.59
43
CUP, HOOD LATCH,(10)
5430733
$4.84
44
RIVET(50)
7621334
$1.49
45
SEAL, INTAKE
5810597
Unavailable
46
PANEL,INTAKE,BLK.METAL. Substituted by 2620078-177
5431195-177
Unavailable
47
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
48
HARNESS,HEADLIGHT
2460382
Unavailable
49
HOUSING
4020052
Unavailable
50
Housing
4020115
$1.59
51
HOUSING
4020114
Unavailable
