FRONT SUSPENSION and SKI Storm/0932770 and Storm SKS/0932570 (4923032303011A)

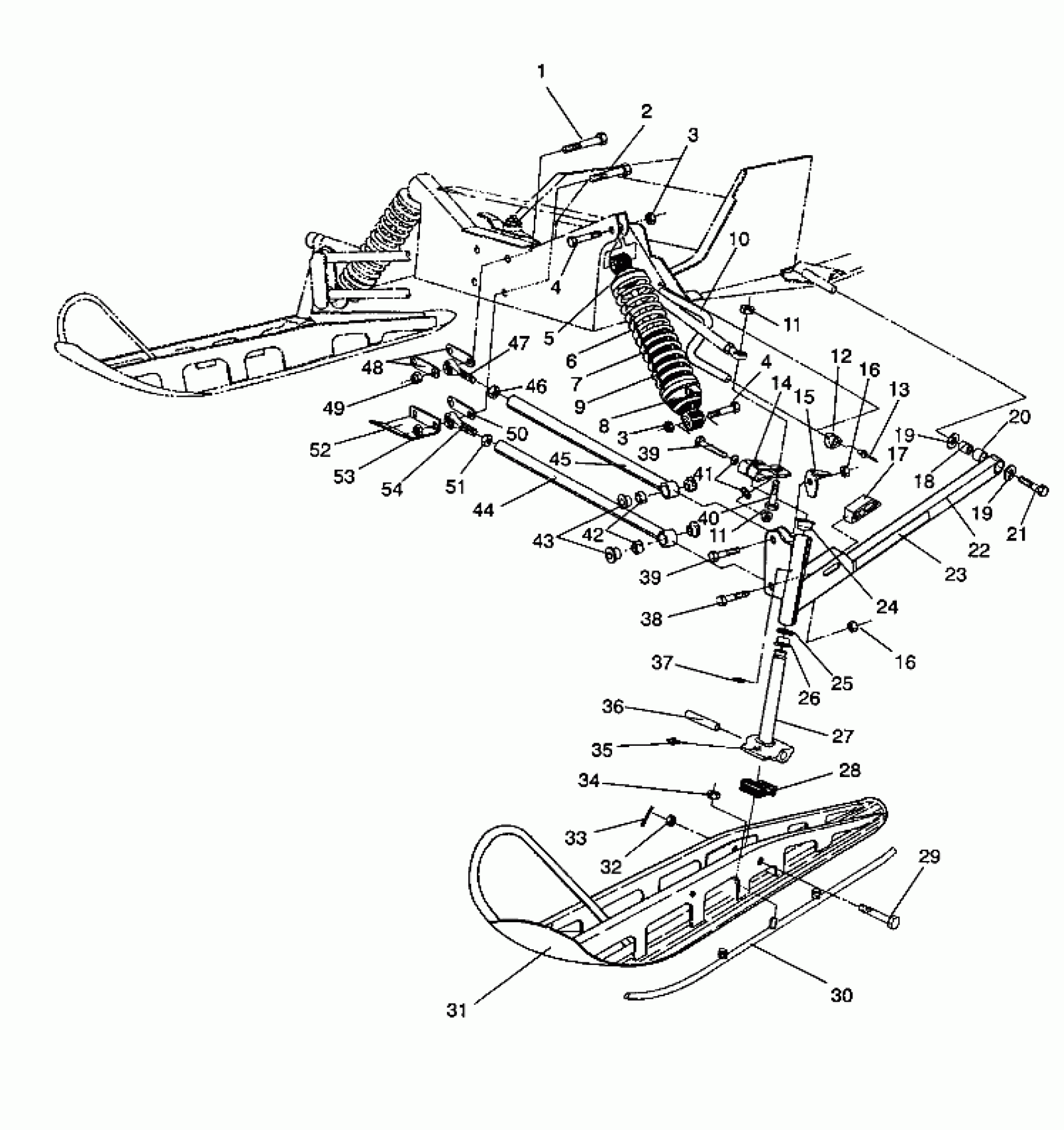

Polaris STORM - 0932770 FRONT SUSPENSION and SKI Storm/0932770 and Storm SKS/0932570 (4923032303011A) Diagram
#
1
BOLT(10)
7512551
Unavailable
1
BOLT(10)
7512551
Unavailable
2
BOLT(10)
7512656
$6.23
3
NUT, NYLOC(10)
7542453
Unavailable
3
NUT, NYLOC(10)
7542453
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
5
RETAINER-TOP
5220225
$10.39
6
SPRING,COMP.BLK,(IFS)
7041287-067
Unavailable
7
SLEEVE,SPRING PROTECTOR
5431032
$31.99
8
SHOCK,GAS/CAM,IFS (Storm)
7041288
Unavailable
8
SHOCK,FRONT (SKS)
7041251
Unavailable
9
CAM,ADJUSTING SPRING
5630334
$32.37
10
BAR,SWAY,BLACK (SKS)
5224237-067
Unavailable
10
BAR, SWAY, (BLK.) (Storm)
5224240-067
$49.21
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
BUSHING-SWAYBAR (SKS)
5410383
Unavailable
12
BUSHING,SWAYBAR (Storm)
5410386
Unavailable
13
RIVET,(50)
7621477
$1.19
14
ARM,STEERING,BLK. Substituted by 1012423-067
5222873-067
Unavailable
15
STOP,STRG,RH,BLK.
5222875-067
Unavailable
15
STOP,STRG,LH,BLK.
5222874-067
Unavailable
16
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
16
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
17
SLIDE-SWAYBAR (SKS)
5410384
Unavailable
17
SLIDE,(FR.SUSP.) (Storm)
5410385
Unavailable
18
TUBE,TRAILING ARM
5010187
Unavailable
19
WASHER(10)
7555721
$1.49
19
WASHER(10)
7555721
$1.49
20
PIVOT-TRAILING ARM
5410382
Unavailable
21
BOLT(10)
7512557
$7.60
22
ARM,TRAIL,LH,BLK. Substituted by 1822187
1822115-067
Unavailable
22
ARM,TRAIL,RH,BLK. Substituted by 1822188
1822116-067
Unavailable
23
DECAL,LH,IFS [No Longer Available]
7073537
Unavailable
23
DECAL,RH,IFS [No Longer Available]
7073538
Unavailable
24
BUSHING-FLANGE
3573909
$2.39
25
WASHER SPECIAL(10)
7556509
$1.59
26
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
27
SPINDLE, BLK.
6230073-067
Unavailable
28
STOP-RUBBER
5521094
Unavailable
29
BOLT(10)
7515462
$8.79
30
SKAG,PR.,CARBIDE (Pair)
2870693
$69.99
31
SKI WELD, BLK
1820332-067
Unavailable
32
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
33
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
34
NUT, NYLOK(10)
7542327
$4.79
35
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
36
BUSHING,PIVOT,(10)
5010158
$19.99
37
ZERK,FITTING,THREADED(10)
7080433
$1.49
38
BOLT(10) Substituted by 7515540
7515492
$4.62
39
BOLT(10) Substituted by 7517583
7515491
Unavailable
39
BOLT(10) Substituted by 7517583
7515491
Unavailable
40
BOLT Substituted by 7512404
7515490
Unavailable
42
BUSHING-RADIUS ROD,(10)
5010127
$7.99
43
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
44
ROD,RAD.LOW. (SKS)
1822123-067
Unavailable
44
ROD,RAD.LOW.(STORM) (Storm)
1822102-067
Unavailable
45
ROD,RAD.UP. (SKS)
1822121-067
Unavailable
45
ROD,RAD.UPPER(STORM) (Storm)
1822099-067
$40.32
46
NUT JAM(10)
7542520
$2.39
47
ROD END, RH Substituted by 7061010
7060155
Unavailable
48
STRAP,SPACER TOP
5211344
$7.27
49
NUT, LOCK,(10)
7542503
$10.39
50
STRAP,SPACER BOTTOM
5211345
$12.99
51
NUT-JAM(10)
7542711
$2.39
52
BRACE, PAN
5223997-067
Unavailable
53
NUT FLEX,(10)
7542703
Unavailable
54
ROD END,RH Substituted by 7061011
7060156
Unavailable
