CYLINDER and MANIFOLD ASSEMBLY Storm/0930782 and Storm SKS/0930582 (4923032303029A)

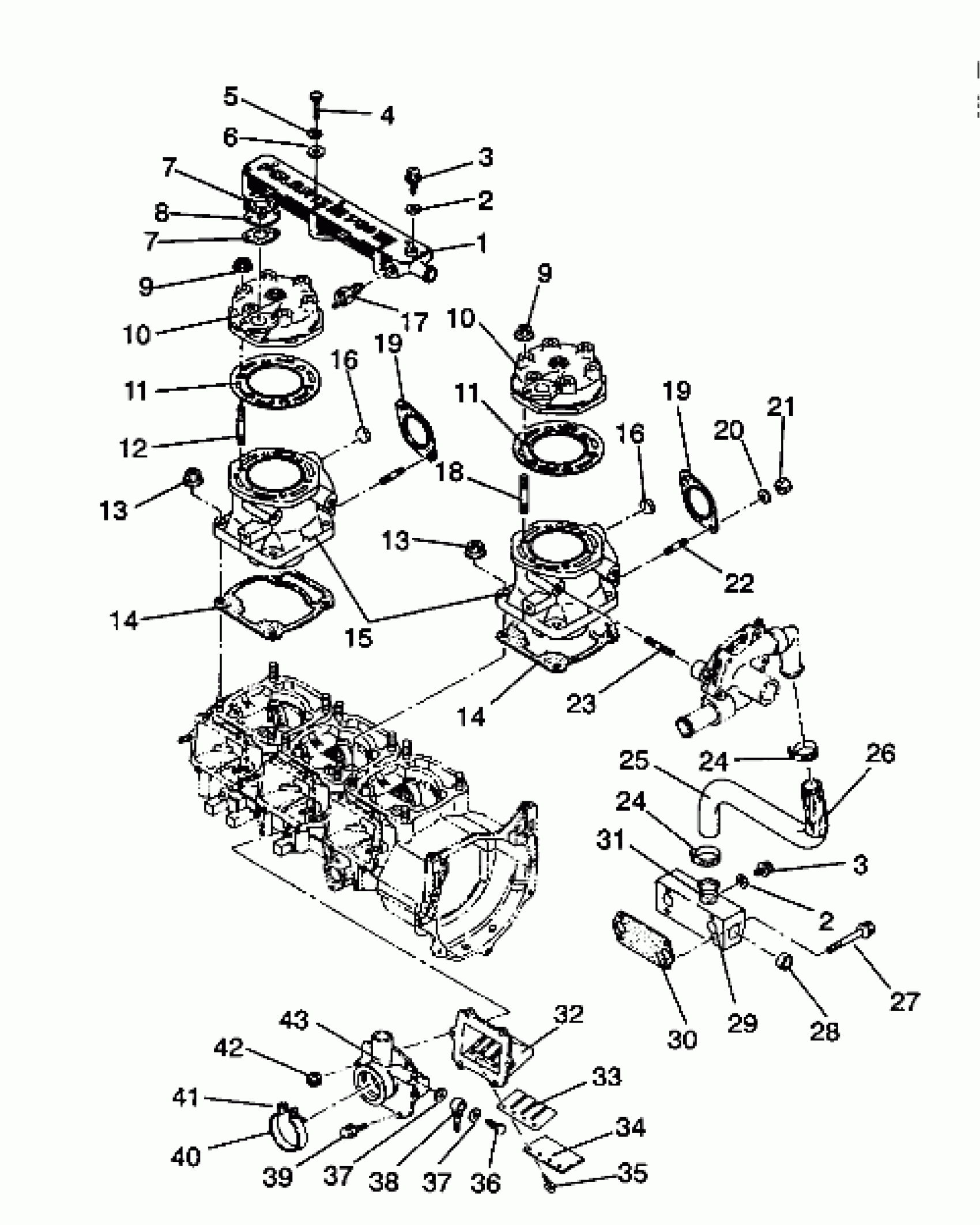

Polaris STORM - 0932770 CYLINDER and MANIFOLD ASSEMBLY Storm/0930782 and Storm SKS/0930582 (4923032303029A) Diagram
#
1
MANIFOLD,WATER OUTLET
3084532
$164.99
2
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
2
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
3
PLUG, AIR VENT Substituted by 7517266
3083350
Unavailable
3
PLUG, AIR VENT Substituted by 7517266
3083350
Unavailable
4
DESC NOT_AVAILABLE
7516803
Unavailable
5
WASHER,LOCK Substituted by 7552804
7552616
Unavailable
6
WASHER,FLAT(10)
7555872
$3.99
7
GASKET(10)
3082937
Unavailable
7
GASKET(10)
3082937
Unavailable
8
DESC NOT_AVAILABLE
5211411
Unavailable
9
NUT-FLANGE(10)
3082910
$2.39
9
NUT-FLANGE(10)
3082910
$2.39
10
HEAD, CYLINDER
3084526
$157.13
10
HEAD, CYLINDER
3084526
$157.13
11
GASKET, HEAD
3084527
Unavailable
11
GASKET, HEAD
3084527
Unavailable
12
Stud
3084138
Unavailable
13
NUT-FLANGE(10)
3082911
$1.99
13
NUT-FLANGE(10)
3082911
$1.99
14
GASKET, CYLINDER
3084525
Unavailable
14
GASKET, CYLINDER
3084525
Unavailable
15
CYLINDER, CPL. (Incl. 16, 19, 22 & 23)
3084523
$484.99
16
PLUG
3084428
$3.51
16
PLUG
3084428
$3.51
17
SWITCH,THERMAL(93 DEG.C.) (93
3083055
Unavailable
19
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
19
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
20
WASHER LOCK ,(10)
3080530
$3.19
21
NUT(10)
3080285
Unavailable
22
STUD (10)
3080016
$5.75
23
STUD
3084524
Unavailable
24
CLAMP, HOSE
3083394
Unavailable
24
CLAMP, HOSE
3083394
Unavailable
25
HOSE, MAIN Substituted by 3084665
3084534
Unavailable
26
TAPE,FOIL,(3.5X4.5)
5810872
Unavailable
27
BOLT(10)
3082030
$3.97
28
PLUG,CYL.HEAD
3084529
Unavailable
29
MANI.,INLET WATER (Incl. 28 & 32)
3084528
Unavailable
30
GASKET,WATER MANI.INLET
3084531
$0.75
31
PIPE 3,WATER
3084530
Unavailable
32
VALVE ASM,REED (Incl. 33-35)
3084536
$95.19
33
VALVE, REED
3084563
$19.83
34
Stopper
3084564
$19.03
35
SCREW, REED
3084565
$3.29
36
BOLT-BANJO
3083137
Unavailable
37
WASHER(10) Substituted by 7555998
3083138
Unavailable
37
WASHER(10) Substituted by 7555998
3083138
Unavailable
38
VALVE, CHECK
3083894
Unavailable
39
BOLT, FLANGE(10)
3084566
$3.19
40
BAND ASM.
3083166
$19.84
41
SCREW Substituted by 3081497
3083086
Unavailable
42
NUT, FLANGE(10)
3083856
$2.39
43
ADAPTER Substituted by 3085248
3084535
Unavailable
