CARBURETOR ASSEMBLY Storm/0932770 and Storm SKS/0932570 (4923032303032A)

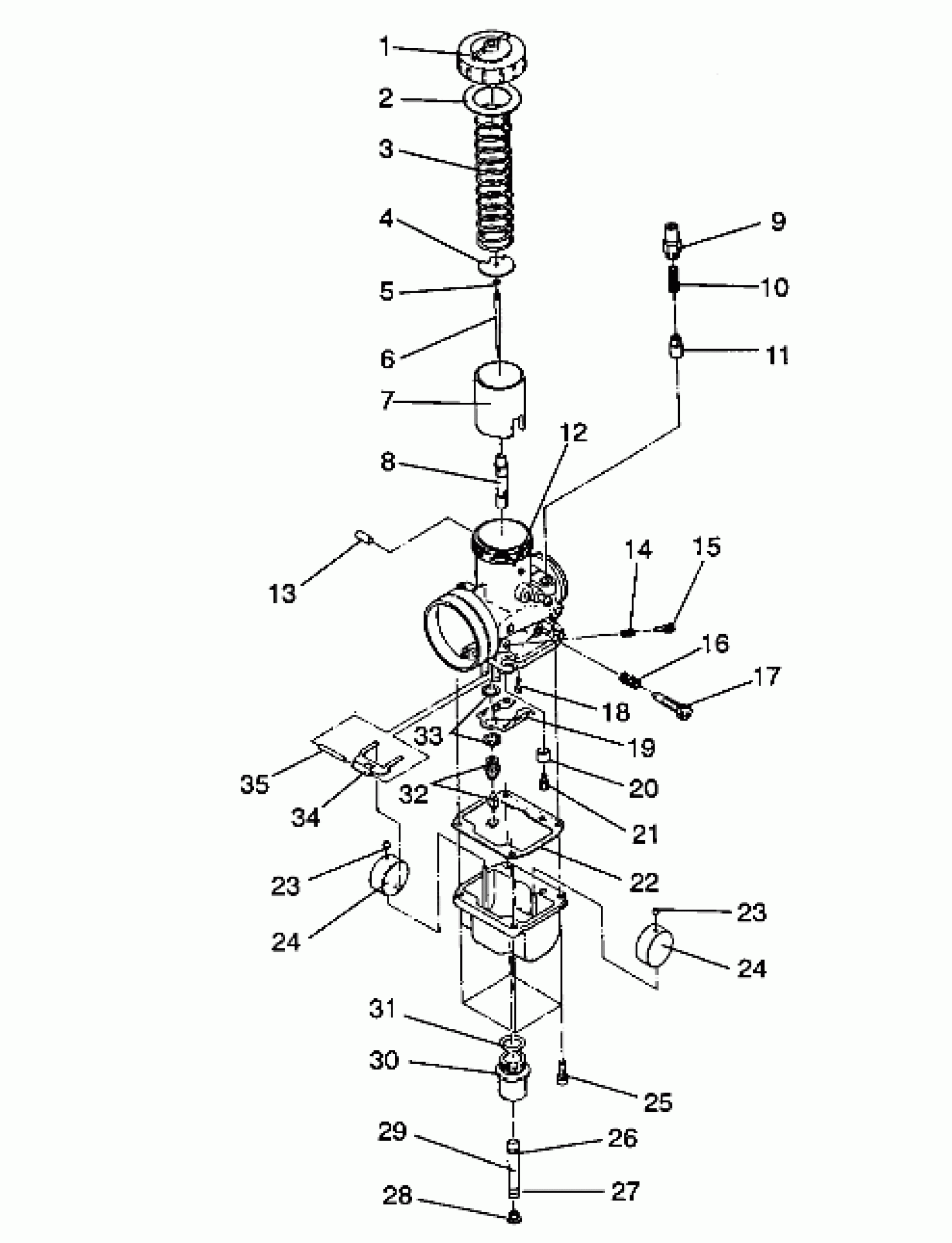

Polaris STORM - 0932770 CARBURETOR ASSEMBLY Storm/0932770 and Storm SKS/0932570 (4923032303032A) Diagram
#
Description
Price
1
TOP ASM (Incl. 2)
3130184
$32.37
2
GASKET
-------
Unavailable
3
SPRING,THROTTLE
3130444
Unavailable
4
PLATE, THROTTLE
3130054
$6.46
5
E RING(10) Substituted by 3130508
3130003
Unavailable
6
JET NEEDLE
3130476
$24.27
7
VALVE, THROTTLE,2.5 (2.5)
3130454
Unavailable
8
NEEDLE JET (R-0)
3130477
$19.97
9
HOLDER,GUIDE
3130199
$28.32
10
SPRING,PLUNGER
3130006
$8.89
11
PLUNGER ASM, STARTER
3130328
$32.37
12
CARBURETOR (Incl. 1-25, 30-35)
3130475
Unavailable
13
CAP,VACUUM FIT
3130379
$6.63
14
SPRING,AIR ADJUST
3130012
$8.89
15
SCREW,AIR
3130011
$19.99
16
SPRING,THROTTLE ADJ.
3130010
$8.89
17
SCREW,THROTTLE STOP
3130009
$19.99
18
JET,PILOT,#35(10) (#35)
3130066
$8.89
19
PLATE
3130243
Unavailable
20
RING,CARB
3130232
Unavailable
21
JET,MAIN,#330 Substituted by 3130136 (#330)
3130478
Unavailable
22
GASKET,FLOAT CHAMBER
3130236
$12.13
23
CAP,(10)
3130237
$4.03
23
CAP,(10)
3130237
$4.03
24
FLOAT ASM
3130021
$40.46
24
FLOAT ASM
3130021
$40.46
25
SCREW
3130056
$3.19
26
CLAMP-HOSE,(10) (Yellow)
7080236
$1.59
27
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
28
PLUG, TRAP Substituted by 5431893
5431001
Unavailable
29
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
30
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
31
O RING
3130239
Unavailable
32
VALVE ASM,NEEDLE Substituted by 3130643 (1.5)
3130046
$56.65
33
WASHER(10)
3130047
$4.84
34
ARM,FLOAT
3130048
Unavailable
35
PIN, FLOAT Substituted by 3130361
3130235
$8.89
