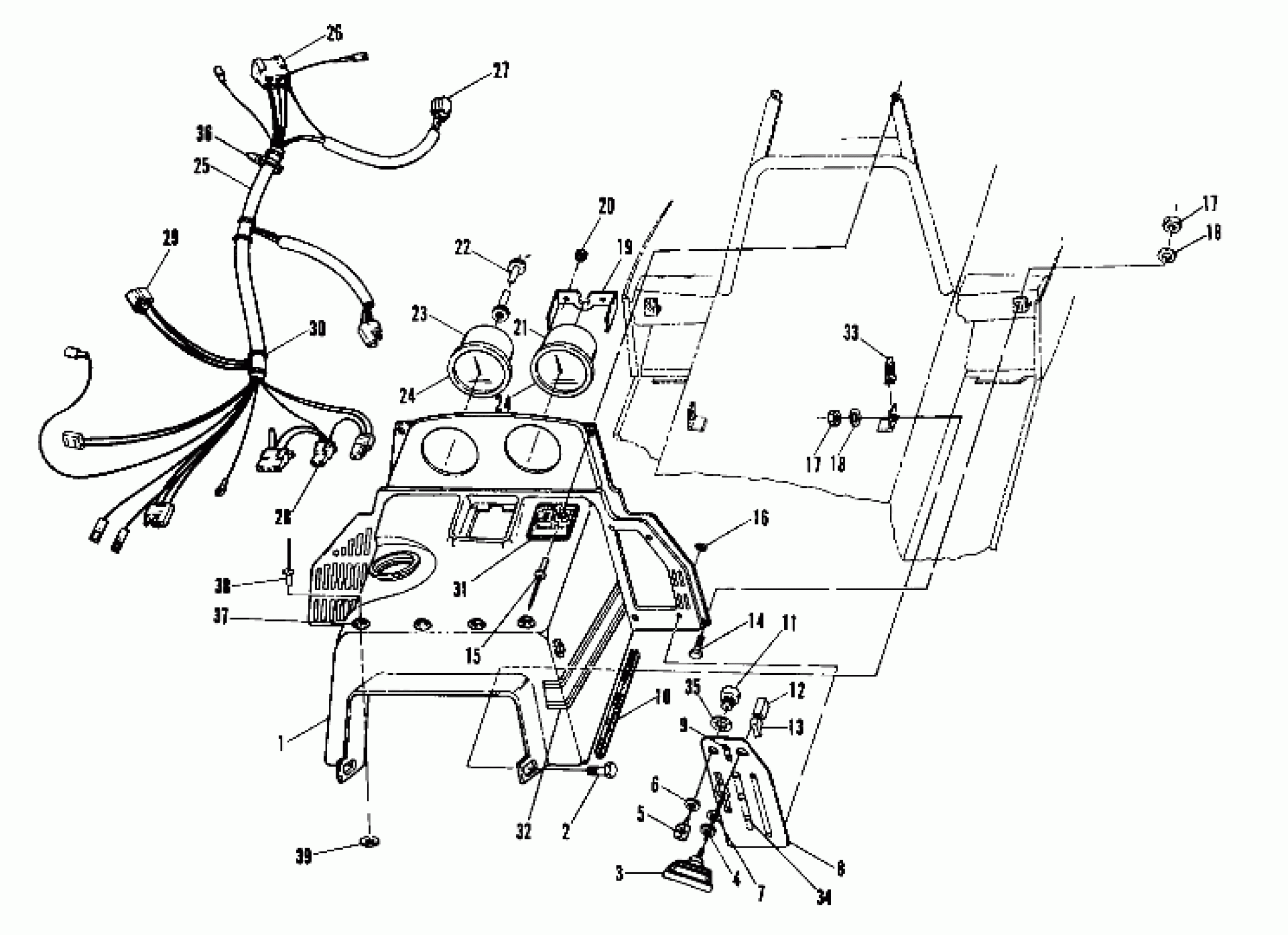

Polaris SS - 0851349 Console (4909540954005A) Diagram
#
-
CONSOLE Substituted by 5430677 (SS)
5430727
Unavailable
1
CONSOLE-TANK COVER [No Longer Available] (STAR)
5430677
Unavailable
2
SCREW(10) (Star)
7511989
Unavailable
2
SCREW,(10) (SS)
7511997
Unavailable
3
HANDLE-RECOIL
5430520
Unavailable
4
Nut
7080229
$19.99
5
KEY, IGNITION
5410378
$13.75
6
NUT-IGNITION SWITCH
7542807
Unavailable
7
WASHER-LOCK(10)
7571610
$3.99
8
INSERT-RECOIL CONSOLE [No Longer Available]
5430605
Unavailable
9
DECAL,IGNITION SWITCH [No Longer Available] (SS)
7072111
Unavailable
9
DECAL-IGN.SWITCH [No Longer Available] (Star)
7071744
Unavailable
10
REINFORCE.-CONSOLE [No Longer Available]
5220337
Unavailable
11
SWITCH IGNITION
4110038
$44.51
12
CHOKE CABLE-SINGLE
7080206
Unavailable
13
KIT-CHOKE CONTROL
2200188
$24.27
14
SCREW(10)
7511990
Unavailable
15
RIVET(50)
7621462
$1.49
16
PALNUT(10)
7670009
$2.39
17
NUT(10)
7541925
$1.49
17
NUT(10)
7541925
$1.49
18
WASHER(10)
7558203
$3.19
18
WASHER(10)
7558203
$3.19
19
BRACKET [No Longer Available] (SS)
3280062
Unavailable
20
NUT (SS)
3280063
Unavailable
21
TACHOMETER Substituted by 3280070 (SS)
3280078
Unavailable
22
CABLE-SPEEDO (SS)
3280052
Unavailable
23
SPEEDOMETER [No Longer Available] (SS)
3280071
Unavailable
24
KIT-GLASS&BEZEL [No Longer Available] (Replacement) (SS)
2200205
Unavailable
24
KIT-GLASS&BEZEL [No Longer Available] (Replacement) (SS)
2200205
Unavailable
25
HARNESS.WIRE [No Longer Available] (Incl. 26-30) (STAR)
2460231
Unavailable
25
HARNESS, WIRE (Incl. 26-30) (SS)
2460230
Unavailable
26
HOUSING, W/TABS [No Longer Available]
2200074
Unavailable
27
KIT-HOUSING
2200044
Unavailable
28
KIT.2 CKT.HOUSING [No Longer Available]
2200163
Unavailable
29
HOUSING 2 CIRCUIT W/REC [No Longer Available]
2200020
Unavailable
30
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
Unavailable
31
EMBLEM, 30 YR.,GOLD (Star)
5430740
Unavailable
31
EMBLEM, 30 YR.,SILVER [No Longer Available] (SS)
5430741
Unavailable
32
DECAL, TANK COVER [No Longer Available] (SS)
7072071
Unavailable
32
DECAL, STRIPE [No Longer Available] (Star)
7072070
Unavailable
33
U CLIP (SS)
7670049
Unavailable
34
DECAL SIGHT GAUGE [No Longer Available]
7071847
Unavailable
35
PUSH NUT, IGNITION
7670048
Unavailable
36
CLIP-BUTTON [No Longer Available]
4020127
Unavailable
37
SNAP-MALE(10) (SS)
7080227
Unavailable
38
RIVET,(10) (SS)
7621215
Unavailable
39
BURR, RIVET(50) [No Longer Available] (SS)
7555722
Unavailable
