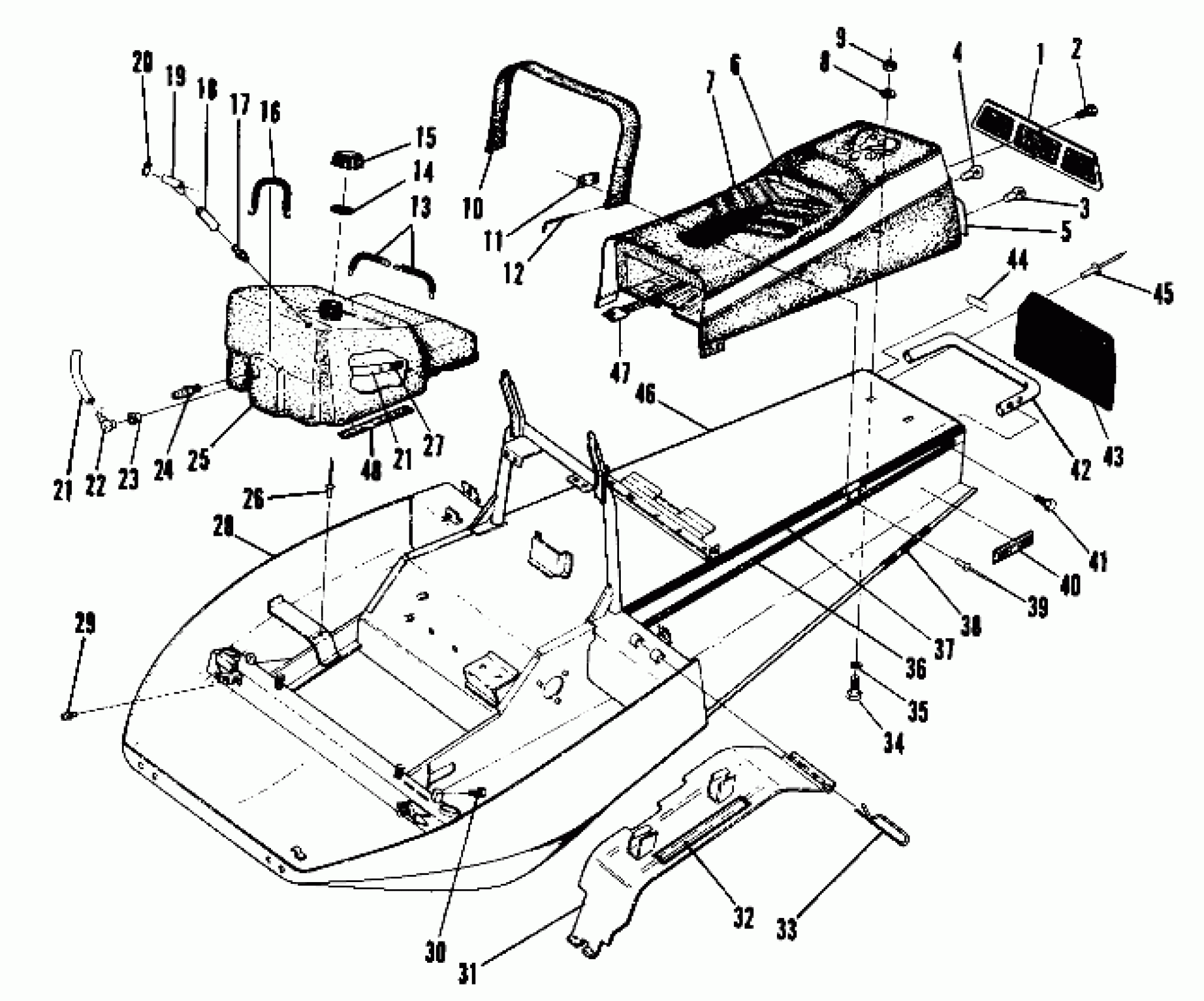

Polaris SS - 0851349 Chassis and Seat (SS) (4909540954002A) Diagram
#
1
LENS,TAILLIGHT
5430423
Unavailable
2
SCREW(10)
7511840
Unavailable
3
BULB TAILLIGHT(10)
4030015
$4.03
4
BULB, BRAKELIGHT
4030019
Unavailable
5
HOUSING,TAILLIGHT
5430425
Unavailable
6
SEAT ASM., SS [No Longer Available]
2681215
Unavailable
7
COVER,SEAT SS [No Longer Available]
2681216
Unavailable
8
WASHER(10)
7558221
$2.39
9
NUT-LOCK(10)
7542122
$1.49
10
BELT, SEAT
7080323
Unavailable
11
PLATE-SEAT BELT
5210842
Unavailable
12
WIRE-SEAT-BELT
5223864
Unavailable
13
SPRING,TANK,(10)
7042020
$13.75
14
GASKET-GAS CAP
5810144
$5.59
15
CAP, GAS, (BLACK)
5430725
$24.27
16
SPRING-TANK [No Longer Available]
7042021
Unavailable
17
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
18
KIT-TANK VENT Substituted by 2200190
5420153
Unavailable
19
TEE-FUEL
7052035
Unavailable
20
CLAMP-HOSE(10)
7080134
Unavailable
21
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
21
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
22
FITTING-TANK (Incl. 23)
7052036
Unavailable
23
GROMMET-TANK FITTING(10)
7052028
$6.39
24
FITTING - OUTLET(10)
7052023
$24.99
25
TANK, GAS [No Longer Available] (Incl. 17-24, 27)
2511158
Unavailable
26
POP RIVET(50)
7621402
$1.49
27
FUELPICKUP,W/STRAINER
7052037
$12.94
28
NOSEPAN [No Longer Available]
1011484
Unavailable
29
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
30
SCREW(10)
7512497
Unavailable
31
GUARD, CLUTCH [No Longer Available]
1011491
Unavailable
32
DECAL, WARNING [No Longer Available]
7072086
Unavailable
33
PIN,RETAINING,(10)
7080216
$9.70
34
BOLT(10)
7512103
$3.19
35
WASHER,WROUGHT(10)
7558302
$1.59
36
DECAL,TUNNEL,SS [No Longer Available]
7072068
Unavailable
36
DECAL,TUNNEL,SS [No Longer Available]
7072069
Unavailable
37
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
38
ANTI-SLIP [No Longer Available]
5810280
Unavailable
39
POP RIVET(50)
7621323
$1.49
40
REFLECTOR RED
2670070
$9.91
41
SCREW(10)
7512252
Unavailable
42
BUMPER-REAR [No Longer Available]
5224228
Unavailable
43
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
44
DECAL, TRACK Substituted by 7072872
7072132
Unavailable
45
RIVET(50)
7621457
$1.49
46
CHASSIS, SS [No Longer Available]
1011512
Unavailable
47
HARNESS, TAILLIGHT [No Longer Available]
2460244
Unavailable
48
PAD, GAS TANK [No Longer Available]
5810271
Unavailable
