SEAT and GAS TANK SPORT 0980443 and SPORT TOURING 0980243 (4942054205A007)

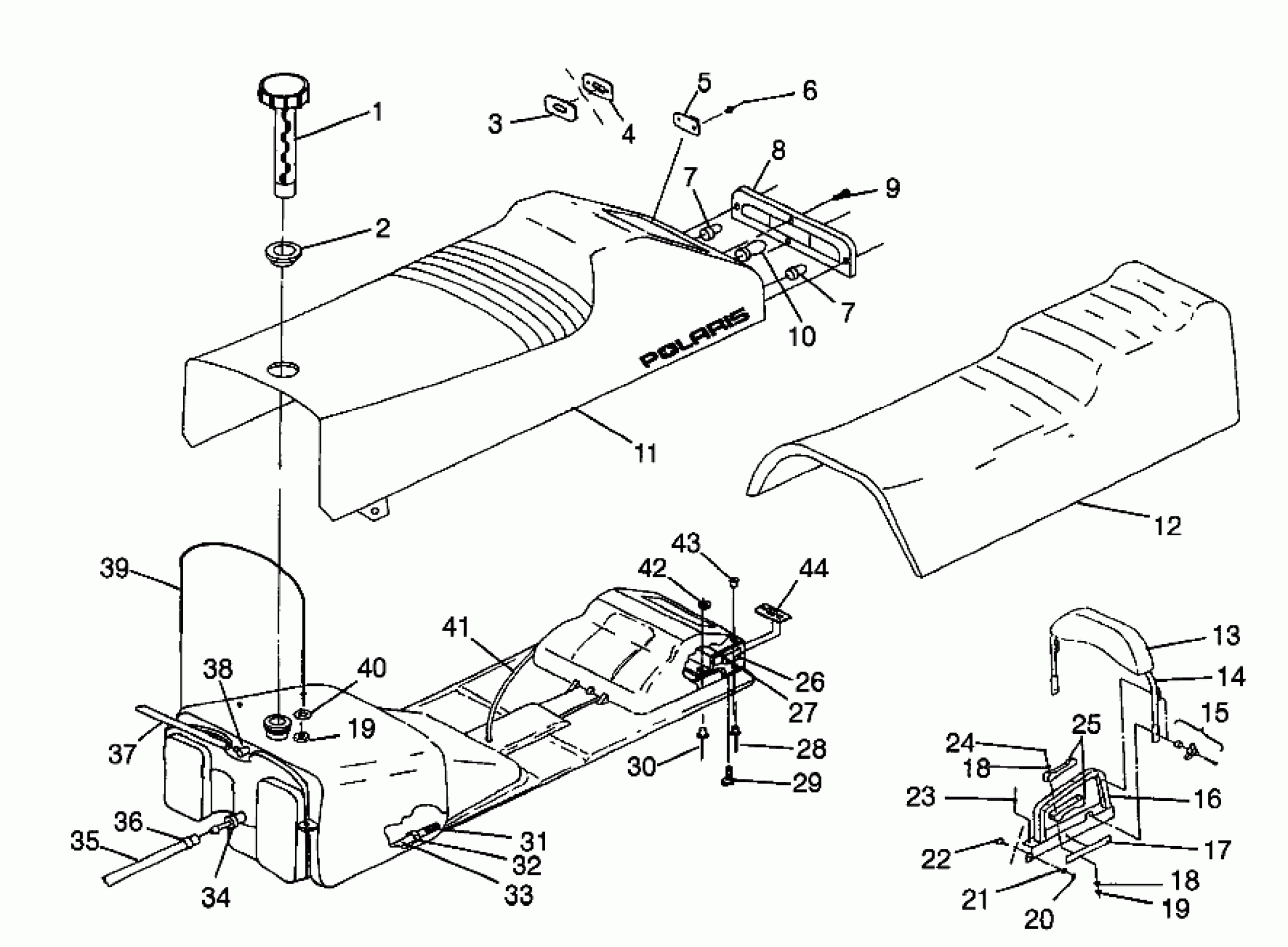

Polaris SPORT - 0980443 SEAT and GAS TANK SPORT 0980443 and SPORT TOURING 0980243 (4942054205A007) Diagram
#
1
GASKET, GAS CAP
5810513
$8.89
1
CAP,GAS,W/GAUGE
2511248
$44.51
2
GROMMET,FUELTANK
5410842
Unavailable
3
GROMMET,RELATCH,1",BOTT.(10) (Sport)
7080550
Unavailable
4
GROMMET,RELATCH,1",TOP(10) (Sport)
7080549
Unavailable
5
TWISTLOCK,RELATCH,1",W/HOLE(10) (Sport)
7080548
Unavailable
6
RIVET(50) (Sport)
7621337
$1.49
7
BULB,TAILLIGHT(10)
4030024
$4.84
7
BULB,TAILLIGHT(10)
4030024
$4.84
8
LENS,TAILLIGHT
5430423
Unavailable
9
SCREW(10)
7511840
Unavailable
10
Bulb, Brakelight
4030045
Unavailable
11
COVER ASM,SEAT (Touring)
2682252
Unavailable
11
COVER ASM,SEAT (Sport) (Incl. 3-6)
2682253
Unavailable
12
SEAT ASM. (Sport) (Incl. 2-11, 26-28, 31, 32, 34, 37-43)
2682260
Unavailable
12
SEAT ASM. (Touring) (Incl. 2-11, 26-28, 31, 32, 34, 37-43)
2682261
Unavailable
13
COVER, BACKREST (Touring)
2681265
$257.13
14
BACKREST ASM. (Incl. 13) (Touring)
2681356
$284.75
15
KNOB ASM,BACKREST (Touring)
2670130
Unavailable
16
BAR,GRAB,LH,BLK. (Touring)
1011729-067
Unavailable
16
BAR,GRAB,RH,BLK. (Touring)
1011730-067
Unavailable
17
REFLECTOR RED (Touring)
2670070
$9.91
18
WASHER,13/64X1/2X18GA,FL-Y (Touring)
7558212
$1.49
18
WASHER,13/64X1/2X18GA,FL-Y (Touring)
7558212
$1.49
19
NUT(10) (Touring)
7541925
$1.49
19
NUT(10)
7541925
$1.49
19
NUT(10) (Touring)
7541925
$1.49
19
NUT(10)
7541925
$1.49
20
NUT, NYLOK(10) (Touring)
7542327
$4.79
21
WASHER-.344X.688X.063 FL-Y (Touring)
7558402
$1.49
22
BOLT(10) Substituted by 7512325 (Touring)
7515363
Unavailable
23
RIVET-3/16-.090-.290 (Touring)
7661637
$1.49
24
SCREW(10) (Touring)
7510504
$6.76
25
GRIP, HAND Substituted by 5433383 (Touring)
5431015
$19.68
26
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
27
COVER,T/L PROTECTOR
5431436
$21.43
28
RIVET(50)
7621301
$3.99
29
SCREW(10)
7512242
$2.39
30
RIVET(50)
7621464
$3.99
31
FUELPICKUP,W/STRAINER
7052037
$12.94
32
RING, COMPRESSION(10)
7080402
$1.60
33
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
34
FITTING - OUTLET(10)
7052023
$24.99
35
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
36
HOSE CLAMP, RED
7080003
$1.49
37
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
37
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
38
FITTING,90 DEG,1/8,(10)
7052095
$4.79
39
CABLE,TANK,RETENTION
7080559
Unavailable
40
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
41
HARNESS,TAILLIGHT
2460398
Unavailable
42
BURR,RIVET(50)
7555904
$1.49
43
CLIP,DART,(10)
7670097
Unavailable
44
NUT,RETAINER-WELD.(10)
7542147
$17.59
