OIL TANK / AIR BOX SPORT 0980443 and SPORT TOURING 0980243 (4942054205C005)

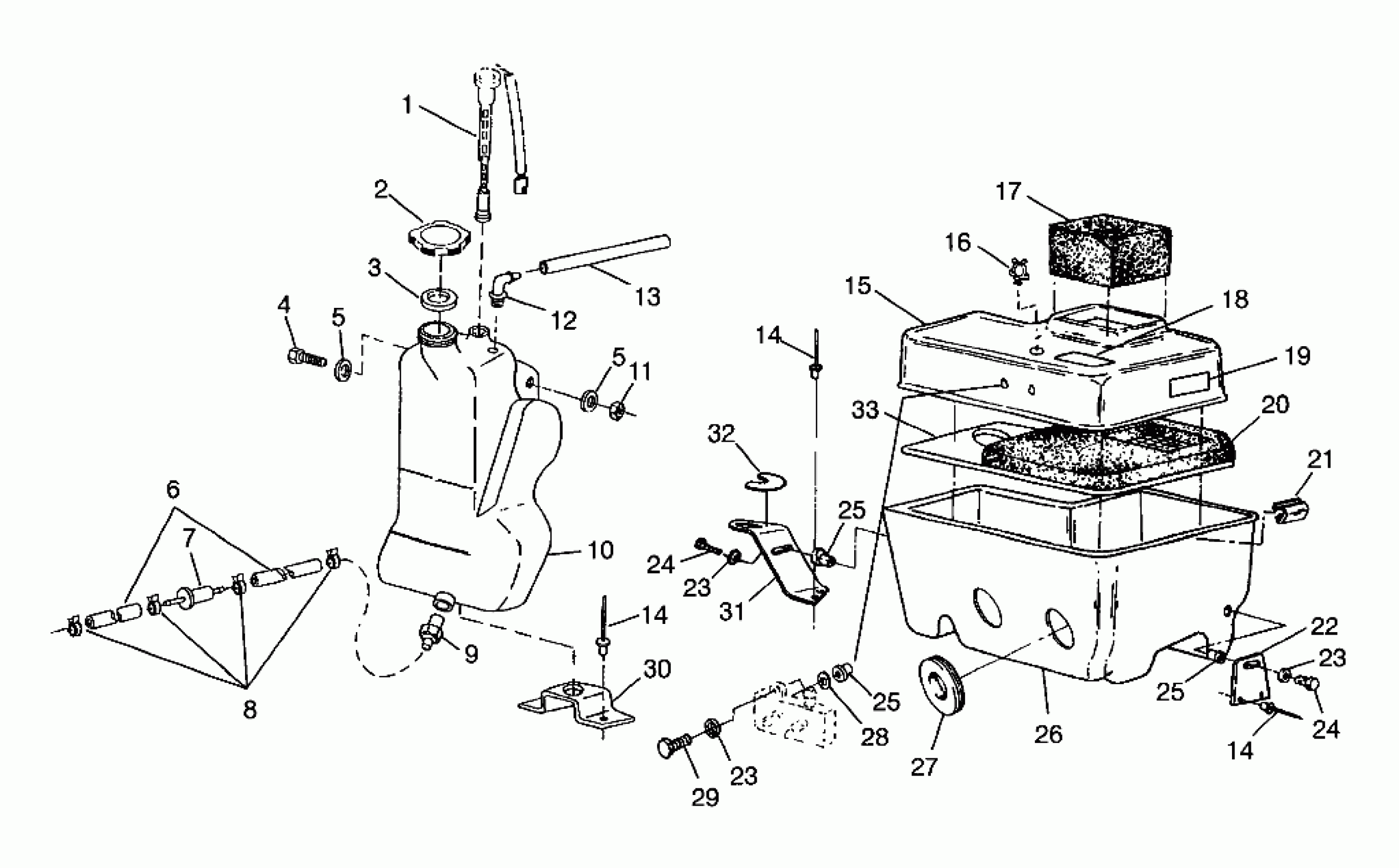

Polaris SPORT - 0980443 OIL TANK / AIR BOX SPORT 0980443 and SPORT TOURING 0980243 (4942054205C005) Diagram
#
Description
Price
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512240
$3.99
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
7
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
8
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
9
FITTING, OUTLET
7052042
$8.99
10
Tank, Oil
5431437
Unavailable
11
NUT-LOCK(10)
7542122
$1.49
12
FITTING,90 DEG,1/8,(10)
7052095
$4.79
13
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
13
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
15
COVER,SILENCER,DRILLED
5432243
Unavailable
16
CLIP, PLASTIC(10)
4020139
$4.79
17
INTAKE ASM, FOAM
1253107
$36.41
18
DECAL,CAUTION,AIRBOX
7075351
Unavailable
19
DECAL, GREASING [No Longer Available]
7073426
$7.27
20
BAFFLE ASM. (Incl. 33)
1253102
$64.75
21
CLIP, AIR BOX,(10)
7670055
$7.99
22
BRACKET, SILENCER
5211274
$9.70
23
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
23
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
23
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
24
SCREW(10)
7512279
$1.49
24
SCREW(10)
7512279
$1.49
25
NUT-WELL(10)
7541923
$5.59
25
NUT-WELL(10)
7541923
$5.59
25
NUT-WELL(10)
7541923
$5.59
26
SILENCER,INTAKE,DRILLED
5432137
Unavailable
27
BOOT
5410403
$12.99
28
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
29
SCREW(10)
7512222
$2.39
30
BRKT,OILTANK,COINED
5241334
$9.70
31
BRKT,AIR SILENCER,W/TAB,BLK.
5240824-067
Unavailable
32
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
33
PLATE,AIR SILENCER
5850075
$24.27
