FRONT SUSPENSION and SKI - 0980443 (4942054205b001)

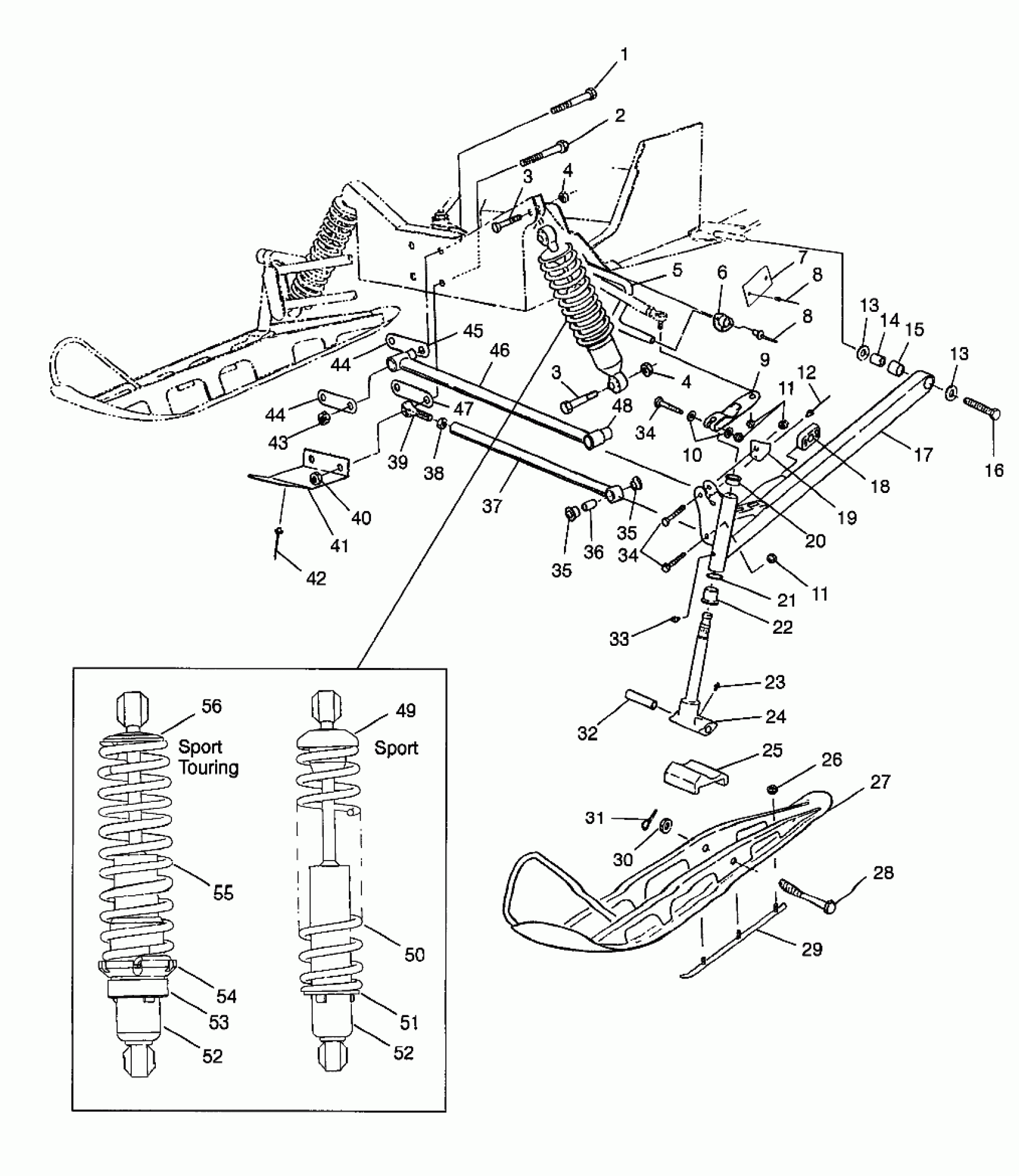

Polaris SPORT - 0980443 FRONT SUSPENSION and SKI - 0980443 (4942054205b001) Diagram
#
1
BOLT(10)
7512582
$8.79
2
BOLT(10)
7512684
Unavailable
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
5
BAR,SWAY (Touring)
5224757-067
Unavailable
6
BUSHING,SWAYBAR,9/16 Substituted by 5432412 (Touring)
5432886
$15.87
7
PLATE,TORS.BAR,HOLE (Sport)
5211771
$4.78
8
RIVET(50) (Sport)
7621433
$1.49
8
RIVET(50) (Touring)
7621433
$1.49
8
RIVET(50) (Sport)
7621433
$1.49
8
RIVET(50) (Touring)
7621433
$1.49
9
ARM,STRG,BLK
5241560-067
Unavailable
10
WASHER(10) Substituted by 7555832
7555851
Unavailable
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
RIVET(50) Substituted by 7661130
7661643
Unavailable
13
WASHER(10)
7555721
$1.49
13
WASHER(10)
7555721
$1.49
14
TUBE, BUSHING
5010310
$9.70
15
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
16
BOLT(10)
7512557
$7.60
17
ARM,TRLG,LH Substituted by 2201319 (Incl. 14,15)
1822366
$344.99
17
ARM,TRLG,RH Substituted by 2201320 (Incl. 14,15)
1822367
Unavailable
18
SLIDE,SWAYBAR,9/16 (Touring)
5432332
$32.37
19
STOP,LH,STRG,BLK.
5241569-067
$7.27
19
STOP,RH,STRG,BLK.
5241570-067
$7.27
20
BUSHING-FLANGE
3573909
$2.39
21
WASHER SPECIAL(10)
7556509
$1.59
22
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
23
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
24
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
25
Stop, Rubber
5411083
$12.94
26
NUT-5/16-18 NYLOK-Y
7542324
$1.49
27
SKI WELD
1820430-067
Unavailable
28
BOLT(10)
7515462
$8.79
29
SKAG,SHORT(20)
1820267
$23.99
30
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
31
PIN-COTTER(10)
7661205
$1.49
32
BUSHING,PIVOT,(10)
5010158
$19.99
33
ZERK,FITTING,THREADED(10)
7080433
$1.49
34
BOLT(10) Substituted by 7517583
7515491
Unavailable
34
BOLT(10) Substituted by 7517583
7515491
Unavailable
35
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
35
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
36
BUSHING-RADIUS ROD,(10)
5010127
$7.99
37
ROD,RAD,LOWER,BLK
1822444-067
$60.70
38
NUT-JAM(10)
7542711
$2.39
39
ROD END,RH Substituted by 7061011
7060156
Unavailable
40
NUT FLEX,(10)
7542703
Unavailable
41
BRACE, PAN
5223997-067
Unavailable
42
RIVET(50)
7621452
$1.49
43
NUT, LOCK,(10)
7542503
$10.39
44
STRAP,SPACER TOP
5211344
$7.27
44
STRAP,SPACER TOP
5211344
$7.27
45
BUSHING,PIVOT,7/16
5411095
$15.99
46
ROD,RAD,UP.,FIXED (Incl. 45,48)
1822420
$119.99
47
STRAP,SPACER BOTTOM
5211345
$12.99
48
BUSHING,RAD.ROD PIVOT,3/8
5411099
$11.99
49
RETAINER-TOP (Sport)
5220225
$10.39
50
SPRING,COMP.,BLK. (Sport)
7041261-067
$164.99
51
SPACER,SHOCK RETAINER(10) (Sport)
5210953
$6.39
52
SHOCK,IFS (Sport)
7041535
$214.99
52
SHOCK,GAS,IFS (Touring)
7041562
Unavailable
52
SHOCK,IFS (Sport)
7041535
$214.99
52
SHOCK,GAS,IFS (Touring)
7041562
Unavailable
53
RETAINER,SPRING,BODY,THREADED (Touring)
1500063
$44.51
54
RING,SPRING PRELOAD ADJ. (Touring)
5431734
$52.60
55
SPRING,COMPRESSION (Touring)
7041598-067
$26.39
56
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618 (Touring)
5630580
Unavailable
