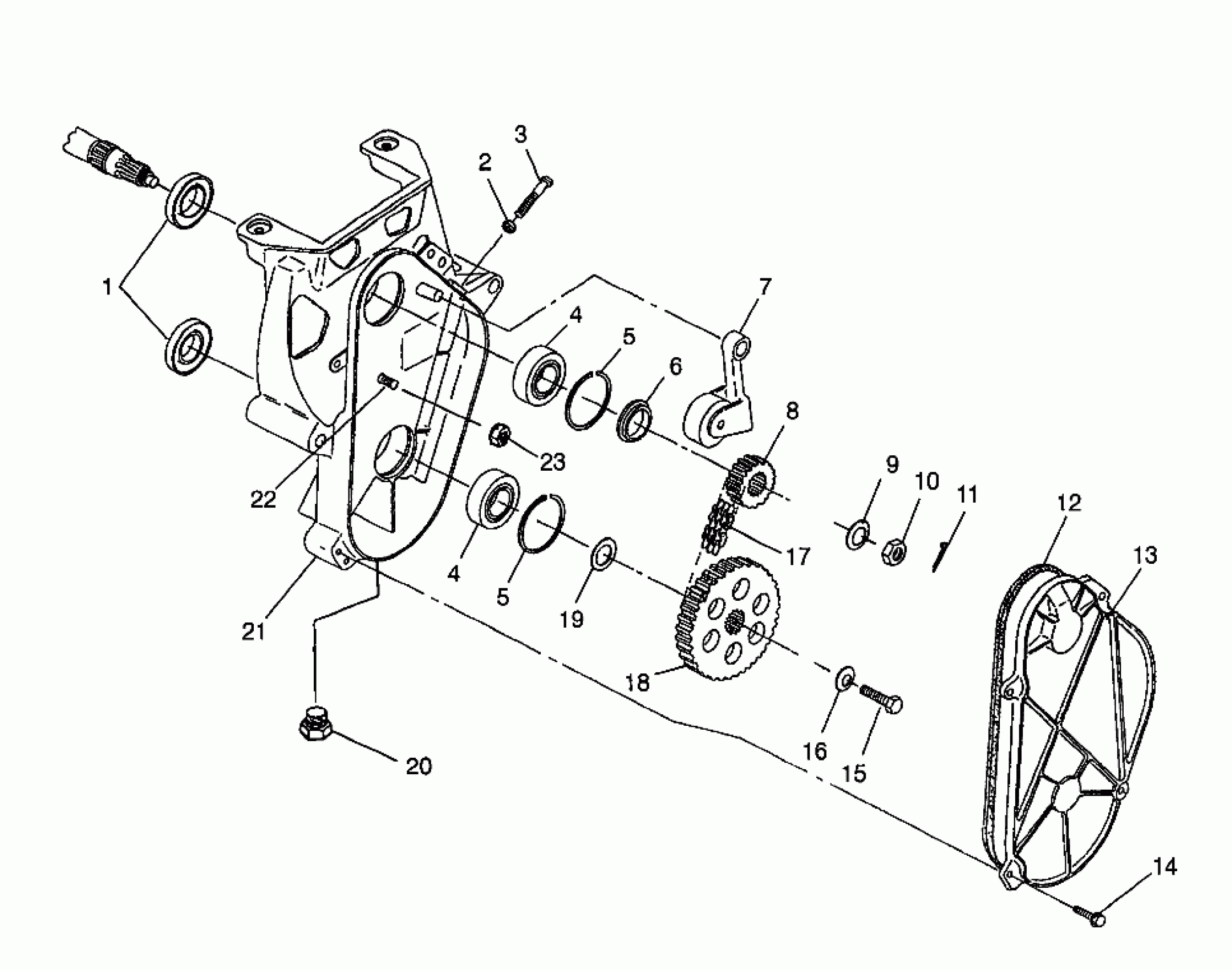

Polaris SPORT - 0980443 CHAINCASE - 0980443 (4942054205b007) Diagram
#
Description
Price
1
SEAL-OIL
3610030
$20.22
2
NUT(10)
7542404
$1.59
3
SCREW(10)
7515511
$3.99
4
BEARING
3514308
Unavailable
4
BEARING
3514308
Unavailable
5
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
5
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
SPACER, SPROCKET
5010270
Unavailable
7
PIN,CHAIN TIGHTENER
7662210
Unavailable
7
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
7
BEARING
3553002
$11.99
7
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
7
WHEEL,C/C IDLER
5630123
Unavailable
7
WASHER THRUST(10)
7558702
$1.59
8
SPKT,17T,13W,13T SPLINE
3221103
Unavailable
9
WASHER, SLOTTED(10)
7571620
$7.19
10
NUT
7542811
Unavailable
11
COTTER PIN(10)
7661401
$1.49
12
GASKET-CHAINCASE
5410277
$24.99
13
COVER, CHAINCASE Substituted by 5630968
5630413
Unavailable
14
SCREW(10)
7512242
$2.39
15
SCREW(10)
7515350
$3.97
16
WASHER(10)
7571618
$6.39
17
CHAIN,66P,(13W),SILENT (Touring)
3224051
Unavailable
17
CHAIN,SILENT,62P,13W (Sport)
3224072
Unavailable
18
SPROCKET,35T,(13W) (Sport)
3222053
Unavailable
18
SPKT,41T,(13W) (Touring)
3233401
Unavailable
19
BUSHING(10)
7555864
$2.39
20
PLUG(10)
7052115
$5.65
21
CHAINCASE-W/RATCHET MNT
5131568
Unavailable
22
BOLT(10)
7515477
$34.99
23
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
