CARBURETOR SPORT 0980443 and SPORT TOURING 0980243 (4942054205C009)

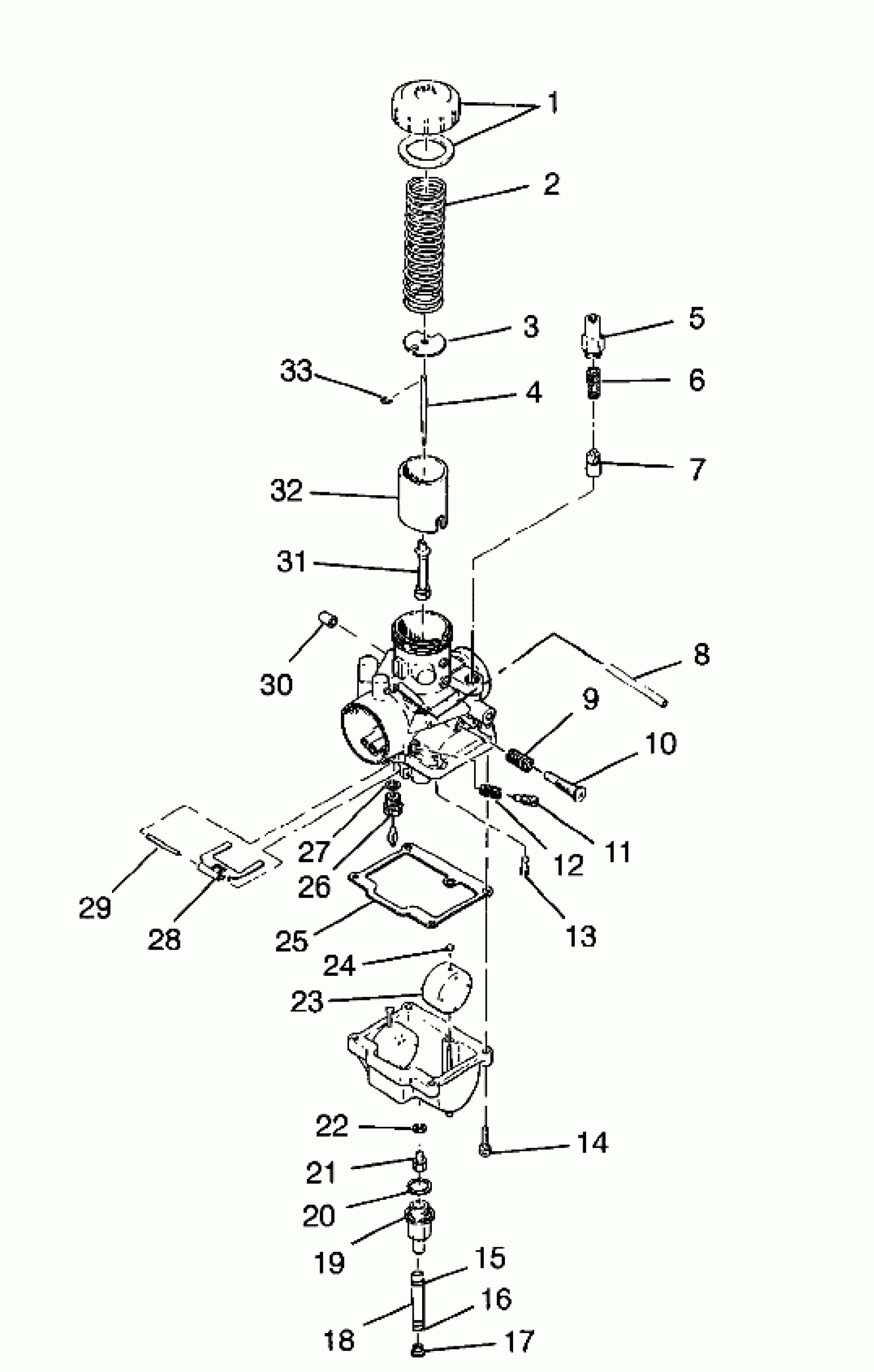

Polaris SPORT - 0980443 CARBURETOR SPORT 0980443 and SPORT TOURING 0980243 (4942054205C009) Diagram
#
Description
Price
-
CARBURETOR ASM. (Incl. 1-14, 19-33)
3130547
Unavailable
1
TOP ASM (Incl. Gasket)
3130184
$32.37
2
SPRING, THROTTLE
3130318
$20.22
3
PLATE
3130027
$9.70
4
JET NEEDLE,(6FJ6-3) (6FJ6-3)
3130481
Unavailable
5
HOLDER,GUIDE
3130199
$28.32
6
SPRING,PLUNGER
3130006
$8.89
7
PLUNGER ASM, STARTER
3130328
$32.37
8
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
9
SPRING,THROTTLE ADJ.
3130010
$8.89
10
SCREW,THROTTLE STOP
3130009
$19.99
11
SCREW,AIR
3130011
$19.99
12
SPRING,AIR ADJUST
3130012
$8.89
13
JET,PILOT,#35(10) (#35)
3130066
$8.89
14
SCREW & WASHER(10)
3130025
$3.19
15
CLAMP,SPRING,(10)
7080534
$1.59
16
CLAMP,HOSE(10)
7080544
Unavailable
17
PLUG,TRAP
5431893
$12.94
18
FUEL LINE, 5 FT.
8450045-153
Unavailable
19
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
20
O RING
3130239
Unavailable
21
JET,MAIN,HX.HD.#185(10) (#185)
3130120
$7.27
22
WASHER (10)
3130014
$1.59
23
FLOAT ASM.
3130430
$43.56
24
CAP,(10)
3130237
$4.03
25
PACKING,FLOAT CHAMBER
3130020
$16.17
26
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
27
PACKING(10)
3130017
$4.03
28
ARM,FLOAT
3130018
$24.27
29
PIN, FLOAT
3130361
$8.89
30
CAP
3130479
$14.56
31
NEEDLE JET (166)
3130421
Unavailable
32
VALVE,THROTTLE,2.0 (2.0)
3130464
Unavailable
33
E RING(10) Substituted by 3130508
3130003
Unavailable
