SEAT and GAS TANK - E970243 (4937673767a007)

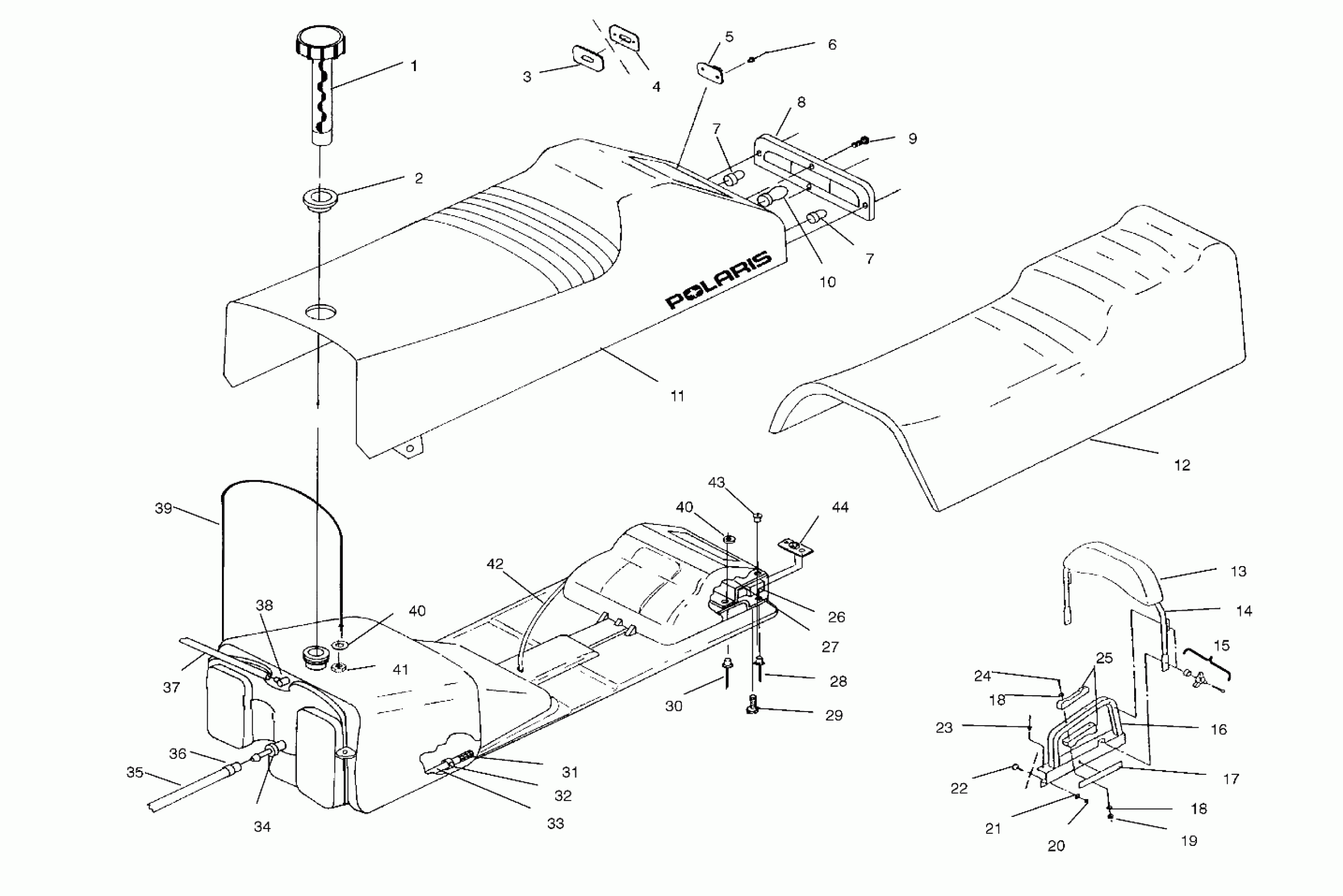

Polaris SPORT - 0970443 SEAT and GAS TANK - E970243 (4937673767a007) Diagram
#
1
GASKET, GAS CAP
5810513
$8.89
1
CAP,GAS,W/GAUGE
2511248
$44.51
2
GROMMET,FUELTANK
5410842
Unavailable
3
GROMMET,RELATCH,1",BOTT.(10) (Sport)
7080550
Unavailable
4
GROMMET,RELATCH,1",TOP(10) (Sport)
7080549
Unavailable
5
TWISTLOCK,RELATCH,1",W/HOLE(10) (Sport)
7080548
Unavailable
6
RIVET(50) (Sport)
7621337
$1.49
7
BULB,TAILLIGHT(10)
4030024
$4.84
7
BULB,TAILLIGHT(10)
4030024
$4.84
8
LENS,TAILLIGHT
5430423
Unavailable
9
SCREW(10)
7511840
Unavailable
10
Bulb, Brakelight
4030045
Unavailable
11
COVER,SEAT,STD (Sport) (Incl. 4-6)
2681998
Unavailable
11
COVER,SEAT,2-UP (Tour.)
2682139
Unavailable
12
CUSHION,SEAT,STD (See Footnote) (Sport) (Incl. 2-11,26-28,31,32,34,37-43)
2681973
$444.99
12
CUSHION,SEAT,2-UP (See Footnote) (Tour.) (Incl. 2-11,26-28,31,32,34,37-43)
2682138
Unavailable
13
COVER,BACKREST ASM. Substituted by 2681265 (Tour.)
2681790
Unavailable
14
BACKREST ASM. Substituted by 2681356 (Incl. 13) (Tour.)
2681789
Unavailable
15
KNOB ASM,BACKREST (Tour.)
2670130
Unavailable
16
BAR,GRAB,LH,BLK. (Tour.)
1011729-067
Unavailable
16
BAR,GRAB,RH,BLK. (Tour.)
1011730-067
Unavailable
17
REFLECTOR RED (Tour.)
2670070
$9.91
18
WASHER(10) (Tour.)
7555783
$3.99
18
WASHER(10) (Tour.)
7555783
$3.99
19
NUT, LOCK(10) Substituted by 7541925 (Tour.)
7541929
Unavailable
20
NUT, NYLOK(10) (Tour.)
7542327
$4.79
21
WASHER(10) Substituted by 7558402 (Tour.)
7555770
Unavailable
22
BOLT(10) Substituted by 7512325 (Tour.)
7515363
Unavailable
23
RIVET,INTERLOCK,B(50) (Tour.)
7661638
$1.49
24
SCREW(10) (Tour.)
7510504
$6.76
25
GRIP, HAND Substituted by 5433383 (Tour.)
5431015
$19.68
26
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
27
COVER,T/L PROTECTOR
5431436
$21.43
28
RIVET(50)
7621301
$3.99
29
SCREW(10)
7512242
$2.39
30
RIVET(50)
7621464
$3.99
31
FUELPICKUP,W/STRAINER
7052037
$12.94
32
RING, COMPRESSION(10)
7080402
$1.60
33
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
34
FITTING - OUTLET(10)
7052023
$24.99
35
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
36
HOSE CLAMP, RED (Red)
7080003
$1.49
37
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
38
FITTING,90 DEG,1/8,(10)
7052095
$4.79
39
CABLE,TANK,RETENTION
7080559
Unavailable
40
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
40
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
41
NUT(10)
7541925
$1.49
42
HARNESS,TAILLIGHT
2460398
Unavailable
43
CLIP,DART,(10)
7670097
Unavailable
44
NUT,RETAINER-WELD.(10)
7542147
$17.59
