REAR TORQUE ARM (Touring) - E970243 (4937673767c002)

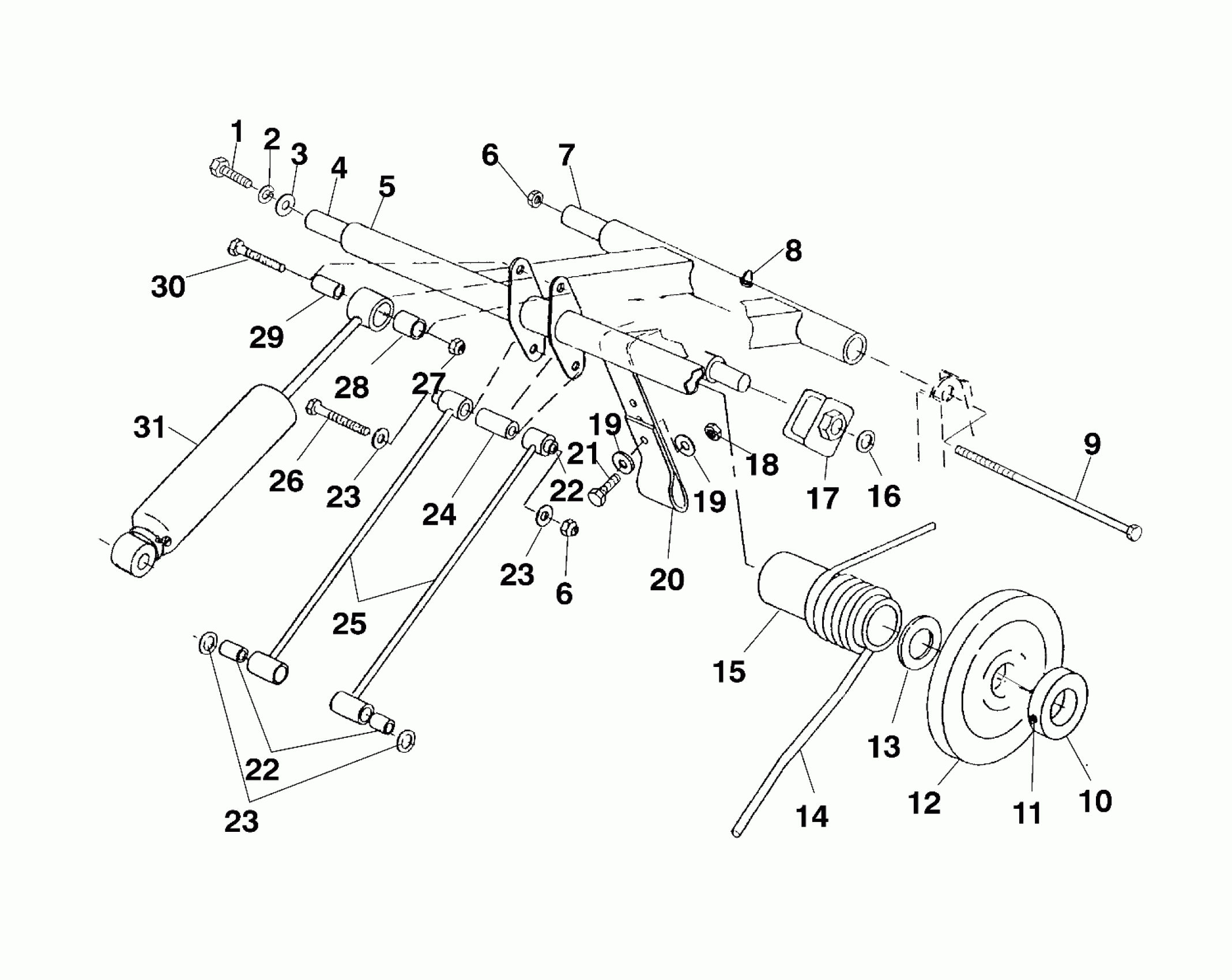

Polaris SPORT - 0970443 REAR TORQUE ARM (Touring) - E970243 (4937673767c002) Diagram
#
Description
Price
1
SCREW,(10)
7517247
$3.19
2
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
3
WASHER(10)
7555893
$1.49
4
SHAFT,R.TORQUE,UPPER
5020845
$63.99
5
KIT,R.TORQUE ARM
2200914
Unavailable
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
7
Shaft
5333536
Unavailable
8
ZERK,FITTING,THREADED(10)
7080433
$1.49
9
Screw
7517232
$19.99
10
COLLAR,BRG LOCK
5010404
Unavailable
11
SCREW-SET(10)
7512257
$3.99
12
Wheel, Carrier
1543023
Unavailable
13
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
14
SPRING,LH,TORS(.421DIA) (.421) Std.
7041461-067
Unavailable
14
SPRING,RH,TORS(.437/77) (.437) Dia. Opt.
7041466-067
$107.99
14
SPRING,LH,TORS(.437/77) (.437) Dia. Opt.
7041465-067
Unavailable
14
SPRING,RH,TORS(.421DIA) (.421)Std.
7041462-067
$113.32
15
SLEEVE,TORSION SPRING
5431923
$6.39
16
CLIP-PUSH ON
7080394
$2.39
17
ROLLER, SPRING ADJ.
5431168
Unavailable
18
NUT-5/16-18 NYLOK-Y
7542324
$1.49
19
WASHER(10)
7555716
$1.59
19
WASHER(10)
7555716
$1.59
20
STRAP-LIMITER,RR,SA
5411062
Unavailable
21
BOLT(10)
7515307
$3.99
22
BUSHING,PIVOT TUBE
5020561
$1.59
22
BUSHING,PIVOT TUBE
5020561
$1.59
23
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
23
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
23
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
24
Spacer
5333420
$11.99
25
ROD,SHOCK,(XTRA 10)133
1541021-067
Unavailable
26
BOLT(10)
7515472
$2.39
27
NUT FLEX-LOC(10)
7542303
$6.39
28
BUSHING
5430537
$3.99
29
BUSHING,R.SHOCK
5333030
Unavailable
30
BOLT(10)
7512329
$3.99
31
SHOCK,GAS,R.TRACK
7041438
Unavailable
