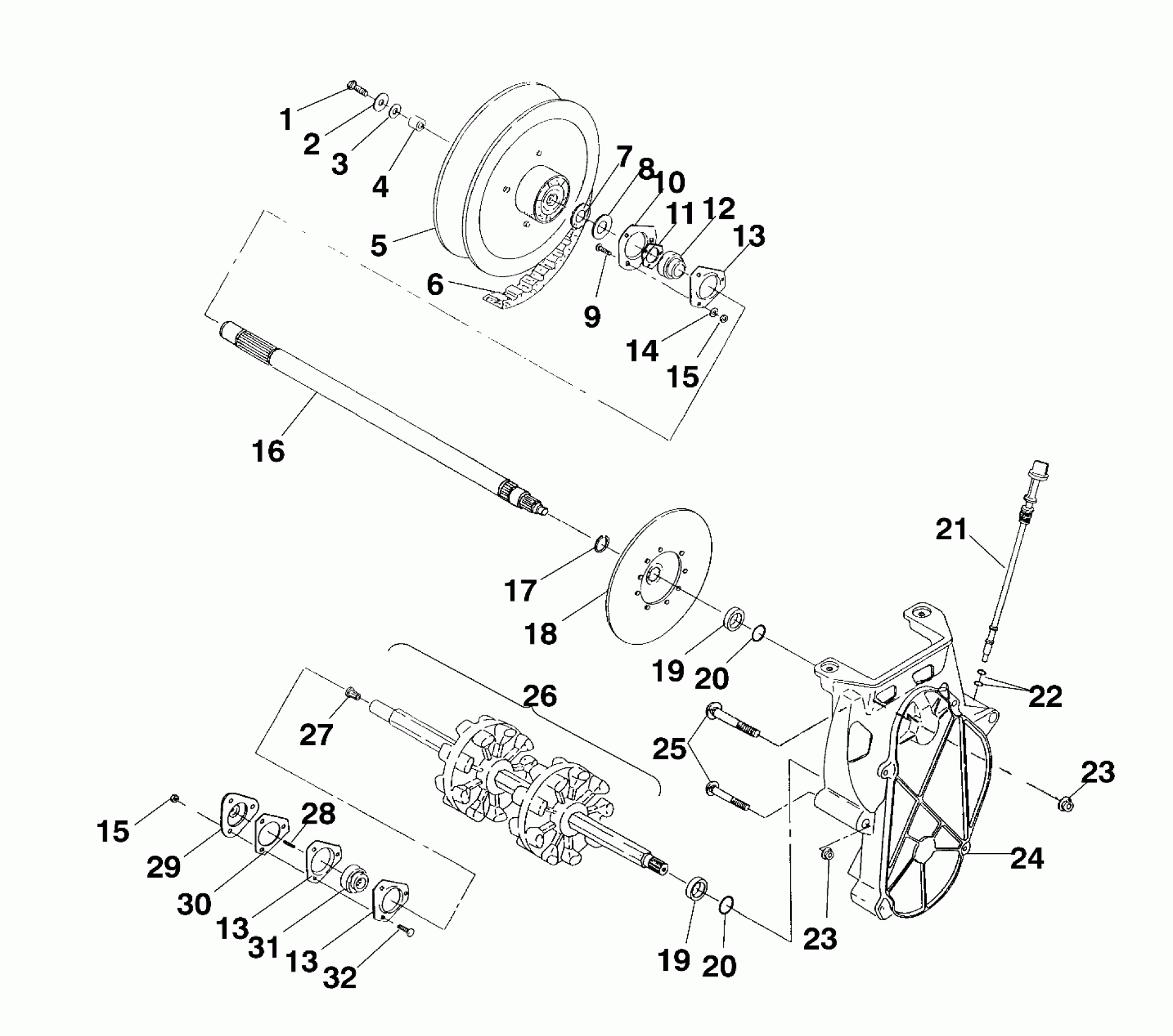

Polaris SPORT - 0970443 DRIVE TRAIN - 0970443 (4937673767b008) Diagram
#
Description
Price
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER,DRIVEN CLUTCH
5020645
Unavailable
5
Asm., Driven Clutch (See Pg. C4, Ref. 9)
-------
Unavailable
6
BELT, DRIVE(5)
3211059
$79.99
7
SPACER,DRIVEN CLUTCH
5020645
Unavailable
8
SPACER, DRIVEN Substituted by 2200385 (Touring Only)
5020596
Unavailable
9
BOLT(10) Substituted by 7512377
7512394
Unavailable
10
FLANGETTE
5240252
Unavailable
11
GASKET,JACKSHAFT,BLK.
5811095
$2.41
12
BEARING,JACKSHAFT
3514519
$64.99
13
FLANGETTE
5222751
$16.44
13
FLANGETTE
5222751
$16.44
13
FLANGETTE
5222751
$16.44
14
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
15
NUT-5/16-18 NYLOK-Y
7542324
$1.49
15
NUT-5/16-18 NYLOK-Y
7542324
$1.49
16
JACKSHAFT ASM. (Incl. 17)
1332146-067
Unavailable
17
RING, RETAINING(10)
7710422
$3.99
18
DISC ASM, BRAKE
1910086
Unavailable
19
SLEEVE, SEAL
5020588
$23.99
19
SLEEVE, SEAL
5020588
$23.99
20
O RING,(10)
5410613
$1.99
20
O RING,(10)
5410613
$1.99
21
DIPSTICK Substituted by 1332143
5431419
Unavailable
22
O-RING
5410675
$1.60
23
NUT(10)
7542423
$3.99
23
NUT(10)
7542423
$3.99
24
Cover, Chaincase (See Pg. B7, Ref. 14)
-------
Unavailable
25
BOLT(10)
7515428
$4.79
26
DRIVESHAFT ASM,HD,NARROW (Incl. 27)
1590250
Unavailable
27
BUSHING METAL SPEEDO
3280019
$11.99
28
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
29
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
30
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
31
BEARING,DRIVESHAFT
3514518
$64.99
32
BOLT(10)
7512331
$3.99
