Description

Price

1

NUT-FLANGE(10)

3082910

$2.39

2

BOLT, FLANGE

3084271

Unavailable

3

HEAD, CYLINDER

3084250

Unavailable

3

HEAD, CYLINDER

3084250

Unavailable

4

GASKET, HEAD

3084249

Unavailable

4

GASKET, HEAD

3084249

Unavailable

5

STUD

3083392

Unavailable

5

STUD

3083392

Unavailable

6

NUT(10)

3080285

Unavailable

7

WASHER LOCK ,(10)

3080530

$3.19

8

GASKET, EXHAUST

3084026

Unavailable

9

NUT-FLANGE(10)

3082911

$1.99

10

STUD,(10)

3085326

Unavailable

10

STUD,(10)

3085326

Unavailable

11

CYLINDER (Incl. 5,10)

3084269

$694.99

11

CYLINDER (Incl. 5,10)

3084269

$694.99

12

GASKET, BASE

3084025

Unavailable

12

GASKET, BASE

3084025

Unavailable

13

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

13

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

14

O-RING Substituted by 3085619

3084272

Unavailable

15

Bolt, Allen

3081330

$3.99

16

ADAPTER,CARB.

3085044

Unavailable

17

SCREW,(10)

3081497

$2.39

18

BAND ASM. (Incl. 17)

3083166

$19.84

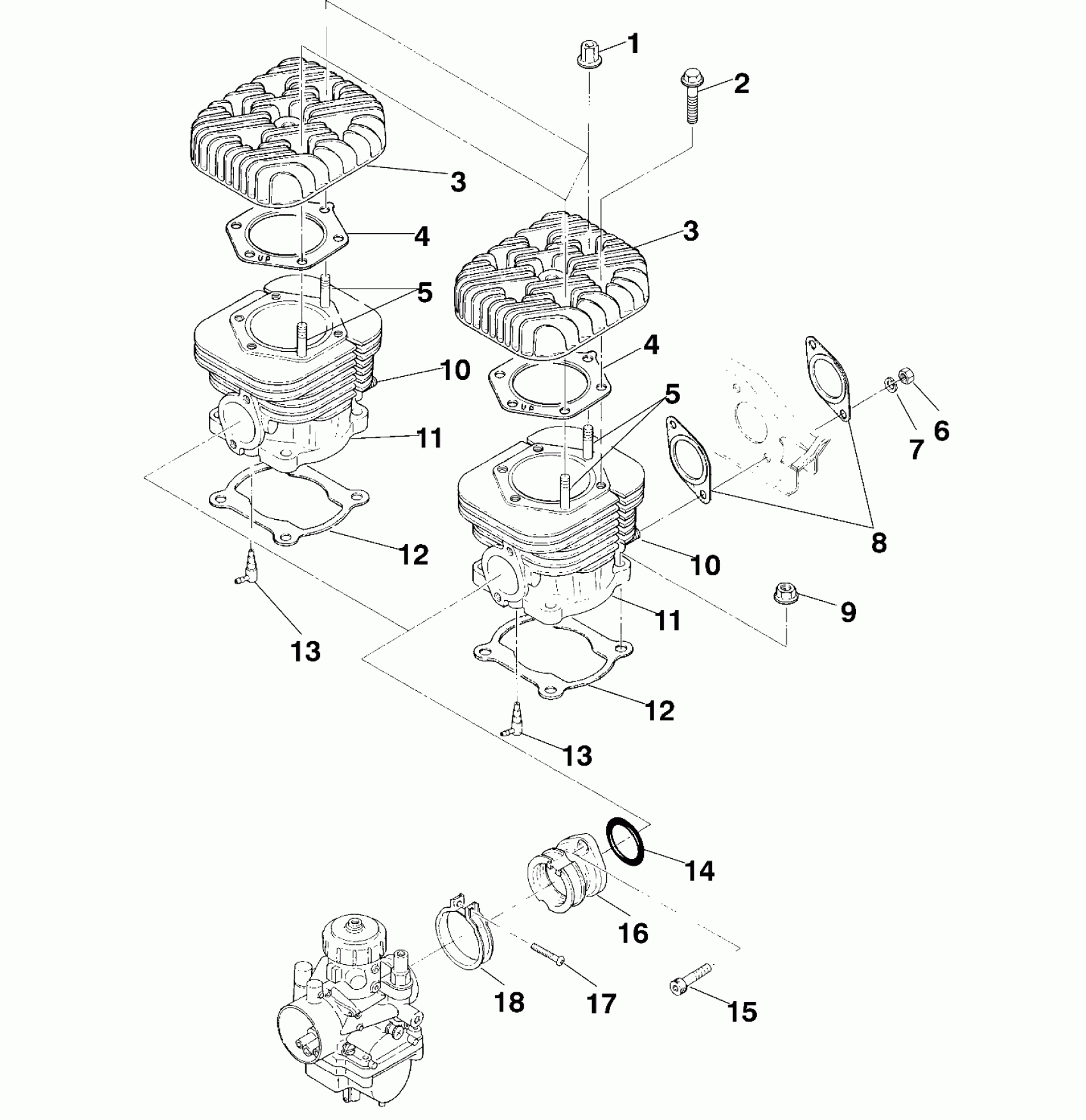

Polaris SPORT - 0970443 CYLINDER - E970243 (4937673767c009) Diagram

NUT-FLANGE(10)

BOLT, FLANGE

HEAD, CYLINDER

HEAD, CYLINDER

GASKET, HEAD

GASKET, HEAD

STUD

STUD

NUT(10)

WASHER LOCK ,(10)

GASKET, EXHAUST

NUT-FLANGE(10)

STUD,(10)

STUD,(10)

CYLINDER (Incl. 5,10)

CYLINDER (Incl. 5,10)

GASKET, BASE

GASKET, BASE

VALVE, CHECK Substituted by 3086785

VALVE, CHECK Substituted by 3086785

O-RING Substituted by 3085619

Bolt, Allen

ADAPTER,CARB.

SCREW,(10)

BAND ASM. (Incl. 17)
