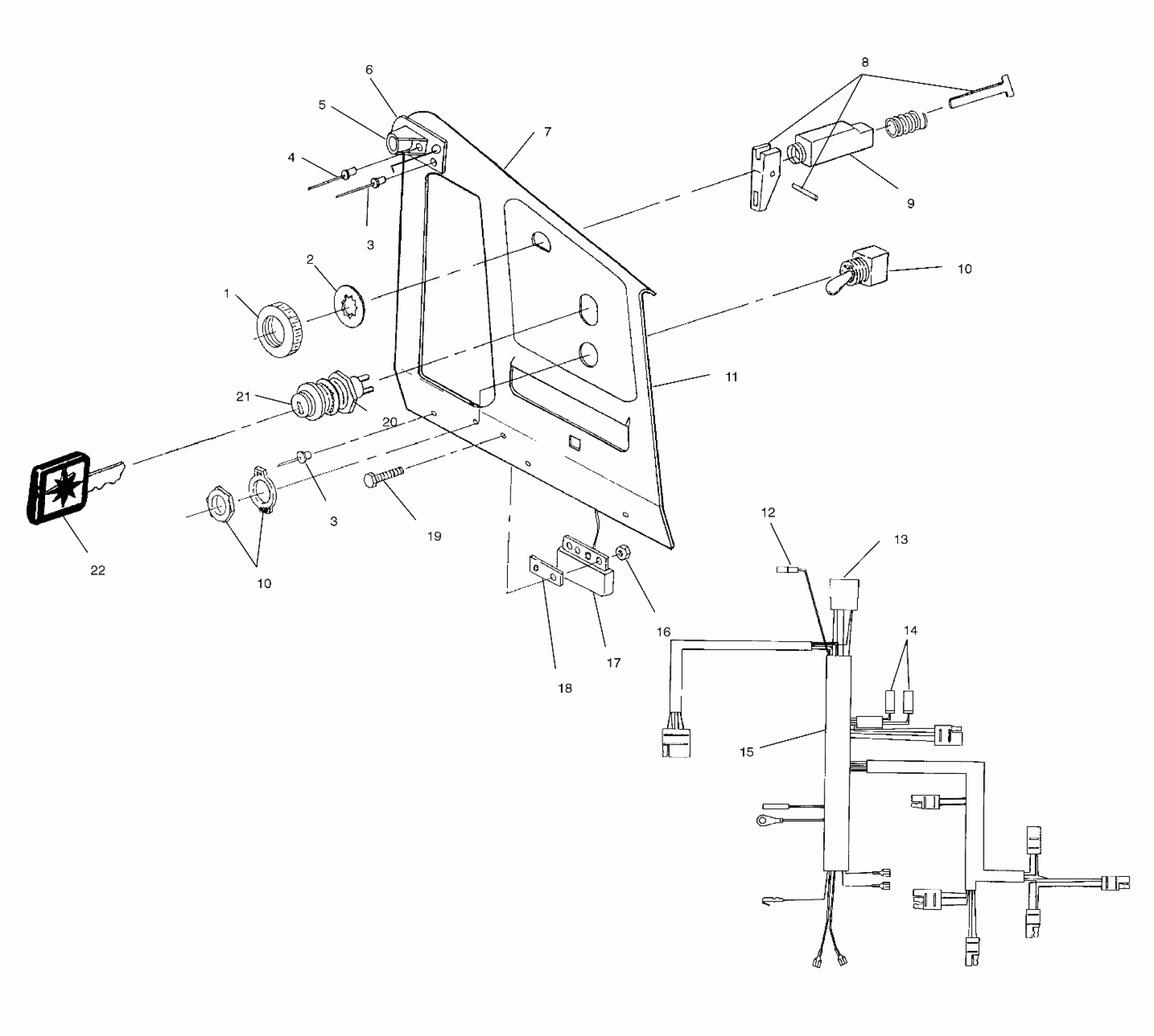

Polaris SPORT - 0970443 CONSOLE - E970243 (4937673767a014) Diagram
#
Description
Price
1
Nut
7080229
$19.99
2
WASHER-LOCK(10)
7571610
$3.99
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RIVET(50) Substituted by 7661130
7661643
Unavailable
5
GUIDE, RECOIL
5431385
$10.51
6
BRKT,ROPE GUIDE,BLK.
5222682-067
Unavailable
7
CONSOLE
5222756-067
Unavailable
8
KIT-CHOKE CONTROL
2200188
$24.27
9
Cable, Choke Control
7080290
$105.22
10
SWITCH,H-BAR HEATER
4110066
Unavailable
10
SWITCH,H-BAR HEATER
4110066
Unavailable
11
DECAL, CONSOLE [No Longer Available]
7072973
Unavailable
12
HOUSING
4020133
Unavailable
13
Housing w/Receptacle
4020057
$3.51
14
Housing
4020153
$1.49
15
HARNESS,MAIN WIRE (Euro)
2460488
Unavailable
15
HARNESS,MAIN WIRE (US)
2460577
Unavailable
16
NUT(10)
7541925
$1.49
17
REGULATOR,14 VAC.LR-9
4060122
Unavailable
18
SPACER,REGULATOR
5211573
Unavailable
19
BOLT(10)
7512031
$2.23
20
NUT, IGN.SWITCH(10)
7543101
Unavailable
21
KIT,IGN. SWITCH (Incl. 22)
2200357
Unavailable
22
KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid
5410611
Unavailable
