TUNNEL ASSEMBLY SPORT TOURING 0950243 and EUROPEAN SPORT TOURING E950243 (4928822882A006)

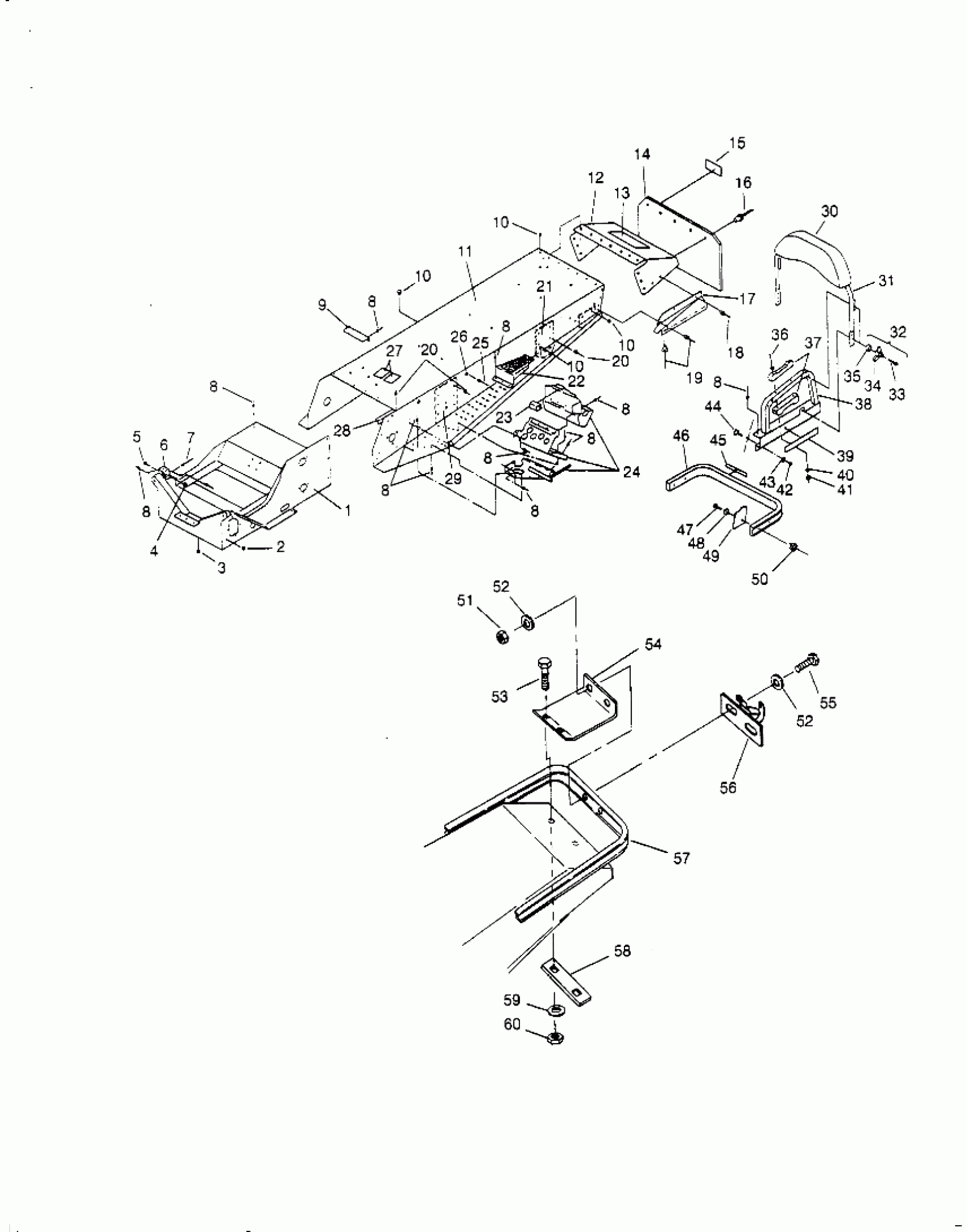

Polaris SPORT - 0950443 TUNNEL ASSEMBLY SPORT TOURING 0950243 and EUROPEAN SPORT TOURING E950243 (4928822882A006) Diagram
#
1
BULKHEAD
1012255-067
$573.29
2
PLUG, HOLE(10)
7080416
$5.65
3
PLUG-HOLE
7080398
$4.84
4
NUT LOCK(10)
7542321
$1.49
5
SCREW(10)
7512307
$3.99
6
Weld., Muffler Support (See Pg. A32, Ref. 17)
-------
Unavailable
7
RIVET(50)
7621452
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
BRKT, TOOL BOX
5220973
Unavailable
10
RIVET ,(50)
7661836
$0.63
10
RIVET ,(50)
7661836
$0.63
10
RIVET ,(50)
7661836
$0.63
10
RIVET ,(50)
7661836
$0.63
11
TUNNEL ASM. (Incl. 12 21,28,29)
1012206
$366.65
12
PANEL,R.CLOSE-OFF ASM.
1011799
$32.95
13
DECAL,CLOSE-OFF,SPORT/SKS
7073973
Unavailable
14
FLAP, SNOW,SILVER Substituted by 5410394-1106 (Silver)
5410394
$121.02
15
Decal - Track/Seat (Black) (See Pg. A13, Ref. 1)
-------
Unavailable
16
POP RIVET(50)
7621418
$1.49
17
SKIRT,LH,SNO,BLUE
5431627-077
Unavailable
17
SKIRT,RH,SNO,BLUE
5431645-077
$26.39
18
RIVET,3/16X.402(50)
7621432
$1.49
19
RIVET(50)
7621472
$1.49
20
RIVET ,(50)
7661837
$1.49
20
RIVET ,(50)
7661837
$1.49
21
BRKT,RH.REAR SUSP.
1011906-067
Unavailable
21
BRKT,LH.REAR SUSP
1011905-067
Unavailable
22
FOOTREST,LH REAR
5220893
Unavailable
22
FOOTREST,RH REAR
5220894
$32.15
22
PAD,LH FOOT SAFETY
5830007
$7.89
22
PAD,RH FOOT SAFETY
5830008
$4.92
23
EXTRUSION,CLUTCHGUARD
5521238
$6.46
24
FOOTREST ASM,LH
1011890
Unavailable
24
FOOTREST ASM, RH
1011891
$164.79
25
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
26
SNAP-MALE(10)
7080227
Unavailable
27
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
28
BRACE,TUNNEL REINF. Substituted by 5240242
5240265
Unavailable
29
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
30
COVER,B'REST(93TRLDLX)
2681630
$216.17
31
BACKREST ASM,COOL/SLATE
2681629
Unavailable
32
KNOB ASM,BACKREST
2670130
Unavailable
33
SCREW(10)
7515352
Unavailable
34
Knob, Backrest
5630386-067
$20.22
35
SPACER
5431285
Unavailable
36
SCREW(10)
7510504
$6.76
37
GRIP, HAND Substituted by 5433383
5431015
$19.68
38
BAR,GRAB,LH,BLK.
1011729-067
Unavailable
38
BAR,GRAB,RH,BLK.
1011730-067
Unavailable
39
REFLECTOR RED
2670070
$9.91
40
WASHER(10)
7555783
$3.99
41
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
42
NUT, NYLOK(10)
7542327
$4.79
43
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
44
BOLT(10) Substituted by 7512325
7515363
Unavailable
45
Decal - Rear Bumper (See Pg. A13, Ref. 10)
-------
Unavailable
46
BUMPER ASM, REAR (Touring)
2670122
Unavailable
46
Asm., Rear Bumper (Euro) (See Ref. 57)
-------
Unavailable
47
BOLT(10)
7512240
$3.99
48
LOCK WASHER(10)
7552801
$1.59
49
WASHER(10)
7558301
$1.49
50
RIVNUT(10)
7542130
$6.23
51
NUT-HEX-3/8-16 A ZTB NYL (Euro)
7542451
$1.49
52
WASHER(10) (Euro)
7555806
$1.49
52
WASHER(10) (Euro)
7555806
$1.49
53
BOLT(10) (Euro)
7512377
$4.79
54
BRKT, HITCH (Euro)
5222605-067
$11.51
55
BOLT(10) (Euro)
7515521
$3.99
56
Asm., Hitch (Euro)
-------
Unavailable
57
DESC NOT_AVAILABLE (Euro)
2670123
Unavailable
58
PLATE, BACKING (Euro)
5211122-067
Unavailable
59
WASHER-.344X.688X.063 FL-Y (Euro)
7558402
$1.49
60
NUT-5/16-18 NYLOK-Y (Euro)
7542324
$1.49
