SUSPENSION ASSEMBLY SPORT TOURING 0950243 and EUROPEAN SPORT TOURING E9502 (4928822882B013)

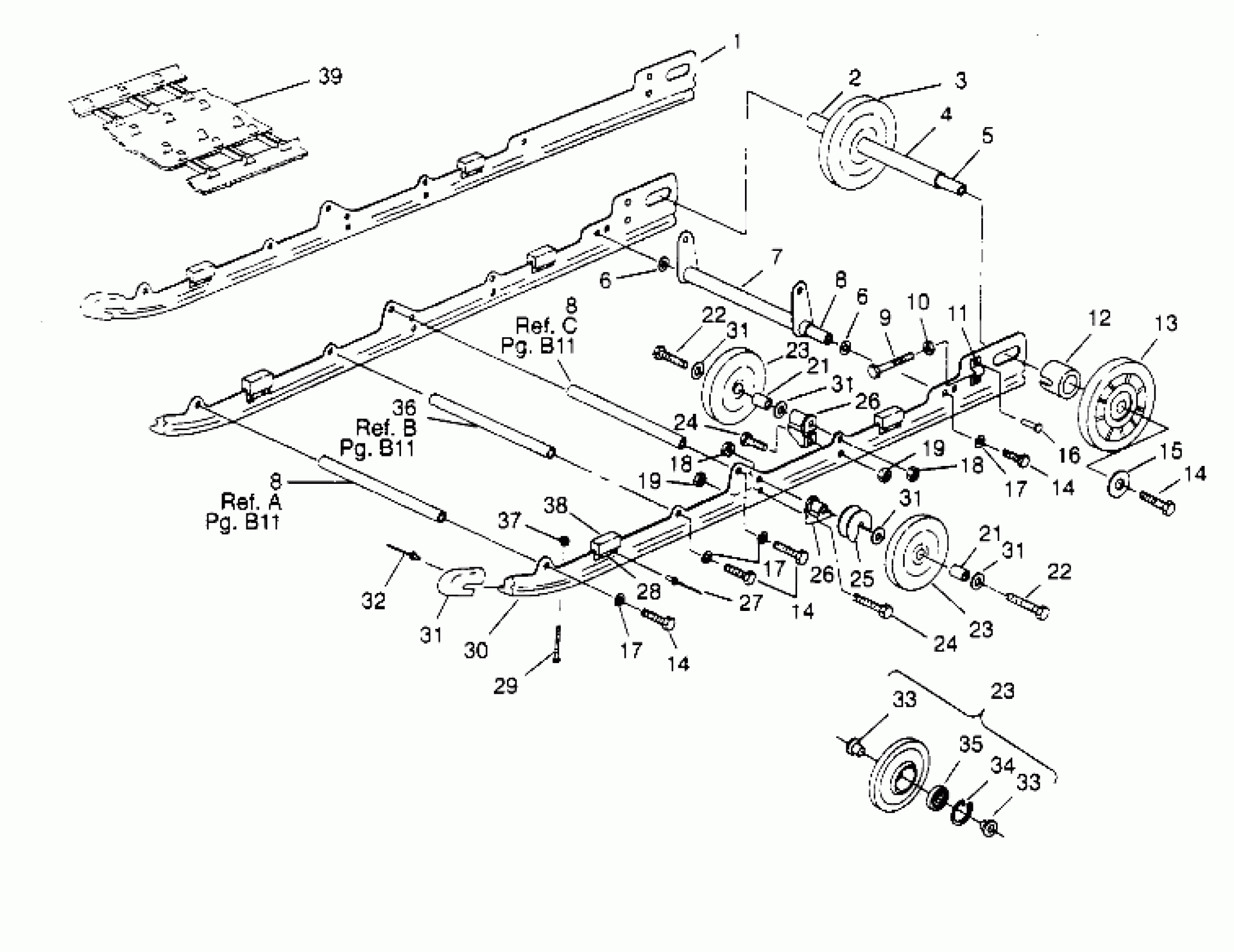

Polaris SPORT - 0950443 SUSPENSION ASSEMBLY SPORT TOURING 0950243 and EUROPEAN SPORT TOURING E9502 (4928822882B013) Diagram
#
1
RAIL ASM,LH,(SKS,XC-100) (Incl. 11,28, 31,38)
1540802
Unavailable
1
RAIL ASM,RH,(SKS,XC-100) (Incl. 11,28, 31,38)
1540803
$319.99
2
SPACER INNER IDLER
5010169
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SPACER,IDLER,R.INNER
5333086
Unavailable
5
SHAFT,IDLER
5020722
Unavailable
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
7
ARM, REAR PIVOT
1540677-067
Unavailable
8
SHAFT,PIVOT ARM
5020723
$29.99
8
SHAFT,PIVOT ARM
5020723
$29.99
8
SHAFT,PIVOT ARM
5020723
$29.99
9
BOLT, ADJUSTER(10)
7515455
$29.99
10
NUT(10)
7542440
Unavailable
11
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
12
SPACER-IDLER-OUTER
5332641
Unavailable
13
WHEEL,IDLER,BLUE
1594038
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
15
WASHER FLAT(10)
7555732
Unavailable
16
RIVET,(50)
7621501
$2.39
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
18
NUT, NYLOCK(10)
7542525
$4.79
18
NUT, NYLOCK(10)
7542525
$4.79
19
NUT LOCK(10)
7542403
$3.99
19
NUT LOCK(10)
7542403
$3.99
21
SPACER, WHEEL
5333116
$7.99
21
SPACER, WHEEL
5333116
$7.99
22
BOLT(10)
7512538
$6.39
22
BOLT(10)
7512538
$6.39
23
WHEEL, IDLER (Incl. 33-35)
1543018
$56.65
23
WHEEL, IDLER (Incl. 33-35)
1543018
$56.65
23
WHEEL, IDLER (Incl. 33-35)
1543018
$56.65
24
BOLT(10)
7512404
$3.99
24
BOLT(10)
7512404
$3.99
25
ROLLER, SPRING
5431366
$10.51
26
SPACER
5630399
$11.99
26
SPACER
5630399
$11.99
27
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
28
REINF., BUMPER
5222629
$13.75
29
SCREW(10)
7512227
$3.19
30
SLIDER,BLK. Substituted by 5521320
5521296
Unavailable
31
COVER-RAIL TIP
5430627
$32.37
31
COVER-RAIL TIP
5430627
$32.37
31
COVER-RAIL TIP
5430627
$32.37
31
COVER-RAIL TIP
5430627
$32.37
31
COVER-RAIL TIP
5430627
$32.37
32
RIVET(50)
7621435
$1.49
33
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
33
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
34
RET.RING-TRUARC
7718407
$4.79
35
BEARING,CHAINCASE
3514305
$19.99
36
SHAFT,PIVOT ARM
5020724
$29.99
37
NUT-LOCK(10)
7542122
$1.49
38
BUMPER, RAIL
5810554
$7.27
39
TRACK,(STORM SKS)
5410744
Unavailable
