OIL TANK / AIR BOX ASSEMBLY SPORT 0950443, SPORT TOURING 0950243 and EUROP (4928822882C009)

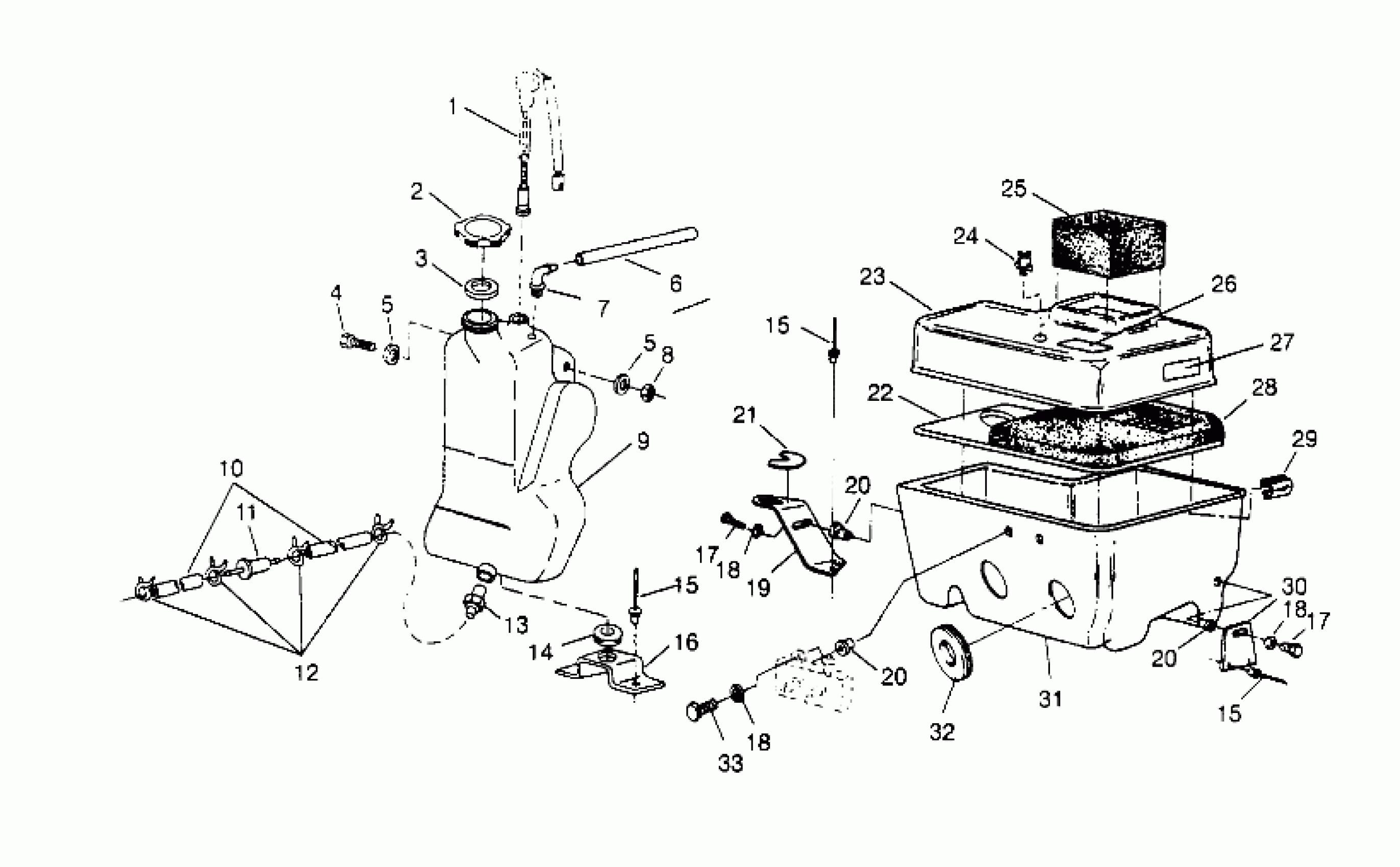

Polaris SPORT - 0950443 OIL TANK / AIR BOX ASSEMBLY SPORT 0950443, SPORT TOURING 0950243 and EUROP (4928822882C009) Diagram
#
Description
Price
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512103
$3.19
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
KIT-TANK VENT
2200190
Unavailable
7
FITTING,90 DEG,1/8,(10)
7052095
$4.79
8
NUT-LOCK(10)
7542122
$1.49
9
Tank, Oil
5431437
Unavailable
10
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
11
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
12
CLAMP-HOSE, (LARGE GREEN) (Large Grill)
7080307
$1.49
13
FITTING, OUTLET (Single)
7052042
$8.99
14
GROMMET RUBBER
5410021
Unavailable
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
16
BRACKET
5223985
Unavailable
17
SCREW(10)
7512279
$1.49
17
SCREW(10)
7512279
$1.49
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
BRKT,AIR SILENCER,BLK.
5223973-067
Unavailable
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
21
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
22
PLATE,AIR SILENCER
5850075
$24.27
23
COVER, SILENCER
5430920
$61.99
24
CLAMP,WIRE ROUTING(10)
7080409
$2.39
25
INTAKE ASM, FOAM
1253107
$36.41
26
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
27
DECAL, GREASING [No Longer Available]
7073426
$7.27
28
BAFFLE ASM.
1253102
$64.75
29
CLIP, AIR BOX,(10)
7670055
$7.99
30
BRACKET, SILENCER
5211274
$9.70
31
SILENCER,INTAKE
5431522
Unavailable
32
BOOT
5410403
$12.99
33
SCREW(10)
7512222
$2.39
