HOOD ASSEMBLY SPORT 0950443, SPORT TOURING 0950243 and EUROPEAN SPORT TOUR (4928822882A012)

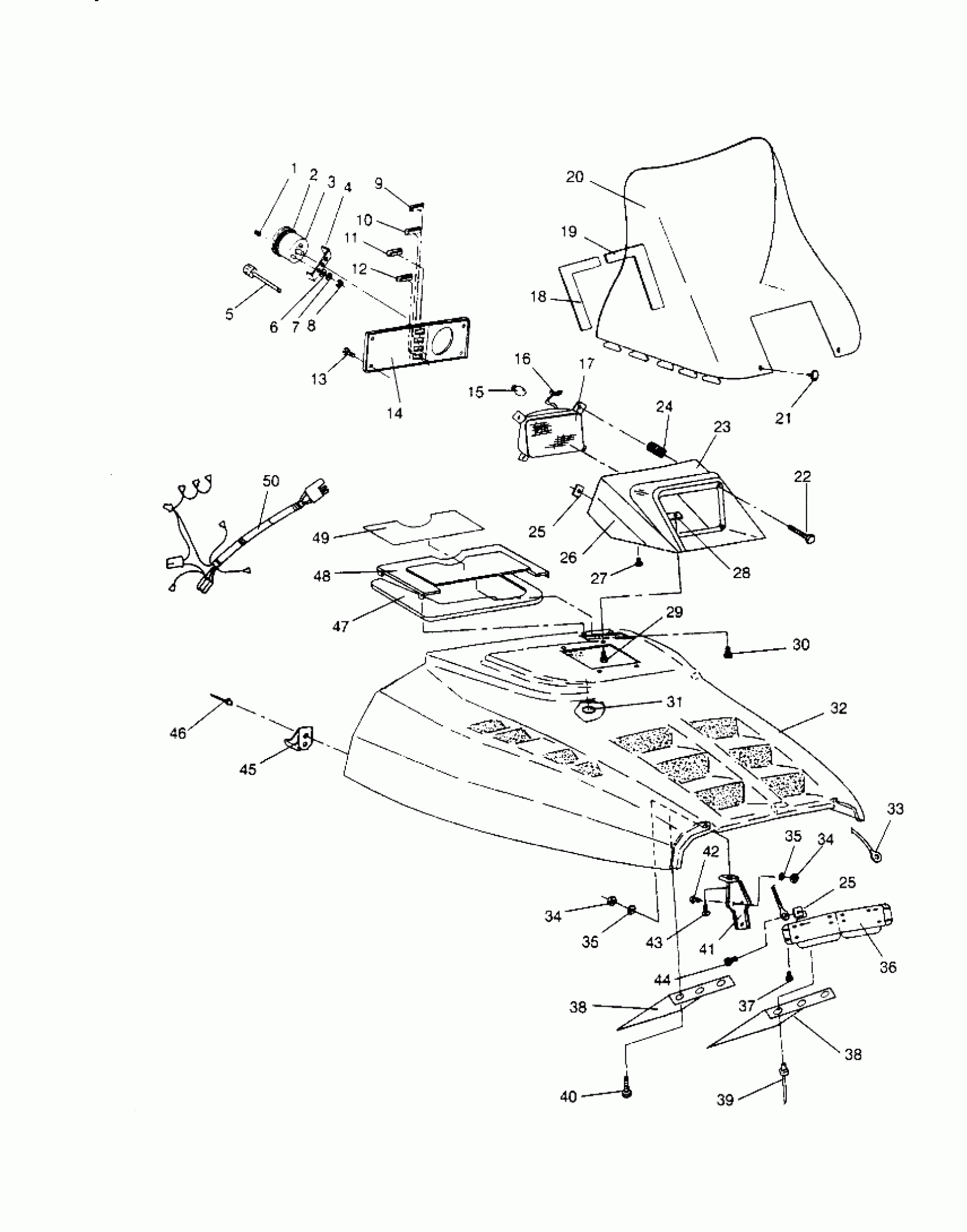

Polaris SPORT - 0950443 HOOD ASSEMBLY SPORT 0950443, SPORT TOURING 0950243 and EUROPEAN SPORT TOUR (4928822882A012) Diagram
#
1
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
2
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
3
BULB TAILLIGHT(10)
4030015
$4.03
3
SPEEDOMETER,BACKLIT (Incl. 4,8)
3280148
Unavailable
4
BRKT,SPEEDO/TACH
3280153
Unavailable
4
SPEEDO,KILOMETER
3280159
$113.99
5
CABLE,SPEEDO.
3280094
$60.70
6
WASHER,SPLIT LOCK
3280156
$1.49
7
WASHER,FLAT,(10)
3280157
$2.39
8
Nut
3280158
Unavailable
9
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
10
INDICATOR,'ACC'WARN.
4040014
Unavailable
11
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
12
PLUG,INDIC.HOLE
5430967
$5.65
13
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
14
BEZEL, INSTRUMENT
5431064
$16.67
15
BULB, H/L
4030028
$29.99
16
RETAINER,H/L BULB
4032063
Unavailable
17
HEADLIGHT ASM. (Euro)
4032040
Unavailable
17
HEADLIGHT ASM.
4032038
Unavailable
18
PAD,W/S,RH,BLACK
5810438
$1.67
19
PAD,W/S,LH,BLACK
5810437
Unavailable
20
WINDSHIELD, HIGH (Touring)
5431118
Unavailable
20
WINDSHIELD,SMOKE,STD(LIQ) (Sport)
5431144
$134.99
21
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
22
SCREW, ADJ.(10)
4032003
Unavailable
23
HSG,INST,TOP,BLK
5430923-070
Unavailable
24
SPRING-ADJ
4032002
Unavailable
25
NUT, SPEED(10)
7670056
Unavailable
25
NUT, SPEED(10)
7670056
Unavailable
26
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
27
SCREW(10)
7512009
Unavailable
28
NUT, SPEED(10)
7670057
$1.49
29
SCREW, SEMS(10)
7512283
$3.99
30
SCREW(10)
7511840
Unavailable
31
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
32
HOOD ASM,(SPORT,94) (Incl. Foam, Foil & Warning Decals)
2631573-177
Unavailable
33
CABLE,HD.RETAINER
7080360
$24.27
34
NUT-LOCK(10)
7542122
$1.49
34
NUT-LOCK(10)
7542122
$1.49
35
WASHER,WROUGHT(10)
7558302
$1.59
35
WASHER,WROUGHT(10)
7558302
$1.59
36
PLATE,RE-INF.,(HD.)
5222105
$49.51
37
SCREW(10)
7511861
Unavailable
38
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
38
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
39
POP RIVET(50)
7621425
$1.49
40
SCREW(10)
7511858
$3.99
41
HINGE ASM,HD,BLK
2635005-067
$16.67
42
BOLT(10)
7512193
$2.39
43
BOLT-CARRIAGE(10)
7512263
$3.99
44
SCREW(10)
7511989
Unavailable
45
CUP, HOOD LATCH,(10)
5430733
$4.84
46
RIVET(50)
7621334
$1.49
47
SEAL, INTAKE
5810597
Unavailable
48
PANEL ASM,INTAKE,MET.BLK. Substituted by 2620095-177
2620078-177
Unavailable
49
DECAL,DASH WARNING Substituted by 7075457 (Park Brake)
7074883
Unavailable
50
HARNESS, HEADLIGHT
2460383
Unavailable
