FRONT TORQUE ARM ASSEMBLY SPORT 0950443 (4928822882C001)

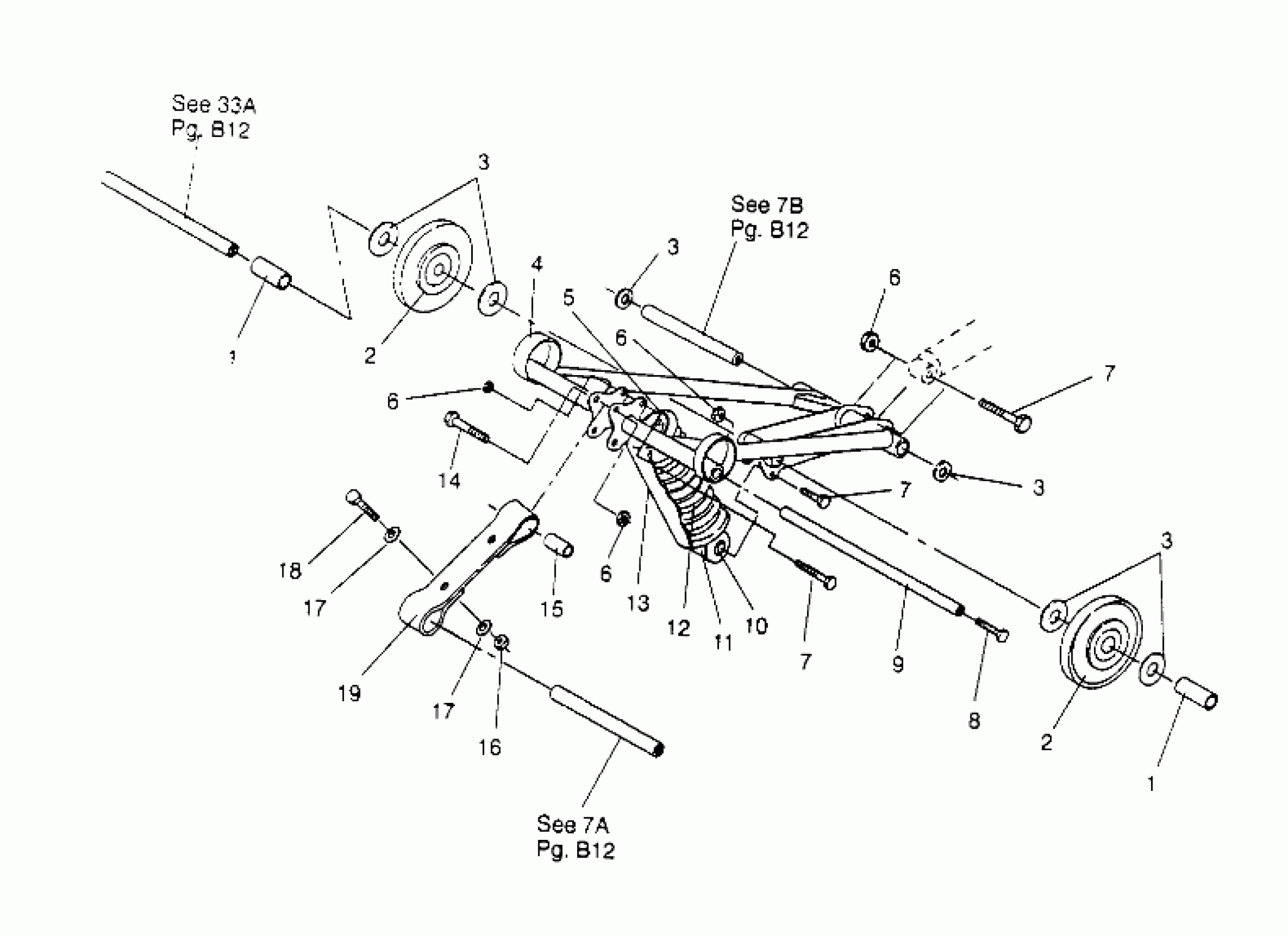

Polaris SPORT - 0950443 FRONT TORQUE ARM ASSEMBLY SPORT 0950443 (4928822882C001) Diagram
#
Description
Price
1
Spacer (See Pg. A23, Ref. 35)
-------
Unavailable
1
Spacer (See Pg. A23, Ref. 35)
-------
Unavailable
2
Asm., Bogie Wheel (See Pg. A23, Ref. 21)
-------
Unavailable
2
Asm., Bogie Wheel (See Pg. A23, Ref. 21)
-------
Unavailable
3
MACHINERY BUSHING(10)
7556301
$3.19
3
MACHINERY BUSHING(10)
7556301
$3.19
3
MACHINERY BUSHING(10)
7556301
$3.19
3
MACHINERY BUSHING(10)
7556301
$3.19
4
ARM,F.TORQUE,BLK.
1540722-067
Unavailable
5
RETAINER-TOP
5220225
$10.39
6
NUT-LOCK(10)
7542439
$1.49
6
NUT-LOCK(10)
7542439
$1.49
6
NUT-LOCK(10)
7542439
$1.49
6
NUT-LOCK(10)
7542439
$1.49
7
BOLT(10)
7515415
$1.49
7
BOLT(10)
7515415
$1.49
7
BOLT(10)
7515415
$1.49
8
BOLT(10)
7515432
Unavailable
9
SHAFT,MOUNTING
5010149
Unavailable
10
SHOCK-SUSP
7041142
Unavailable
11
SPACER,SHOCK RETAINER(10)
5210953
$6.39
12
SPRING-SHOCK
7041127
Unavailable
13
SHIELD-SPRING
5430671
$24.27
14
BOLT(10)
7515438
$4.79
15
BUSHING,SUSPENSION
5010212
Unavailable
16
NUT-5/16-18 NYLOK-Y
7542324
$1.49
17
WASHER(10)
7555716
$1.59
17
WASHER(10)
7555716
$1.59
18
BOLT(10)
7515307
$3.99
19
STRAP, LIMITER
5410397
Unavailable
