TUNNEL ASSEMBLY SPORT SKS 0940243 (4925052505002A)

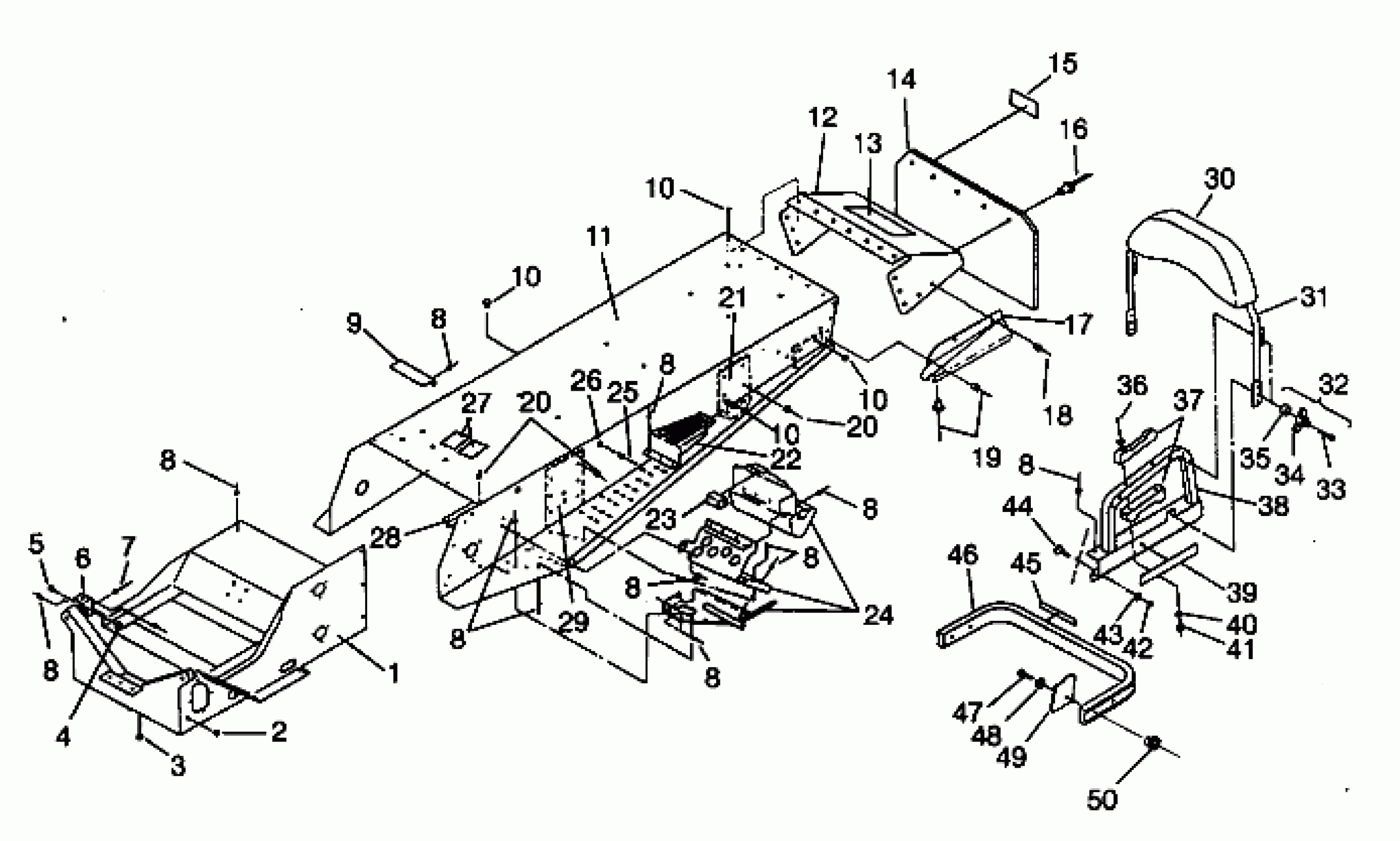

Polaris SPORT - 0940443 TUNNEL ASSEMBLY SPORT SKS 0940243 (4925052505002A) Diagram
#
1
BULKHEAD, (94 SPORT) Substituted by 1011976-067
1011976
Unavailable
2
PLUG, HOLE(10)
7080416
$5.65
3
PLUG-HOLE
7080398
$4.84
4
NUT LOCK(10)
7542321
$1.49
5
SCREW(10)
7512307
$3.99
6
Weld., Muffler Support (See Pg. 26, Ref. 18)
-------
Unavailable
7
RIVET(50)
7621452
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
BRKT, TOOL BOX
5220973
Unavailable
10
RIVET Substituted by 7661829
7661828
Unavailable
10
RIVET Substituted by 7661829
7661828
Unavailable
10
RIVET Substituted by 7661829
7661828
Unavailable
10
RIVET Substituted by 7661829
7661828
Unavailable
11
TUNNEL ASM, (SKS) (Incl. 12 21,28,29)
1011961
$366.65
12
PANEL,R.CLOSE-OFF ASM.
1011799
$32.95
13
DECAL,CLOSE-OFF,SPORT/SKS
7073973
Unavailable
14
FLAP, SNOW,SILVER Substituted by 5410394-1106 (Silver)
5410394
$121.02
15
DECAL,TRACK/SEAT(CPSC) (Black)
7074254
Unavailable
16
POP RIVET(50)
7621418
$1.49
17
SKIRT,LH,SNOW,BLK.
5431627-070
$26.98
17
SKIRT,RH,SNOW,BLK.
5431645-070
$31.35
18
RIVET,3/16X.402(50)
7621432
$1.49
19
RIVET(50)
7621472
$1.49
20
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
20
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
21
BRKT,RH.REAR SUSP.
1011906-067
Unavailable
21
BRKT,LH.REAR SUSP
1011905-067
Unavailable
22
FOOTREST,LH REAR
5220893
Unavailable
22
FOOTREST,RH REAR
5220894
$32.15
22
PAD,LH FOOT SAFETY
5830007
$7.89
22
PAD,RH FOOT SAFETY
5830008
$4.92
23
EXTRUSION,CLUTCHGUARD
5521238
$6.46
24
FOOTREST ASM,LH
1011890
Unavailable
24
FOOTREST ASM, RH
1011891
$164.79
25
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
26
SNAP-MALE(10)
7080227
Unavailable
27
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
28
BRACE,TUNNEL REINF.
5222412
Unavailable
29
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
30
COVER,B'REST(93TRLDLX)
2681630
$216.17
31
BACKREST ASM,COOL/SLATE
2681629
Unavailable
32
KNOB ASM,BACKREST
2670130
Unavailable
33
SCREW(10)
7515352
Unavailable
34
Knob, Backrest
5630386-067
$20.22
35
SPACER
5431285
Unavailable
36
SCREW(10)
7510504
$6.76
37
GRIP, HAND Substituted by 5433383
5431015
$19.68
38
BAR,GRAB,LH,BLK.
1011729-067
Unavailable
38
BAR,GRAB,RH,BLK.
1011730-067
Unavailable
39
REFLECTOR RED
2670070
$9.91
40
WASHER(10)
7555783
$3.99
41
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
42
NUT, NYLOK(10)
7542327
$4.79
43
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
44
BOLT(10) Substituted by 7512325
7515363
Unavailable
45
DECAL,R.BUMPER(94SPORT/SKS) [No Longer Available]
7073968
Unavailable
46
BUMPER,REAR,BLK. Substituted by 2670122
5224420-067
Unavailable
47
BOLT(10)
7512240
$3.99
48
LOCK WASHER(10)
7552801
$1.59
49
WASHER(10)
7558301
$1.49
50
RIVNUT(10)
7542130
$6.23
