SUSPENSION ASSEMBLY SPORT SKS 0940243 (4925052505021A)

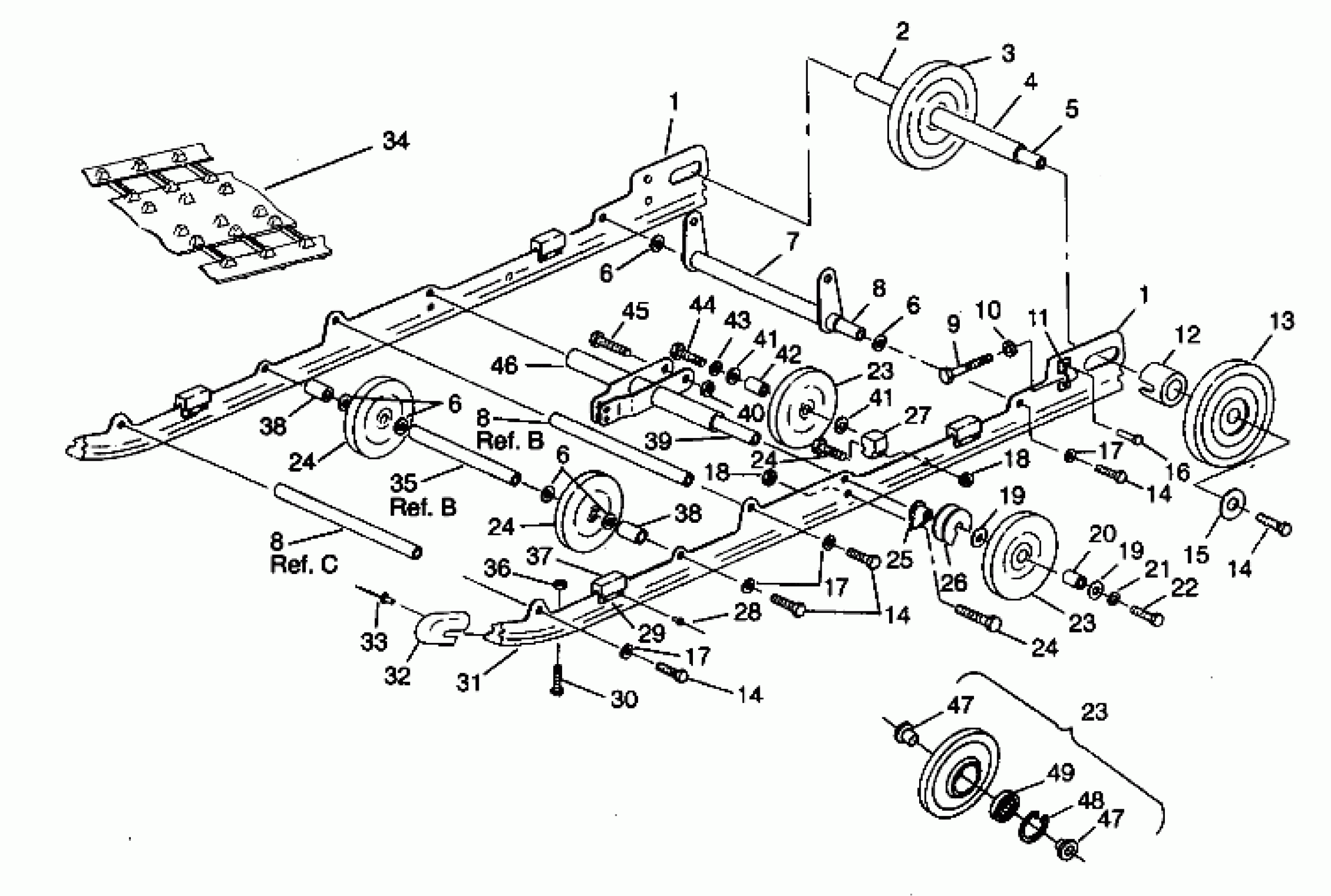

Polaris SPORT - 0940443 SUSPENSION ASSEMBLY SPORT SKS 0940243 (4925052505021A) Diagram
#
1
RAIL ASM, RH. (Incl.
1540742
$289.99
1
RAIL ASM, LH. (Incl.
1540741
$140.87
1
RAIL ASM, RH. (Incl.
1540742
$289.99
1
RAIL ASM, LH. (Incl.
1540741
$140.87
2
SPACER INNER IDLER
5010169
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SPACER,IDLER,R.INNER
5333086
Unavailable
5
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
7
ARM,R.PIVOT,BLK.
1540721-067
Unavailable
8
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
8
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
8
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
9
BOLT, ADJUSTER(10)
7515455
$29.99
10
NUT(10)
7542440
Unavailable
11
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
12
SPACER-IDLER-OUTER
5332641
Unavailable
13
WHEEL,IDLER,BLUE
1594038
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
15
WASHER FLAT(10)
7555732
Unavailable
16
RIVET,(50)
7621501
$2.39
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
18
NUT LOCK(10)
7542403
$3.99
18
NUT LOCK(10)
7542403
$3.99
19
WASHER, FLAT(10)
7555852
$2.39
19
WASHER, FLAT(10)
7555852
$2.39
20
SPACER, WHEEL
5333116
$7.99
21
WASHER LOCK(10)
7553101
$3.99
22
BOLT(10)
7512538
$6.39
23
WHEEL, IDLER (Incl. 47-49)
1543018
$56.65
23
WHEEL, IDLER (Incl. 47-49)
1543018
$56.65
23
WHEEL, IDLER (Incl. 47-49)
1543018
$56.65
24
BOLT(10)
7512404
$3.99
24
BOLT(10)
7512404
$3.99
24
BOLT(10)
7512404
$3.99
24
BOLT(10)
7512404
$3.99
25
SPACER
5630399
$11.99
26
ROLLER, SPRING
5431366
$10.51
27
BRACKET,BOGIE WHEEL
5130570
$48.56
28
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
29
REINF., BUMPER
5222629
$13.75
30
SCREW(10)
7512227
$3.19
31
SLIDER,BLK. Substituted by 5521320
5521296
Unavailable
32
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
33
RIVET(50)
7621435
$1.49
34
TRACK,MOLDED,133
5410727
Unavailable
35
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
36
NUT-LOCK(10)
7542122
$1.49
37
BUMPER, RAIL
5810554
$7.27
38
SPACER, OUTER
5332784
Unavailable
38
SPACER, OUTER
5332784
Unavailable
39
SHAFT,R.SHOCK BRKT.
5020649
Unavailable
40
NUT-LOCK(10)
7542439
$1.49
41
WASHER(10)
7555804
$3.99
41
WASHER(10)
7555804
$3.99
42
SPACER
5332786
$7.99
43
LOCK WASHER(10)
7553201
$3.99
44
BOLT(10)
7512659
$7.99
45
BOLT(10)
7515415
$1.49
46
MT.,R.SHOCK,BLK.
1011904-067
$15.67
47
INSERT, WHEEL,(10)
5431531
$9.70
47
INSERT, WHEEL,(10)
5431531
$9.70
48
RET.RING-TRUARC
7718407
$4.79
49
BEARING,CHAINCASE
3514305
$19.99
