SUSPENSION ASSEMBLY SPORT 0940443 (4925052505019A)

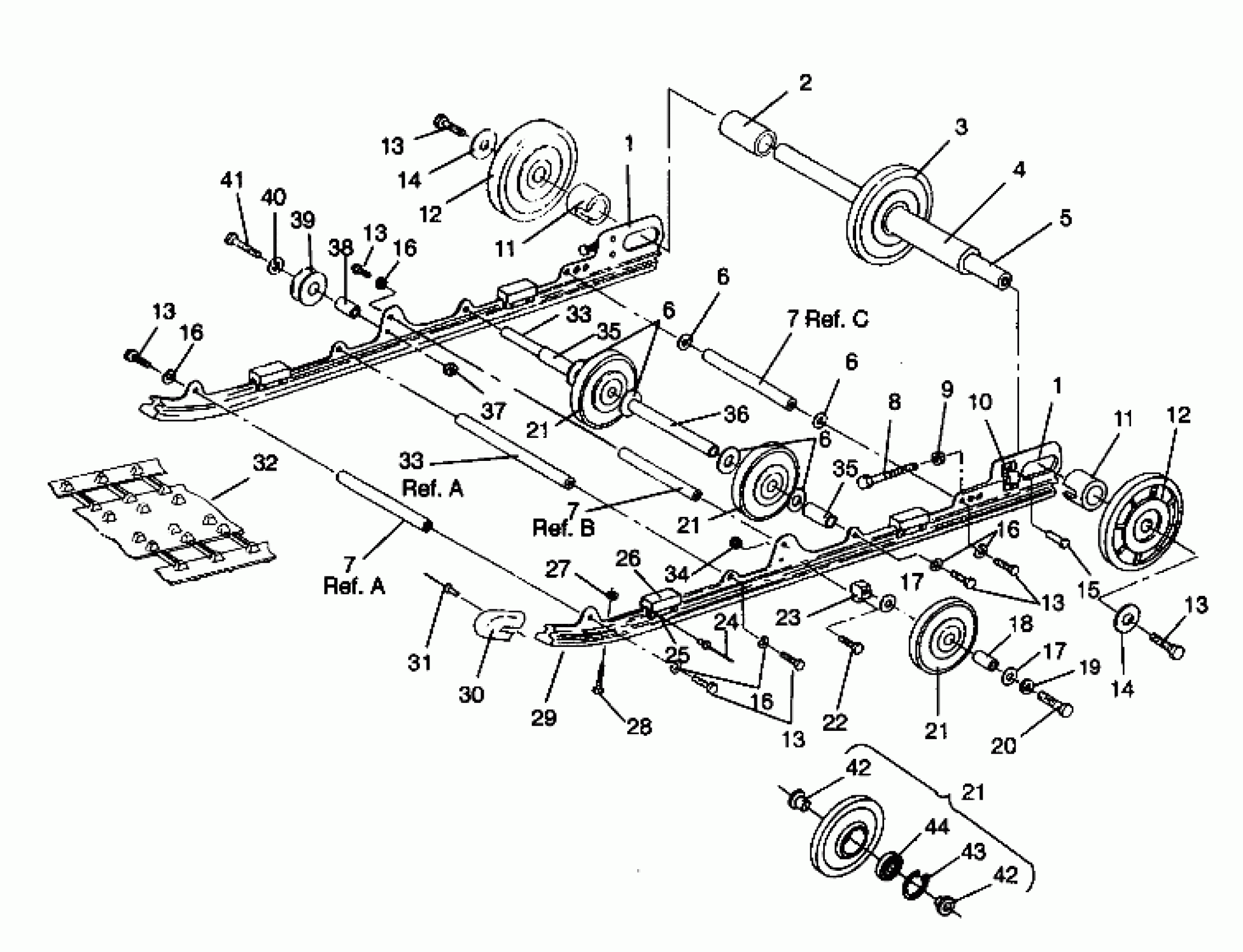

Polaris SPORT - 0940443 SUSPENSION ASSEMBLY SPORT 0940443 (4925052505019A) Diagram
#
1
RAIL ASM,RH, SILVER (Incl.10,25,30,26)
1540554
Unavailable
1
RAIL ASM, LH,SILVER (Incl.10,25,30,26)
1540553
Unavailable
1
RAIL ASM,RH, SILVER (Incl.10,25,30,26)
1540554
Unavailable
1
RAIL ASM, LH,SILVER (Incl.10,25,30,26)
1540553
Unavailable
2
SPACER INNER IDLER
5010169
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SPACER,IDLER,R.INNER
5333086
Unavailable
5
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
7
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
7
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
7
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
8
BOLT, ADJUSTER(10)
7515455
$29.99
9
NUT(10)
7542440
Unavailable
10
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
11
SPACER-IDLER-OUTER
5332641
Unavailable
11
SPACER-IDLER-OUTER
5332641
Unavailable
12
WHEEL,IDLER,BLUE (Blue)
1594038
Unavailable
12
WHEEL,IDLER,BLUE (Blue)
1594038
Unavailable
13
BOLT(10) Substituted by 7512492
7515458
Unavailable
13
BOLT(10) Substituted by 7512492
7515458
Unavailable
13
BOLT(10) Substituted by 7512492
7515458
Unavailable
13
BOLT(10) Substituted by 7512492
7515458
Unavailable
13
BOLT(10) Substituted by 7512492
7515458
Unavailable
13
BOLT(10) Substituted by 7512492
7515458
Unavailable
14
WASHER FLAT(10)
7555732
Unavailable
14
WASHER FLAT(10)
7555732
Unavailable
15
RIVET,(50)
7621501
$2.39
16
WASHER(10)
7552603
$1.49
16
WASHER(10)
7552603
$1.49
16
WASHER(10)
7552603
$1.49
16
WASHER(10)
7552603
$1.49
17
WASHER(10)
7555804
$3.99
17
WASHER(10)
7555804
$3.99
18
SPACER
5332786
$7.99
19
LOCK WASHER(10)
7553201
$3.99
20
BOLT(10)
7512659
$7.99
21
WHEEL, IDLER (Incl.42-44)
1543018
$56.65
21
WHEEL, IDLER (Incl.42-44)
1543018
$56.65
21
WHEEL, IDLER (Incl.42-44)
1543018
$56.65
21
WHEEL, IDLER (Incl.42-44)
1543018
$56.65
22
BOLT(10)
7512404
$3.99
23
BRACKET,BOGIE WHEEL
5130570
$48.56
24
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
25
REINF., BUMPER
5222629
$13.75
26
BUMPER, RAIL
5810554
$7.27
27
NUT-LOCK(10)
7542122
$1.49
28
SCREW(10)
7512227
$3.19
29
SLIDER,BLK. Substituted by 5521320
5521296
Unavailable
30
COVER-RAIL TIP
5430627
$32.37
31
RIVET(50)
7621435
$1.49
32
TRACK, BLOCK
5410736
Unavailable
33
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
33
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
34
NUT LOCK(10)
7542403
$3.99
35
SPACER, OUTER
5332784
Unavailable
35
SPACER, OUTER
5332784
Unavailable
36
TUBE, SUSPENSION
5332783
Unavailable
37
NUT-LOCK(10)
7542439
$1.49
38
Spacer
5332787
Unavailable
39
ROLLER-SPRING
5430540
Unavailable
40
WASHER(10)
7555743
Unavailable
41
BOLT Substituted by 7515491
7515433
$1.59
42
INSERT, WHEEL,(10)
5431531
$9.70
42
INSERT, WHEEL,(10)
5431531
$9.70
43
RET.RING-TRUARC
7718407
$4.79
44
BEARING,CHAINCASE
3514305
$19.99
