OIL TANK / AIR BOX ASSEMBLY SPORT 0940443 and SPORT SKS 0940243 (4925052505031A)

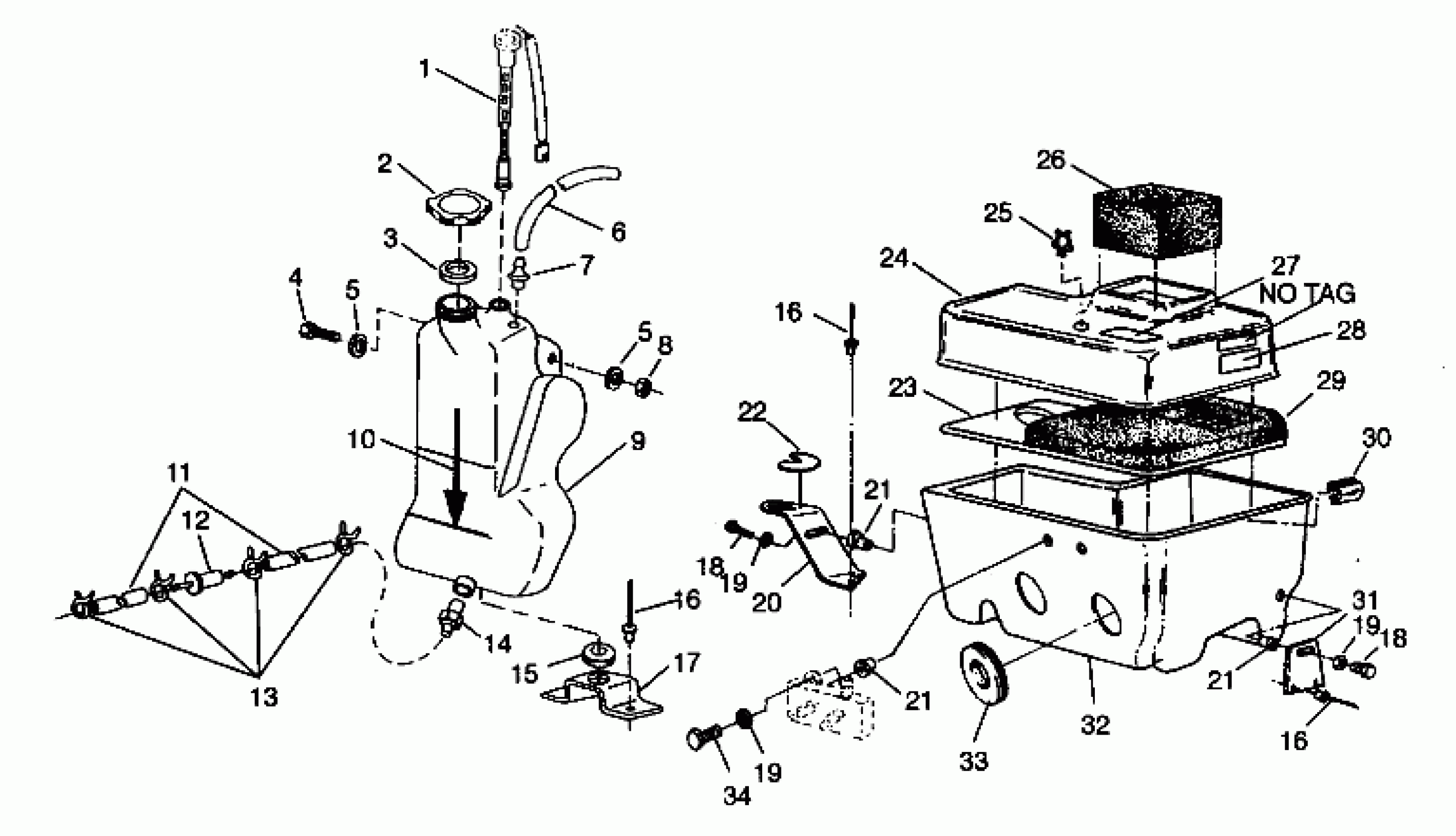

Polaris SPORT - 0940443 OIL TANK / AIR BOX ASSEMBLY SPORT 0940443 and SPORT SKS 0940243 (4925052505031A) Diagram
#
Description
Price
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512103
$3.19
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
7
FITTING,(10)
7052077
$6.39
8
Nut, Nylok
7542122
$1.49
9
Tank, Oil
5431437
Unavailable
10
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
11
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
12
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
13
CLAMP-HOSE, (LARGE GREEN) (Large)
7080307
$1.49
14
FITTING, OUTLET (Single)
7052042
$8.99
15
GROMMET RUBBER
5410021
Unavailable
16
RIVET-3/16-.090-.290
7661637
$1.49
16
RIVET-3/16-.090-.290
7661637
$1.49
16
RIVET-3/16-.090-.290
7661637
$1.49
17
BRACKET
5223985
Unavailable
18
SCREW(10)
7512279
$1.49
18
SCREW(10)
7512279
$1.49
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
20
BRKT,AIR SILENCER,BLK.
5223973-067
Unavailable
21
NUT-WELL(10)
7541923
$5.59
21
NUT-WELL(10)
7541923
$5.59
21
NUT-WELL(10)
7541923
$5.59
22
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
23
PLATE,AIR SILENCER
5850075
$24.27
24
COVER, SILENCER
5430920
$61.99
25
CLAMP,WIRE ROUTING(10)
7080409
$2.39
26
INTAKE ASM, FOAM
1253107
$36.41
27
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
28
DECAL, GREASING [No Longer Available]
7073426
$7.27
29
BAFFLE ASM.
1253102
$64.75
30
CLIP, AIR BOX,(10)
7670055
$7.99
31
BRACKET, SILENCER
5211274
$9.70
32
SILENCER,INTAKE
5431522
Unavailable
33
BOOT
5410403
$12.99
34
SCREW(10)
7512222
$2.39
